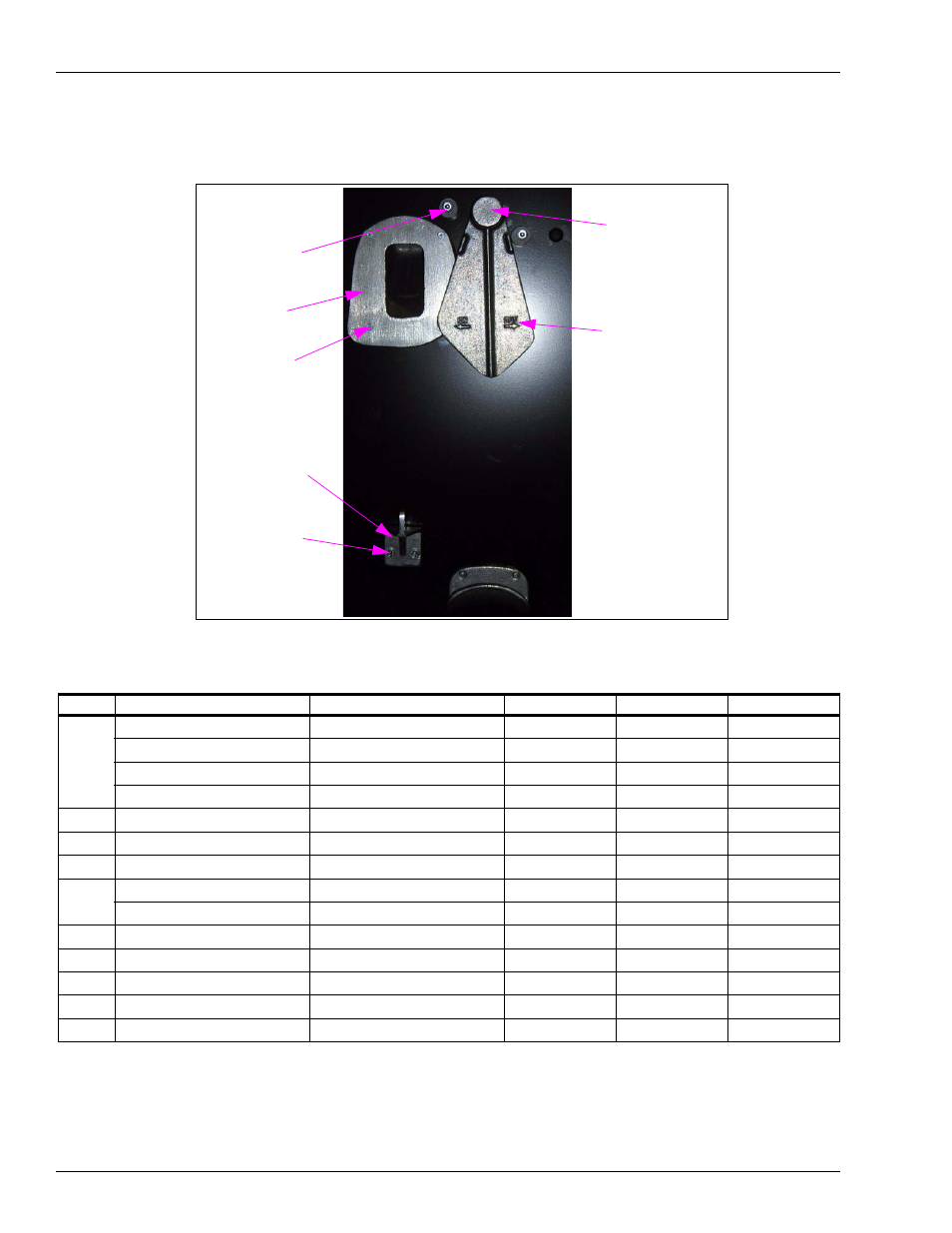

Nozzle Boots, Hose Hook, and Internal Hose Retrievers Side-load Electronic
Page 12 PT-1949D Gasboy Atlas™ Pump and Dispenser Illustrated Parts Manual · March 2010
Side-load Electronic
1, 2
3
6, 7
8, 9
4
7
5
Item # Part Description Used On Current Part Previous Part Quantity
1 Boot-Noz;98A,88B/D (MACH) STD Electronic 003338 - 1
Boot-Noz;88B/D VR (MACH) Electronic Vapor 003336 - 1
Nozzle Boot Machined STD Mechanical M05142B001 - 1
Boot, Nozzle Mechanical Vapor M05632B001 - 1
2 Gasket-Nozzle Boot All 026850 - 1
3 Screw TPT Phil FL HD 8-32 All Q13399-03 - 4
4 Nozzle Hook All M05574B001 - 1
5 Lever Cntl 8800B/D (MACH) Electronic 003347 - 1
Lever Cntrl (Plastic) 87E/ Mechanical 003354 - 1
6 Stop-eccentric Plastic All M07990B001 - 2
7 Screw SCK HD Cap Metric All M04973B006 - 4
8 Grommett, 1.500 OD X 0.875 All N15941-44 - 1
9 Pin Roll P/N SZ-125-1.375 All 042657 - 1
10 Plug Snap IN TW Fastex Electronic 047210 - 1
Refer to the following table for Side-load Boot Parts.
