CFT Meter Assembly
Meter, Pump, and Motor Section
Meter, Pump, and Motor Section
CFT Meter Assembly

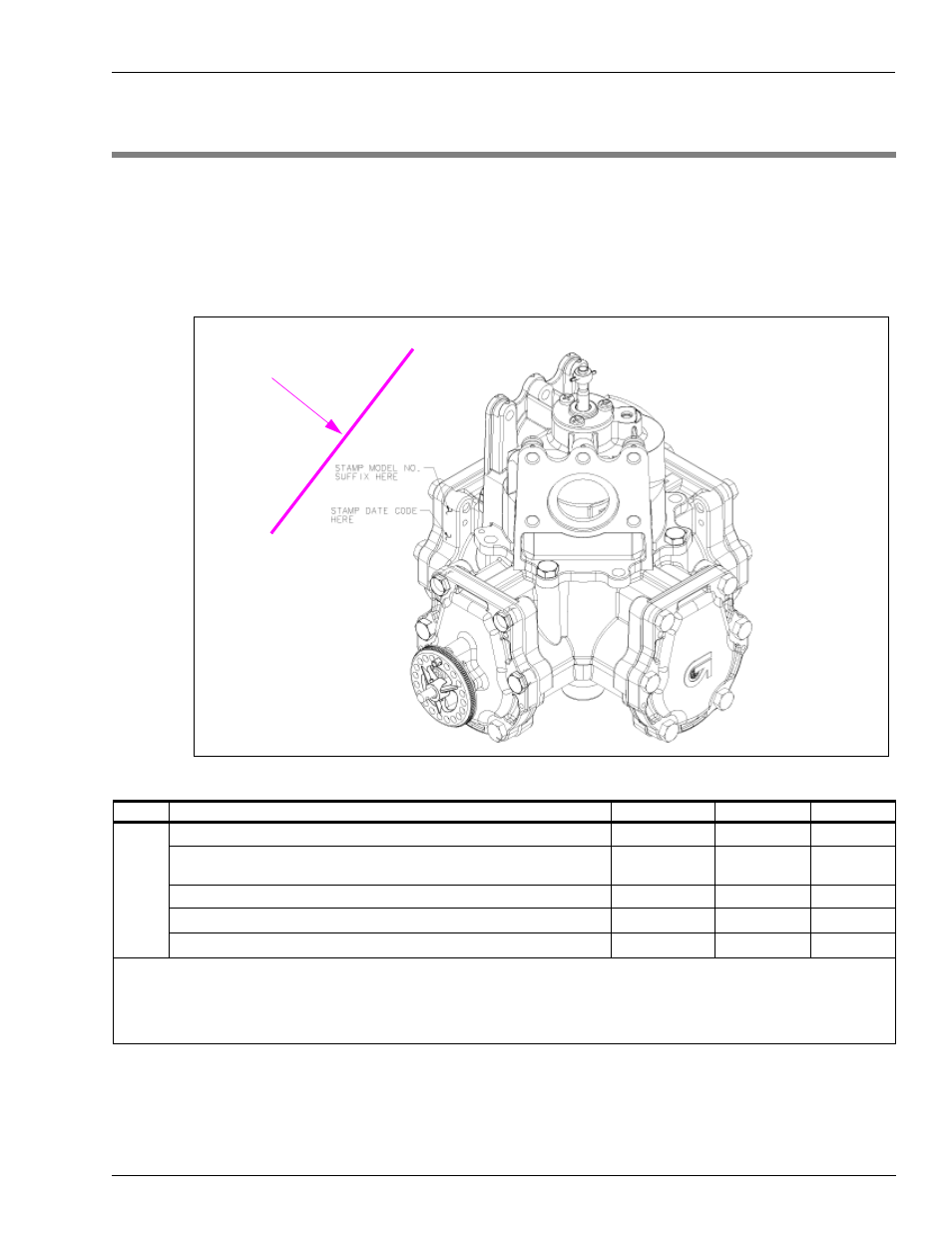

Assembled View of CFT Meter
1
Item #
Description
Current Part
Previous Part
Quantity
1
CFT Meter Assembly - Electronic Models (Spare Parts item)
T20150-G5
-
(See Note 1)
CFT Meter Assembly - Mechanical Computer Models, Gallons (Spare Parts
item)
T20150-G6
-
(See Note 1)
CFT Meter Assembly - Mechanical Computer Models, Liters (Spare Parts item)
T20150-G7
-
(See Note 1)
• Meter Master Seal Service Kit Installation {Reference Only}
K96618
-
(See Note 2)
• Meter Quad Ring Top Seal Replacement Kit {Reference Only}
K35222
-
(See Note 3)
Notes:
1. CFT Meter is ordered only as an assembly.
2. MDE-3892 provides information on how to install K96618 Meter Master Seal Service Kit.
Kit provides materials and instructions for complete changeout of all seals as a major rebuild.
3. MDE-2188 provides information on how to install K35222 Kit. Kit contains enough top seals to service (10) meters.
