Rear Panel Connectors MN-DT4500A
3–2

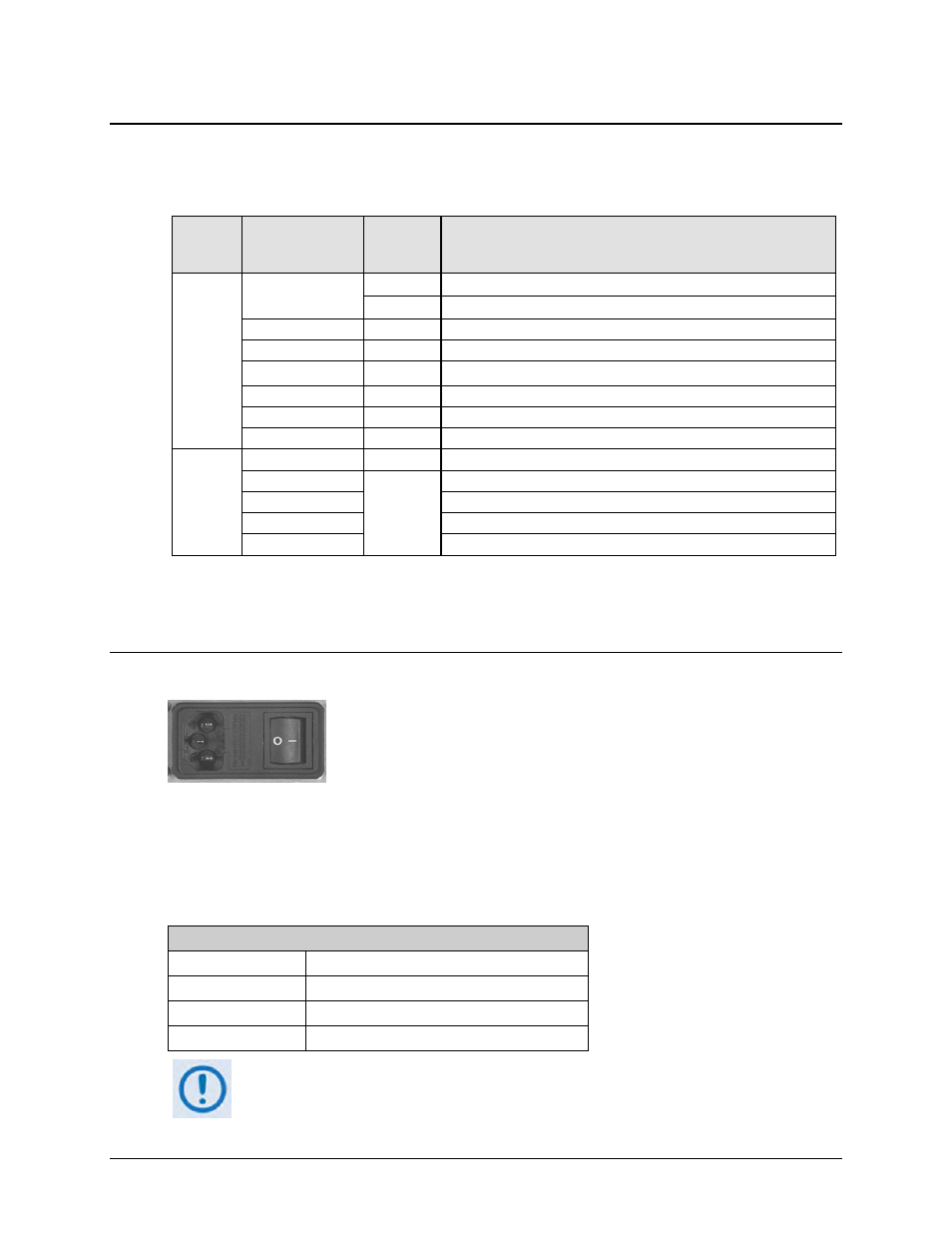

3.2 DT-4500-A External Connectors
Location
(Chapter
Sect.)
Ref Des /
Connector Name
Chapter
Subsect. Description
MAIN
CHASSIS
(3.2.1)
Prime Power
3.2.1.1 AC Prime Power Input (AC POWER)
3.2.1.2 Optional –48 VDC Prime Power Input (DC POWER)
J2A | REF IN 3.2.1.3 External Reference Oscillator Input
J2B | REF OUT 3.2.1.4 Optional External Reference Oscillator Output
Ethernet 3.2.1.5 100BASE-TX Ethernet Management port (Telnet, SNMP)
P1 | RELAY 3.2.1.6 Summary Fault Output
J1 | COM1 3.2.1.7 Serial Communications Interface for EIA-485/232 COMM links
Chassis Ground 3.2.1.8 #10-32UNC Stud
MODULE
(3.2.2)
J3 | HSB 3.2.2.1 High Speed Bus
J4 | IF
3.2.2.2
Converter IF Input
J6 | LP IN IF TSM Switching Loop Input
J8 | LP OUT IF TSM Switching Loop Output
J5 | RF Converter RF Output
3.2.1 Chassis-mounted Connectors
3.2.1.1 AC Power IEC Line Input Connector Module
The 3-prong IEC line input connector module (IEC-60320 style C14)
contains the ON/OFF switch for the unit. It is also fitted with two fuses,
one each for line and neutral connections (or L1, L2 where
appropriate). The fuses are contained in a fuse holder that is press-fit
into the body of the connector.
A standard, detachable, non-locking, 3-socket power cord (IEC-60320 style C13 plug) supplies
the Alternating Current (AC) power to the DT-4500-A.
Note the following:
AC Power Specifications
Input Power 75W maximum, less than 65W typical
Input Voltage 90-260VAC
Connector Type IEC-603320 Style C13/C14
Fuse Protection Use (2) T2.0A 20mm slow-blow fuses.
Table 3-1. DT-4500-A Rear Panel External Connections
For continued operator safety, always replace the fuses with the correct type
and rating.
