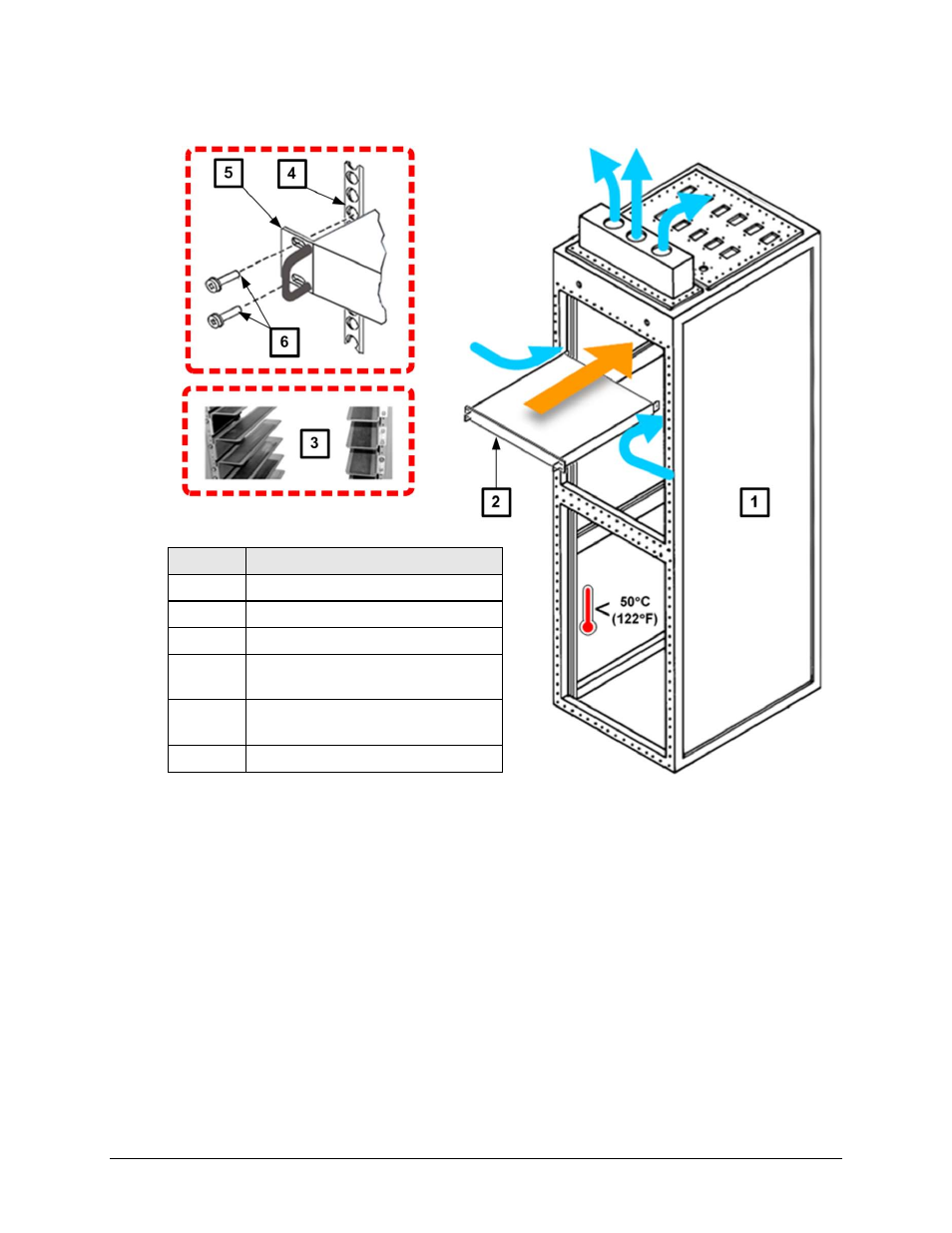

Figure 2-2. Installing into a Rack Enclosure
Mount the DT-4500-A in its assigned position in the rack enclosure. Use, as required:
• A standard rack-mounted shelf;
• User-supplied screws to secure the front panel to the rack enclosure threaded front
mounting rails;
• Comtech EF Data’s optional KT/6228-2 (4”) or KT/6228-3 (10”) Rear-Mounting Support
Brackets Kit (Figure 2-3).
• Comtech EF Data’s provided FP/SL0006 (26”) or FP/SL0008 (24”) Bearingless Rack Slide
Set (Figure 2-4).
Feature Description
1
Custom Rack Enclosure
2
DT-4500-A Series Downconverter
3
Standard Rack Shelving
4
Rack Enclosure Threaded Front
Mounting Rail (typical)
5
Unit Front Panel
6
User-supplied Screws
