DT-4500-A Series Downconverters Revision 1
Ethernet-based Remote Product Management MN-DT4500A
6–22
6.4.5.4 Status Pages
Use these pages to review operational statistics, status windows, and a logged fault table.
Click the Status tab, and then select Summary or Faults hyperlink to continue.
6.4.5.4.1 Status | Summary
Use this read-only page to review pertinent information about the configured setup of the
DT-4500-A, its current operating parameters, and the operational status of the unit.

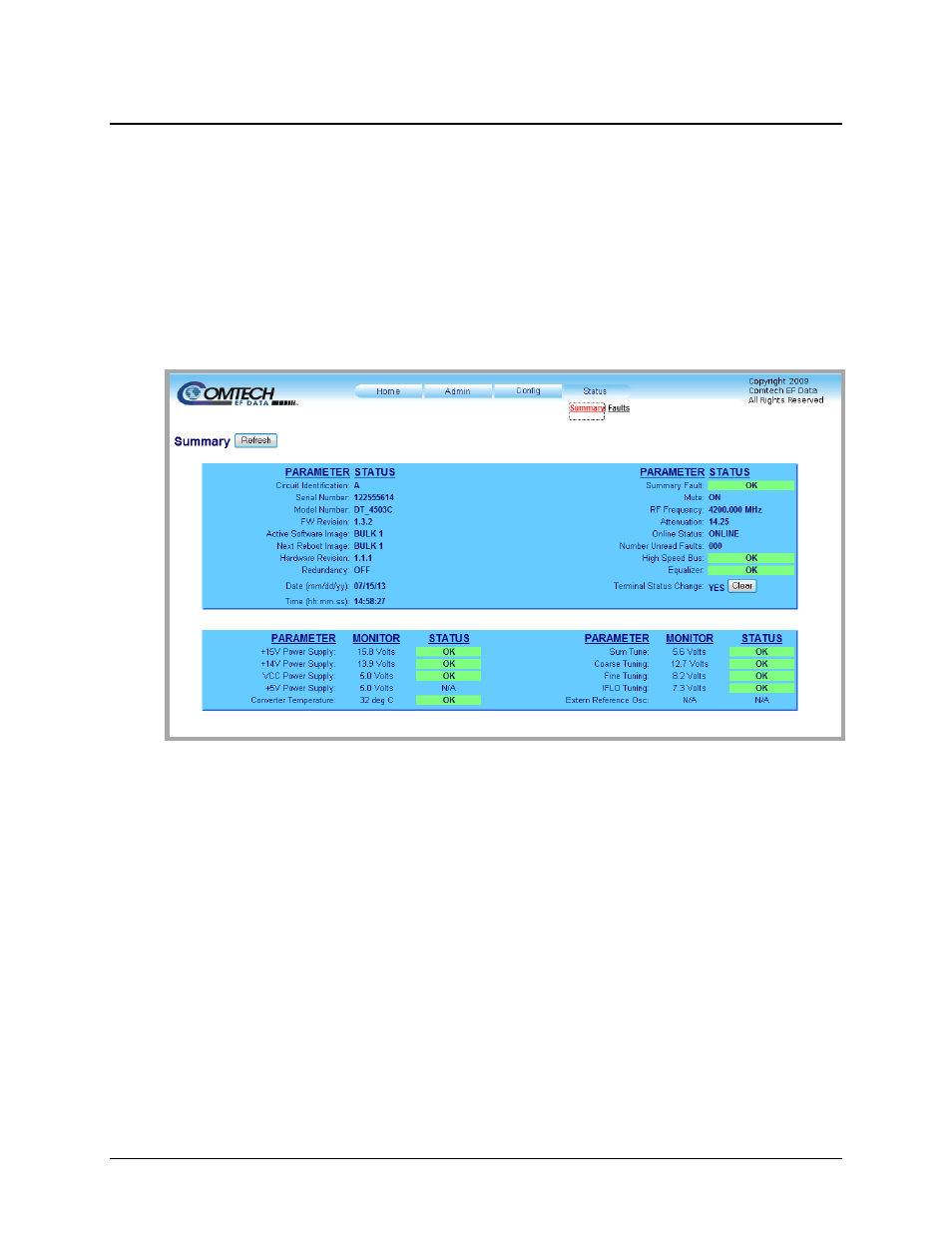

Figure 6-11. Status | Summary page
Click [Refresh] to update the page with its latest operating parameters.
Typical for all sections, when operating parameters are within acceptable limits for any item, the
STATUS indicates OK within a green box. If a fault condition exists, the message box changes to
red with the FAULT indicated accordingly.
Terminal Status Change will state YES if the unit identifies any configuration settings updates
since the last reboot. Click [Clear] to reset this monitoring feature (Terminal Status Change will
then state NO).
