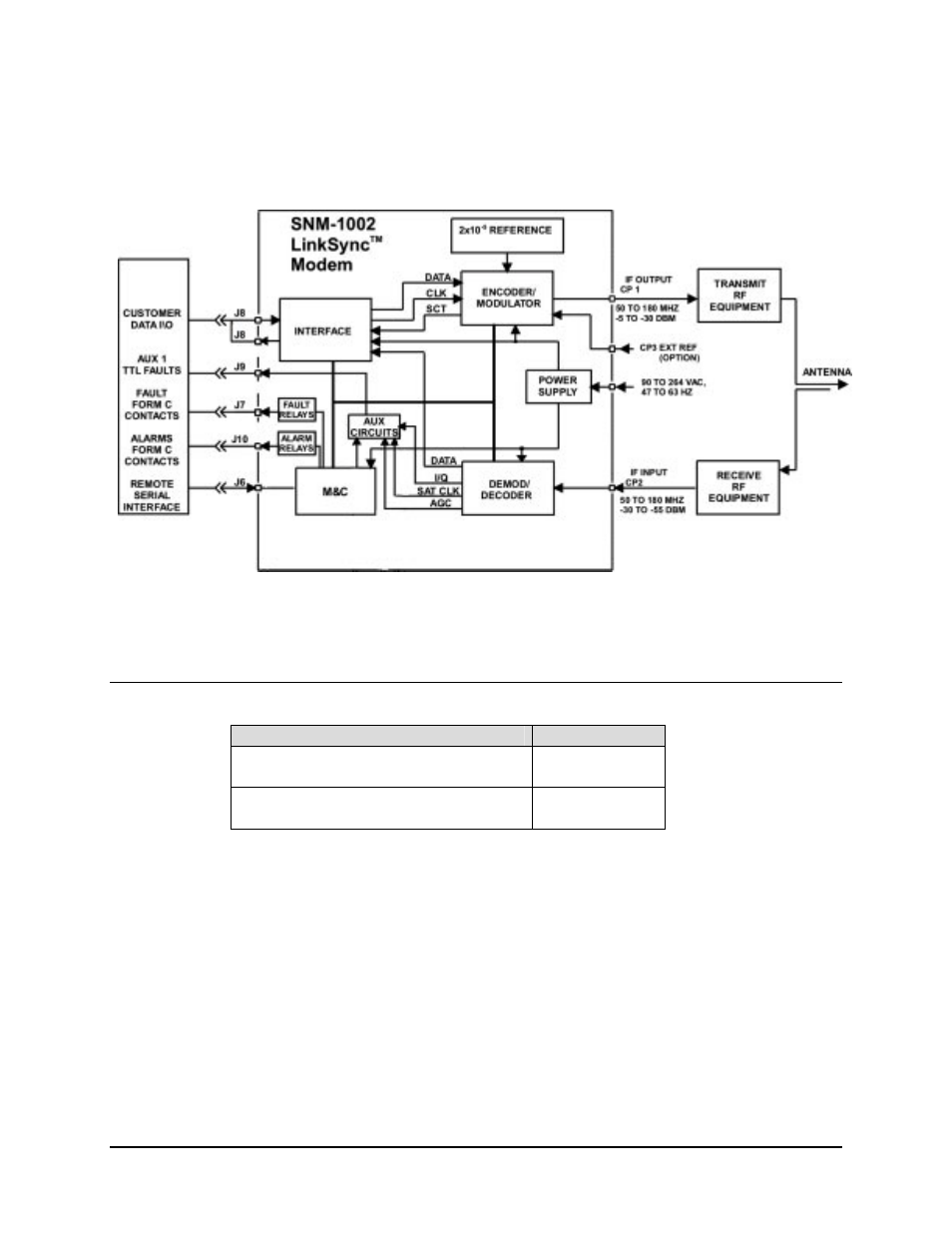

Refer to Figure 1-5 for a system block diagram.
Figure 1-5. Block Diagram
1.3 Options
Option Remarks
Primary Input Power: 90-264 VAC KT/8000-3
-48 VDC KT/8000-4
IF Impedance : 75
Ω
PL/6093-1
50
Ω
PL/6093-3
