Altera JNEye - Manual (Page 40)

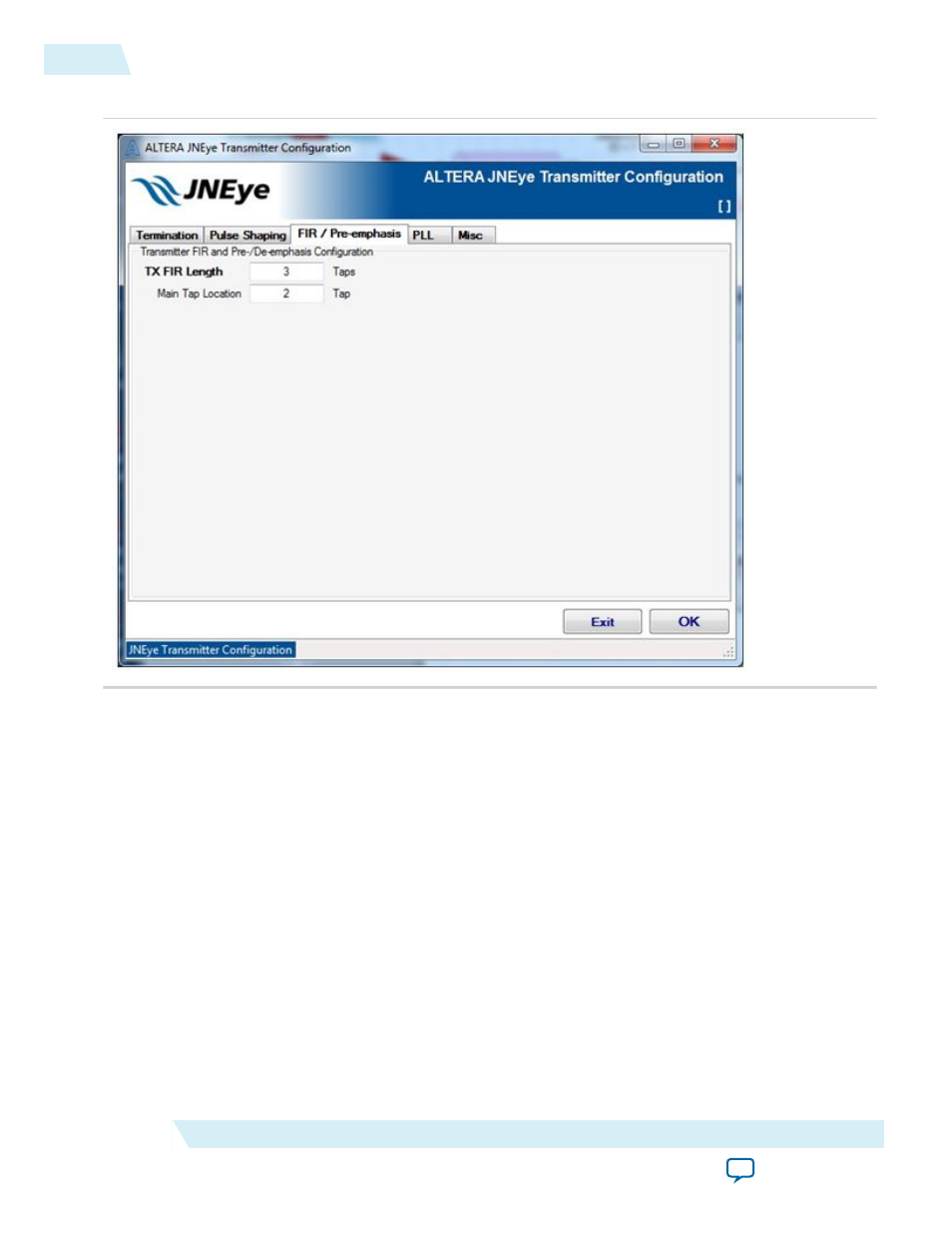

Figure 2-24: Transmitter Options: Transmitter FIR, Pre-emphasis, and De-emphasis Configuration
PLL tab
Use this panel to set the custom PLL divider ratio. This panel provides an alternative to JNEye’s automatic
divider ratio configuration. For example, Altera transmitters provide three programmable dividers: L, M,
and N. You can set the divider ratio manually. Refer to Altera transceiver documentation for PLL setting
recommendations.
Note: JNEye does not support the N divider.
