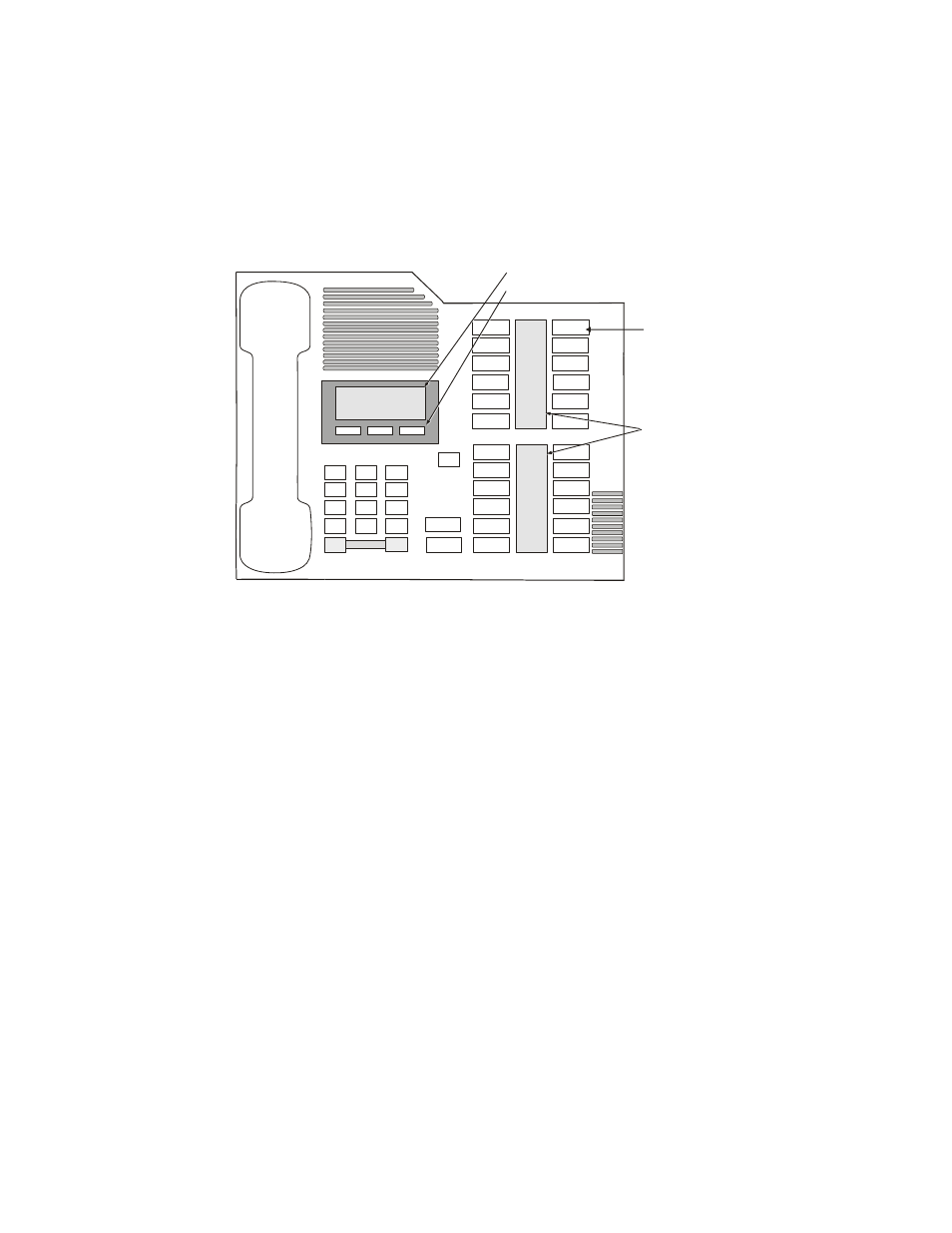

Figure 12. Nortel M7324 Telephone
4.5.4. Programmable Memory Keys
, the M7324 has 24 Programmable Memory Keys
located to the right of the display. These keys can be configured either during
PBX installation or by the user (using the telephone set or the Dialogic
®
PBX
Integration Board). The Line, Intercom, Answer, and Handsfree keys are
assigned during PBX configuration and cannot be user programmed. There is
an LCD indicator associated with each Memory Button. The LCD indicators
are triangular and can take on one of the six states listed in
