SETUP
2.3.4.3 Connecting the Pump
To connect the pump, follow these steps:
Retrieve the pump cable from inside the bay. The pump 1 connector is located in the
left side bay.

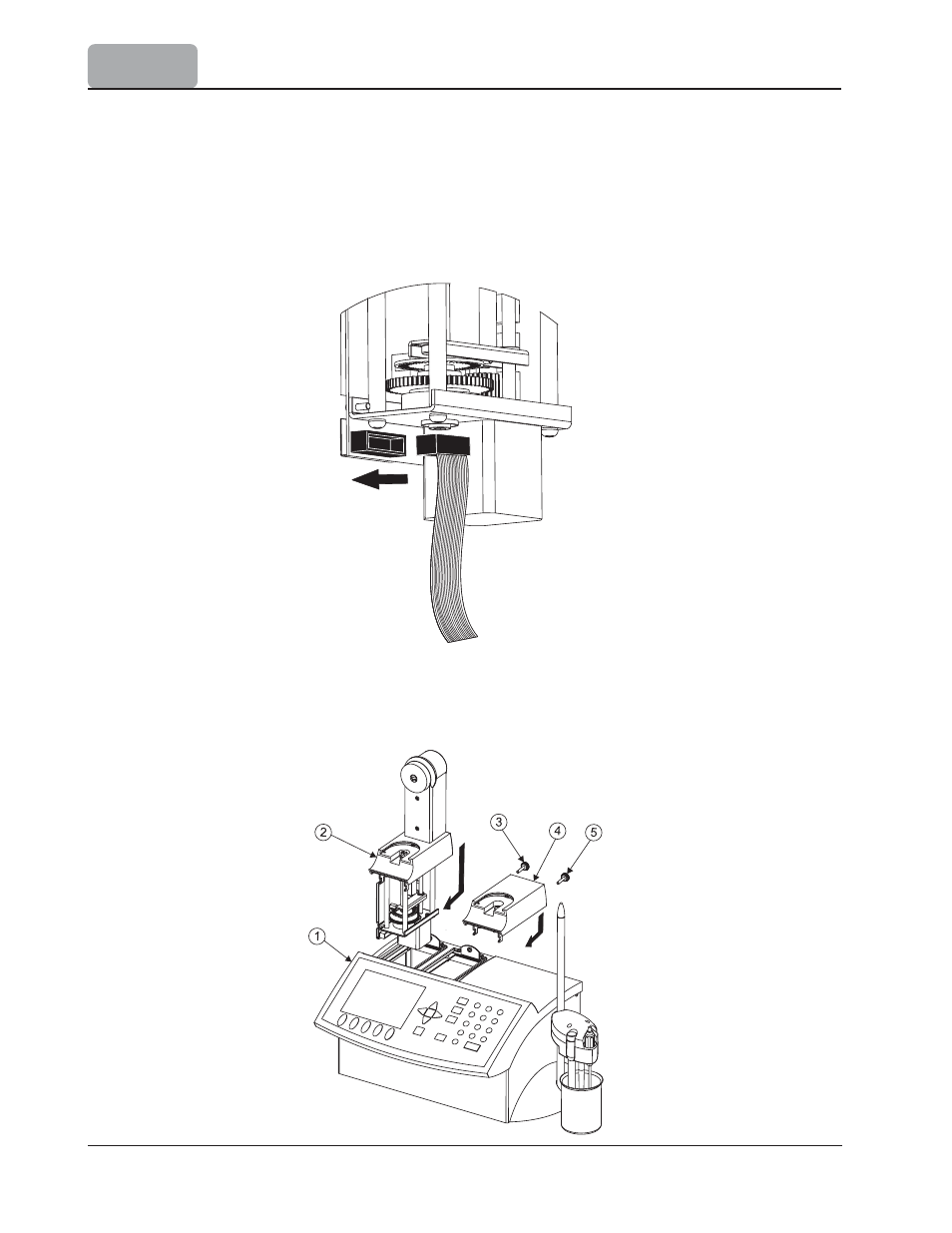

Connect the cable to the pump as shown in the figure below. The pump connector is
located in the lower part of the pump, near the motor.
Insert the pump (2) into the dedicated bay. Lower the pump until it reaches the
lowest position, then slide it towards the front of the titrator chassis (1) until it is
firmly latched.
Secure the pump with the loking screw (3).
