Hanna Instruments HI 901 - Manual (Page 13)

2-7
SETUP

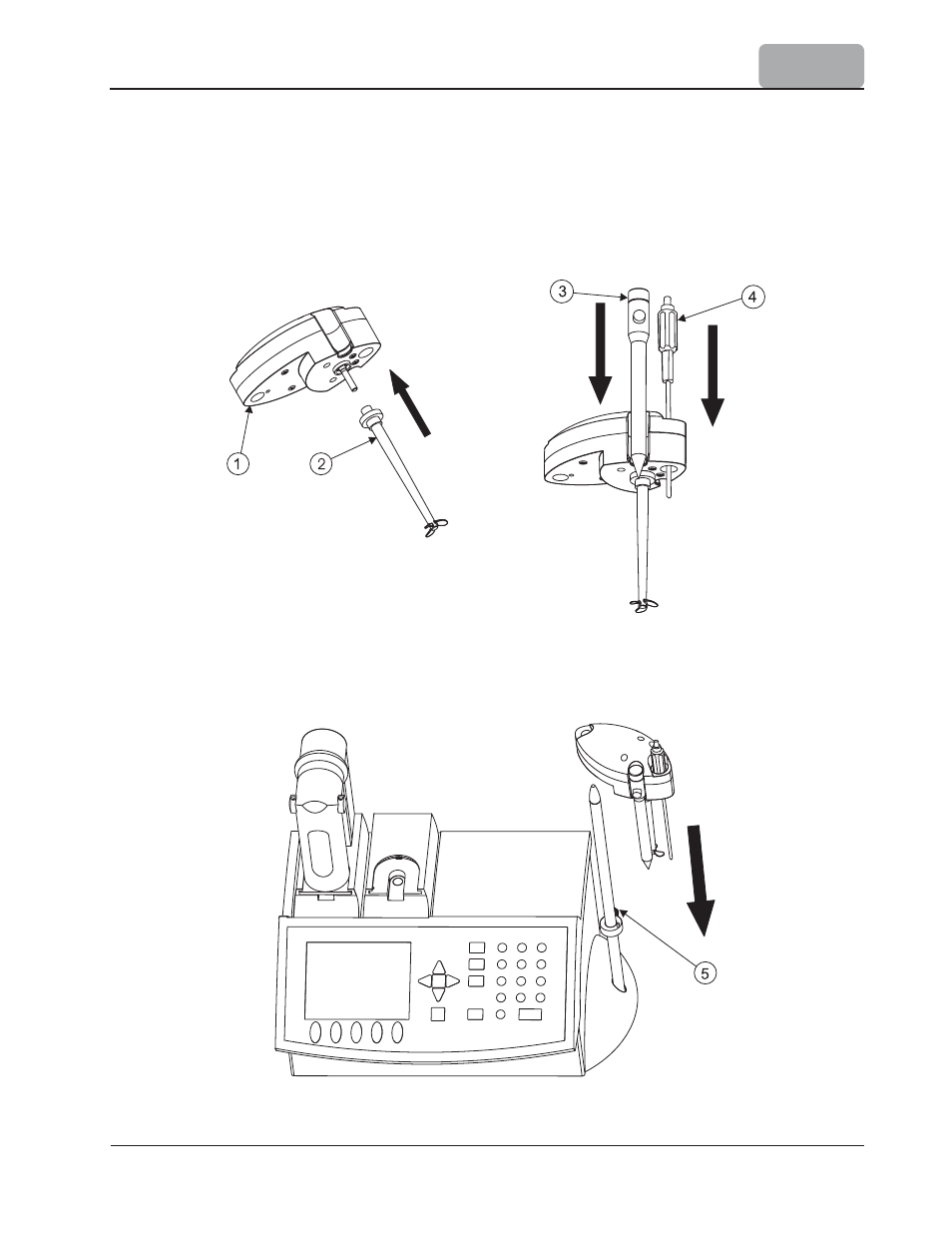

2.3.4.2 Attaching Stirrer
To attach the stirrer to titrator, follow these steps:
• Attach the propeller (2) to the stirrer (1) by pressing it onto the stirrer shaft.
• Insert the pH electrode (3) and temperature sensor (4) into the dedicated holes on
the stirrer. Push them in until they are tightened in a stable position.
• Slide the stirrer on the stirrer support and set the height by tightening the screw
located on the positioning collar (5).
