Upgrading the System Memory (RAM) 6 - 13
6
6. Gently pull the two release latches ( - ) on the sides of the memory socket in
the direction indicated by the arrows in Figure 6 - 12
7. The RAM module will pop-up, and you can remove it.
8. Pull the latches to release the second module if necessary.
9. Insert a new module holding it at about a 30° angle and fit the connectors firmly
into the memory socket.
10. The module’s pin alignment will allow it to only fit one way. Make sure the module
is seated as far into the socket as it will go. DO NOT FORCE the module; it should
fit without much pressure.
11. Press the module in and down towards the mainboard until the socket levers click
into place to secure the module.
12. Replace the keyboard plate, screws and keyboard.
13. Restart the computer to allow the BIOS will register the new memory configuration
as it starts up.

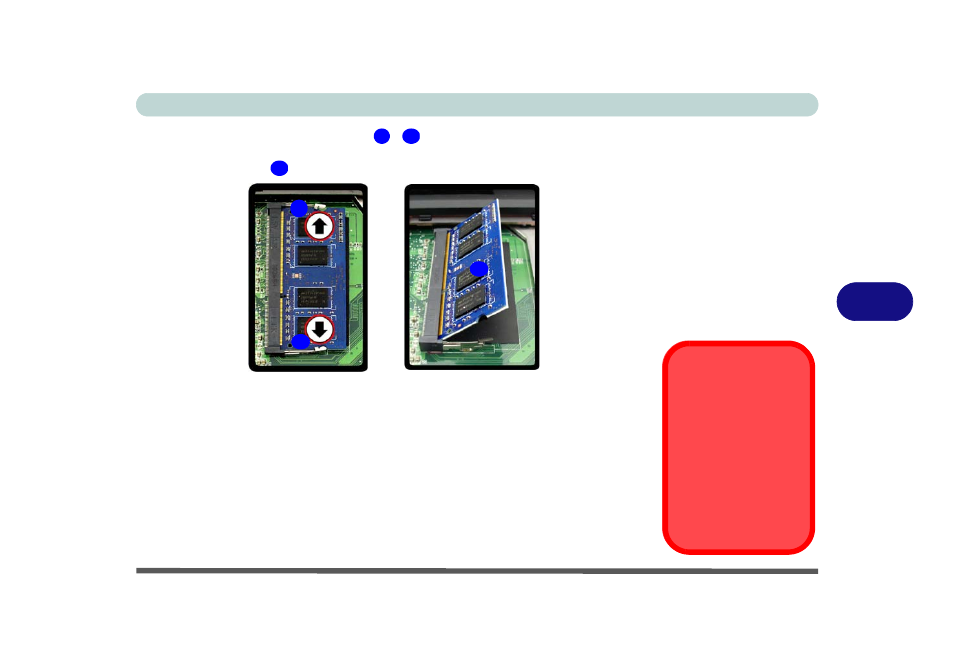

Figure 6 - 12
Third RAM Module
Removal
Contact Warning
Be careful not to touch
the metal pins on the
RAM module’s connect-
ing edge. Even the
cleanest hands have
oils which can attract
particles, and degrade
the module’s perfor-
mance.
