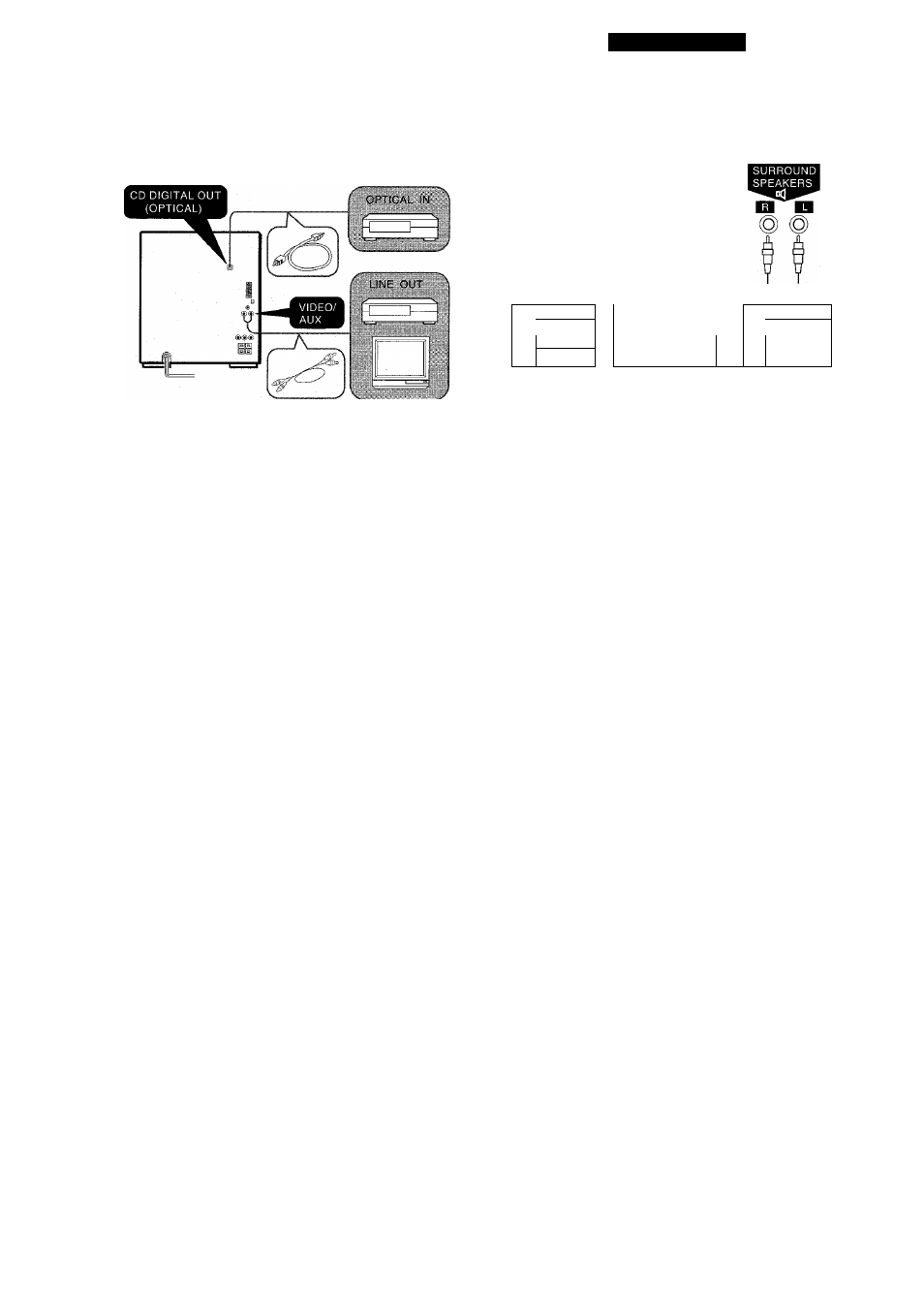

CONNECTING OPTIONAL EQUIPMENT □
VIDEO/AUX jacks
This unit can input the sound signai through the VIDEO/AUX jacks.
Use a cable with an RCA phono plug (not supplied) to connect
equipment (turntables, LD players without digital output connec­
tors, VCRs, etc.) for audio playback.
Connect the red plug to the R jack, and the white plug to the L jack
of the VIDEO/AUX jacks.
When connecting a turntable
Use turntable with a built-in equalizer amplifier (Aiwa PX-E850,
etc.).
CD DIGITAL OUT jack
This unit can output digital signal of CD through the CD DIGITAL
OUT jack.
Use an optical cable (not supplied) to output digital signals from this
unit to equipment such as DAT decks, a minidisc recorder, and
digital amplifiers.
Remove the dust cap from the CD DIGITAL OUT jack and connect
the optical cable to the jack.
CONNECTING SURROUND SPEAKERS
Connecting surround speakers increases the surround effect.
Connect the right and left surround speakers to the SURROUND
SPEAKERS jacks (R) and (L). -» □
• Set the surround speakers behind your listening area as shown
in illustration 0. (The iistening area is enciosed by the dotted
line.)
• The volume of the surround speakers is controlled by the VOL­
UME control on this unit.
• The surround effect will not be heard with monaural sources.
• Use surround speakers with an impedance of 16 ohms (Aiwa SX-
R220, etc.).
CONNECTING A SUPER WOOFER
14
Connecting a super woofer increases the realism of low-frequency
sounds.
Connect a super woofer speaker with a built-in amplifier to the
SUPER WOOFER terminal. Q
Refer to the operating manual of the connected speaker for details.
