CONNECTIONS

ANTENNA CONNECTIONS

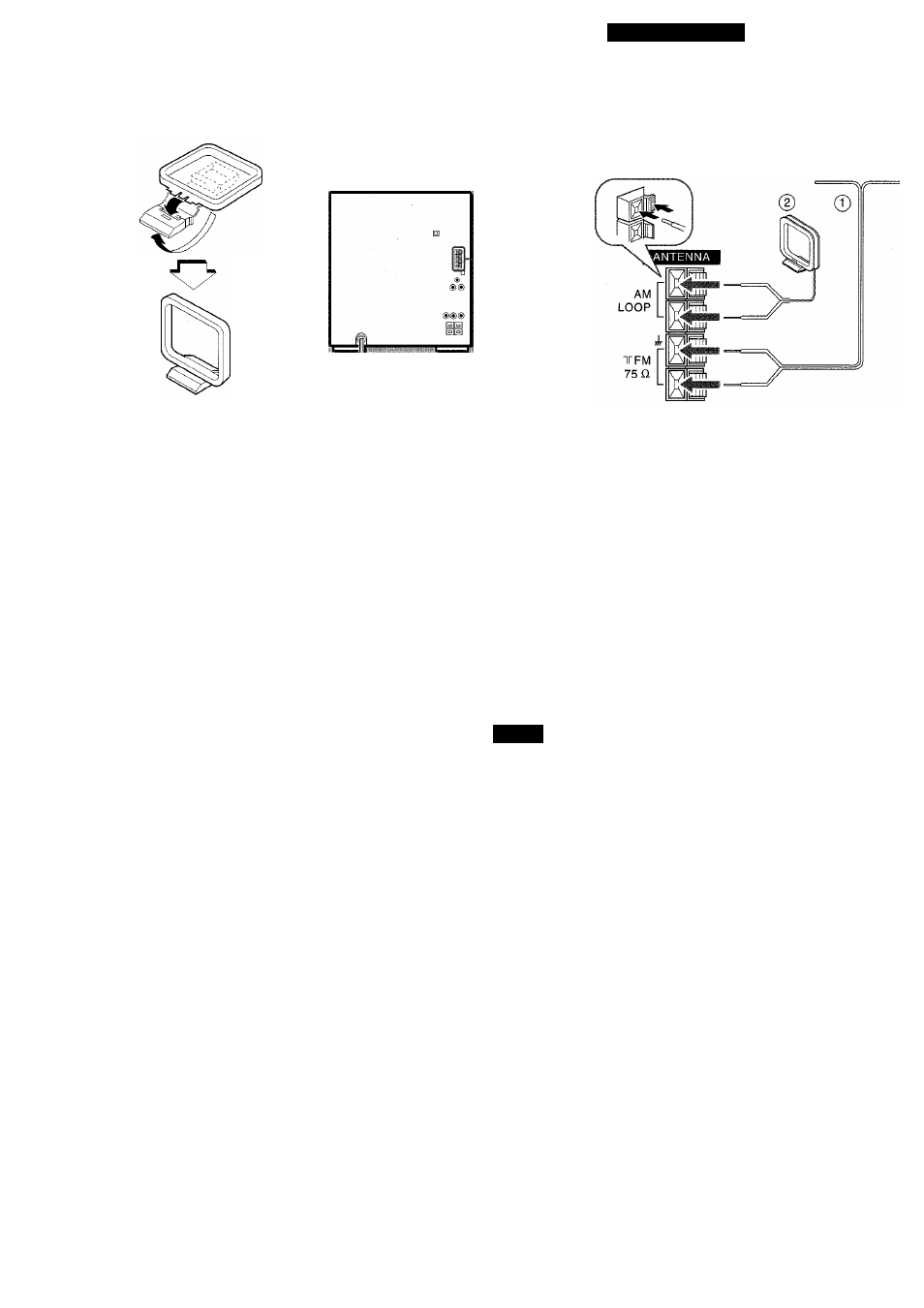

CONNECTING THE SUPPLIED ANTENNAS

Supplied antennas

AM antenna, FM feeder antenna

• AM antenna can be fixed. -> Q

Connection -»0
FM:

Connect the FM feeder antenna @ to the FM 75Q. terminals.

AM:

Connect the AM loop antenna (D to the AM LOOP terminals.

Positioning each antenna

• Extend the FM feeder antenna horizontally in a T-shape and

attach the ends to the wall with the cellophane tape.

• For AM reception, find the best position and fix this antenna

vertically.

NOTE

• Do not bring the end of the FM antenna near metal objects or

curtain rails.

• Do not unwind the AM loop antenna wire.
• Do not bring the AM loop antenna near a turntable system, CD

player, TV monitor, or the stereo system itself, or close to the AC

cord or speaker cords, since noise will be picked up.

CONNECTING AN OUTDOOR ANTENNA

For better FM reception, use of an outdoor antenna is recom

mended.

Connect the outdoor antenna to the FM 75ÌÌ terminals. -» Q
