Chapter 3. Development
Environment
58
Debug port is configured like below so that you must change serial port (connected with debug port)
configuration like bellow.
- Speed : 115200 bps
- Data bit : 8 bit
- Parity bit : Non Parity
- Stop bit : 1 bit
- Flow control : none

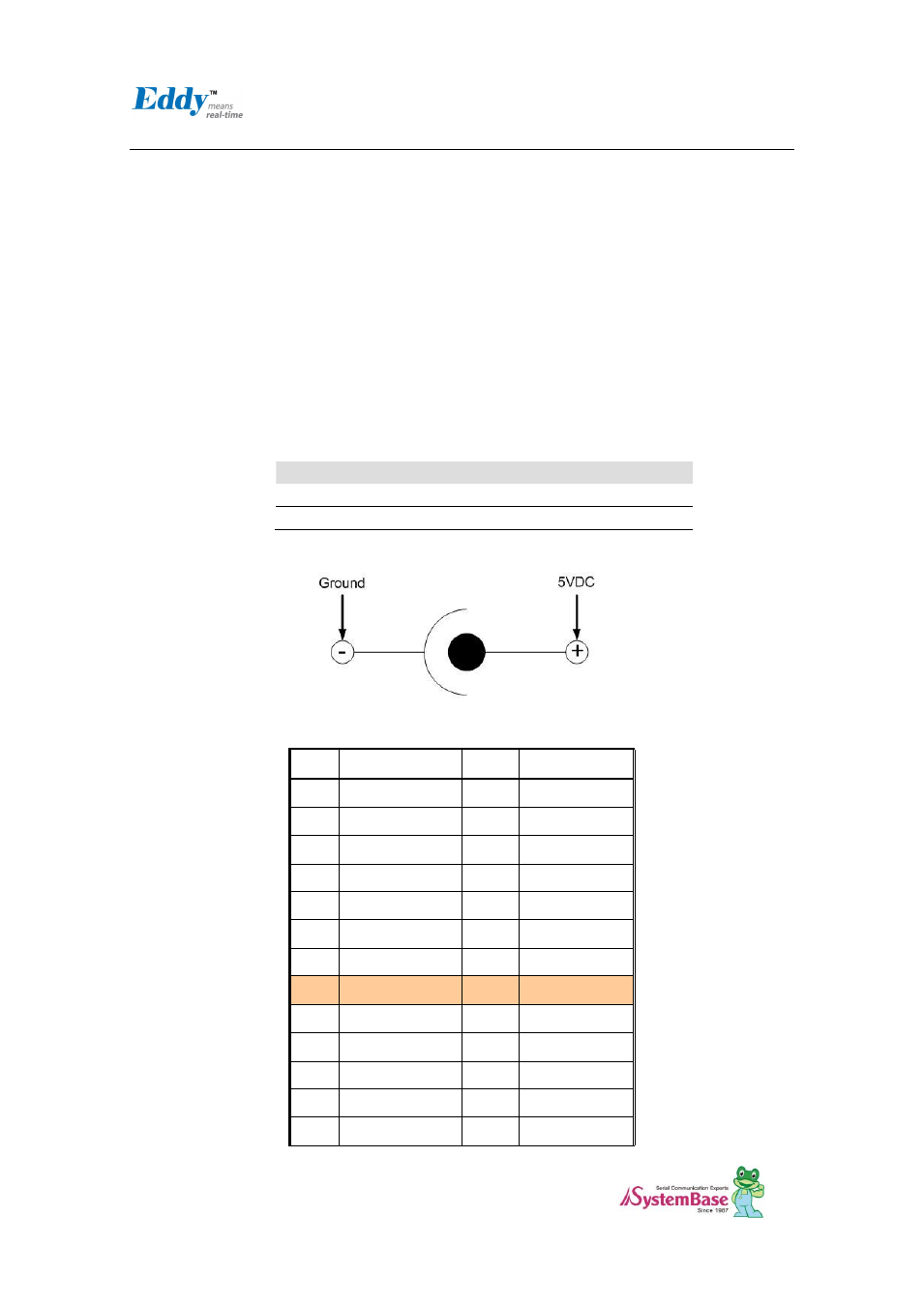

2.6.2.7. S1 : Power Jack
Contact Polarity
Center (D : 2mm) 5VDC
Outer (D: 6.5mm) Ground
GPIO Connector pinout
Pin Signal Pin Signal
1 PA5 2 PA22
3 PA30 4 NC
5 PB0 6 PB1
7 PB2 8 PB3
9 PB12 10 PB13
11 PB16 12 PB17
13 PB18 14 PB19
15 3.3V 16 3.3V
17 PB20 18 PB21
19 PB30 20 PB31
21 PC0 22 PC1
23 PC2 24 PC3
25 PC5 26 PC9
