Chapter
9. Appendix
114
9.2.3 Installing Eddy DK/S4M Board Driver
To detect the Eddy-DK/S4M-DK board via USB you need to install the Eddy-DK/S4M-DK board driver
for Windows as follows.
1) Turn off Eddy-DK/S4M board.
2) Connect USB cable to both the Eddy-DK/S4M-DK board and PC.
3) Set USB as a standby mode by pulling the right side switch down from the S6 dip
switch on the Eddy-DK board. (Eddy-S4M board  S1 dip switch)
Check Reboot now then click Finish.
After system reboot,
copy the‚isp-extram-at91sam9260.bin‛ file
from CD to the following directory:
C:\Program Files\ATMEL Corporation\
AT91-ISP v1.12\SAM-BA v2.8\lib\
AT91SAM9260-EK
After installing the ‚AT91-ISP.exe‛ file,
prepare to install the Eddy-DK/S4M-DK board driver.

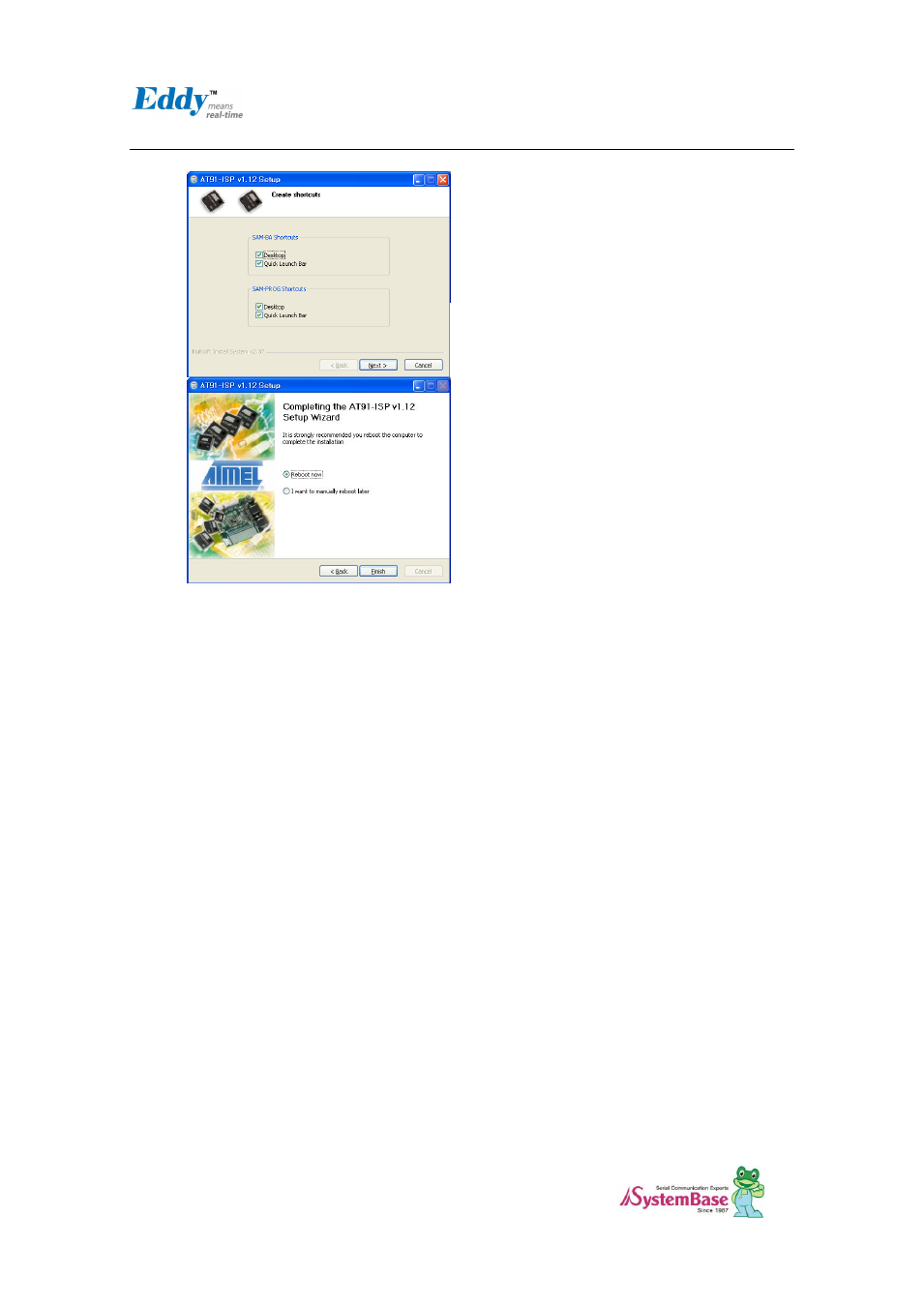

If you want to create Shortcuts,
check Desktop or Quick Launch Bar,
then click Next
