Solvline Eddy DKV2.1.0.3 - Manual (Page 38)

Chapter 3. Development
Environment
38
DS1340 Crystal Specifications
Parameter Symbol MIN TYP MAX Units
Normal Frequency fo 32.768 KHz
Series Resistance ESR 45,60 KΩ
Load Capacitance CL 12.5 pF

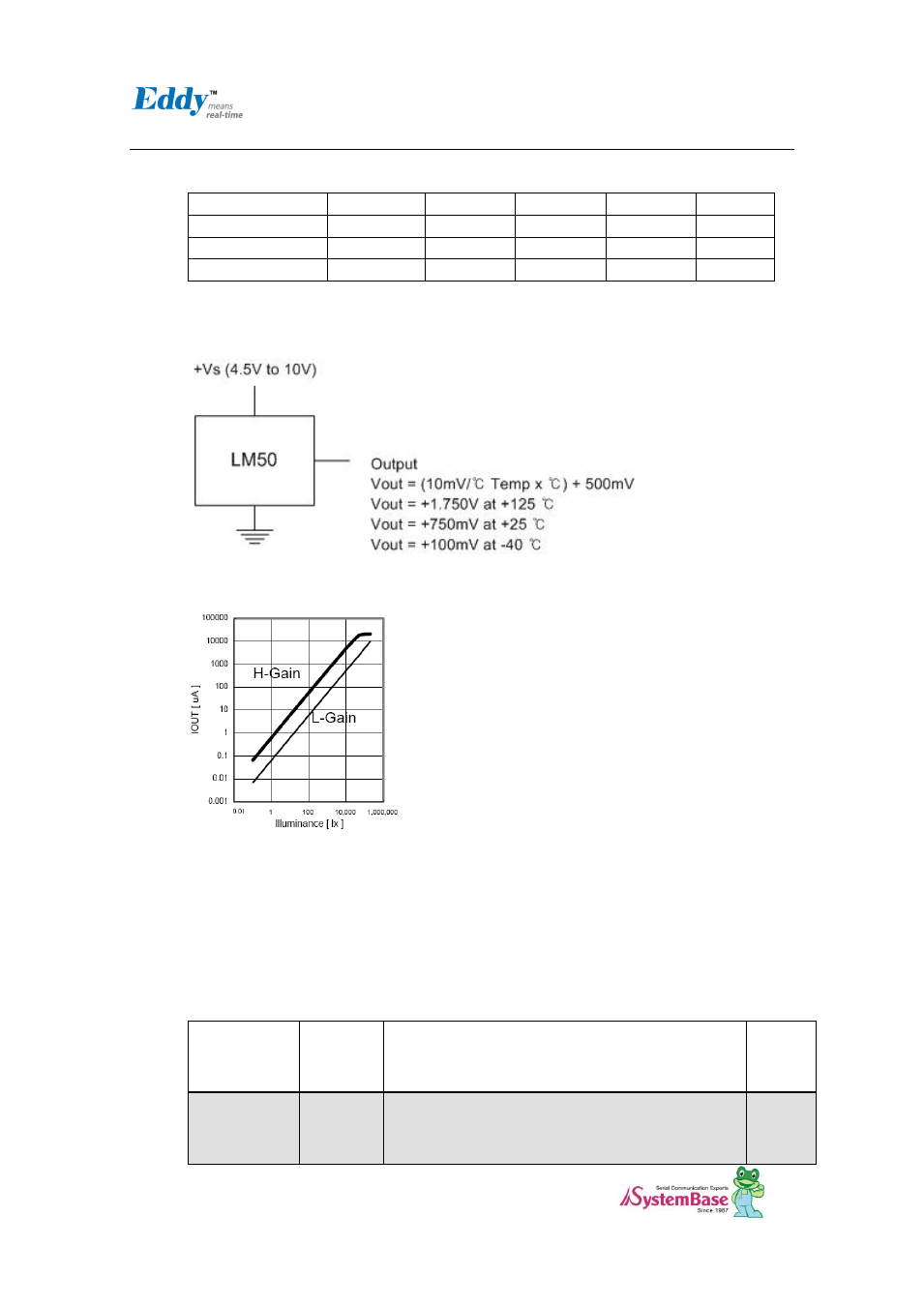

2.4.5.5. Temp Sensor
AD0(PC0)에 National LM50
2.4.5.6. Light Sensor
BH1600FVC (Rohm)
The Output voltage is caculated as below
Viout = 0.6 x10-6 x Ev x R1
Where, Viout = IOUT output voltage [V]
Ev = lilluminance of the ALS(Ambient Light Sensor) surface [lx]
R1 = IOUT output resistor [Ω]
2.4.5.7. NAND Flash
- 256MB, 8bit Flash (Samsung K9F2G08U0A-PCB0)
- Chip Select #3 used, Address range : 0x4000_0000~0x4FFF_FFFF.
Eddy-
CPUv2.1
Signal Name
Function Discription I/O
A22 CLE
COMMAND LATCH ENABLE
The CLE input controls the activating path for
commands sent to the command register.
OUT
