Chapter 3. Development
Environment
33

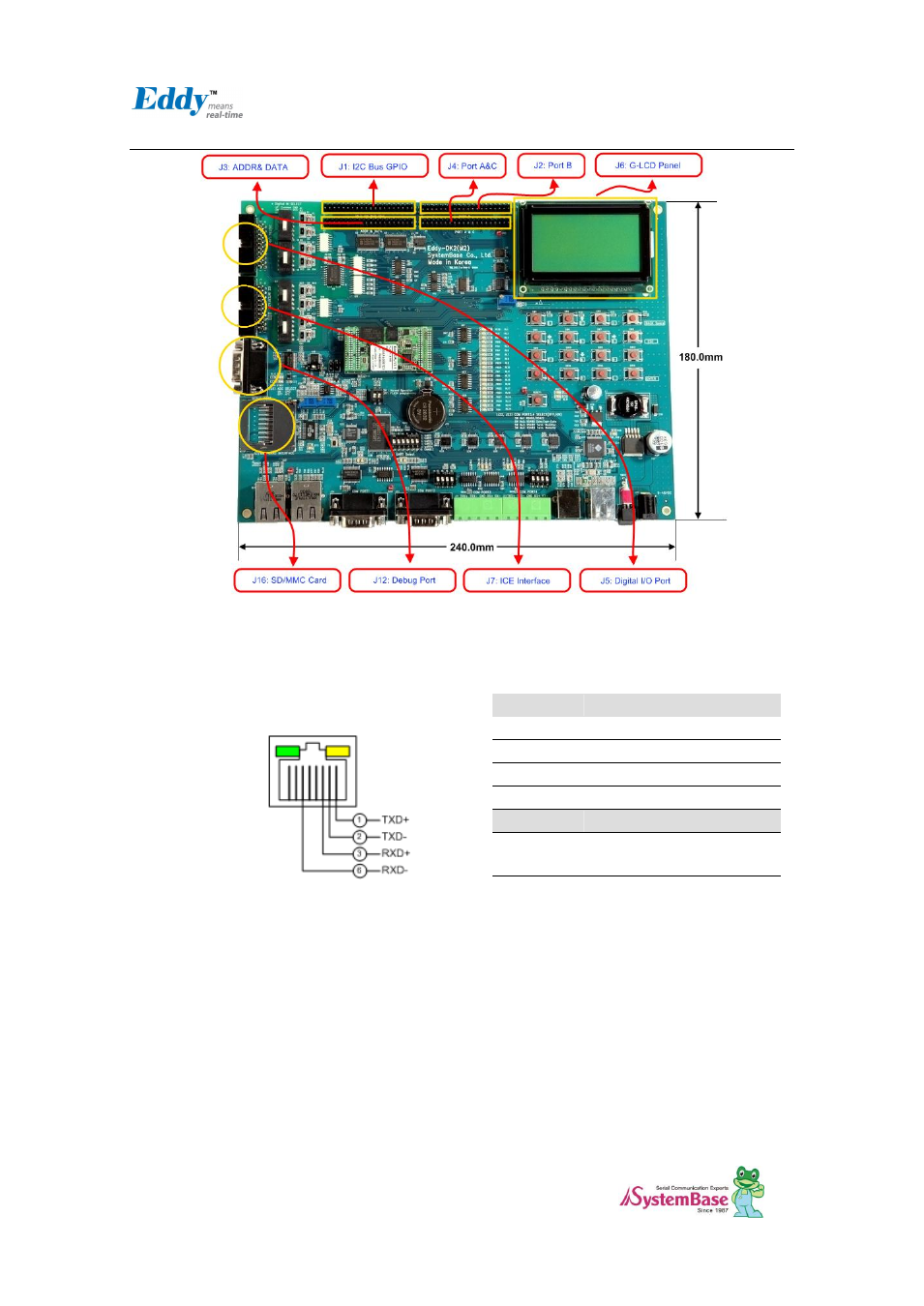

2.4.4.1. WAN & LAN Interface
WAN & LAN Port automatically recognizes Cross/ Direct.(auto MDIX)
Pin Signal Description
1 TXD+ Transmit Data +
2 TXD- Transmit Data -
3 RXD+ Receive Data +
6 RXD- Receive Data -
LED Description
Left Green
Upon 100BaseT link, it lights
Upon 10BaseT link, it off
Right Yellow
Default Lights, When the data
is sent or received, it blinks.
