Chapter 3. Development
Environment
55
33
PA22
GPIO Only
I/O
34
PA5
GPIO Only
I/O
PIO line has high-drive current capable so that can drive about 16mA except PC4-PC31(2mA).
(41.2 DC characteristics of CPU Datasheet, Refer to bellow)
AT91SAM9260 DC Characteristics
Symbol
Parameter
Conditions
Min
Typ
Max
Units
I
o
Output Current
PA0-PA31 PB0-PB31
PC0-PC3
16
PC4 - PC31 in 3.3V range
2*
mA
PC4 - PC31 in 1.8V range
4
* Since Eddy-S4M v2.1 is 3.3V range, PC4-PC31 PIO can drive 2mA.

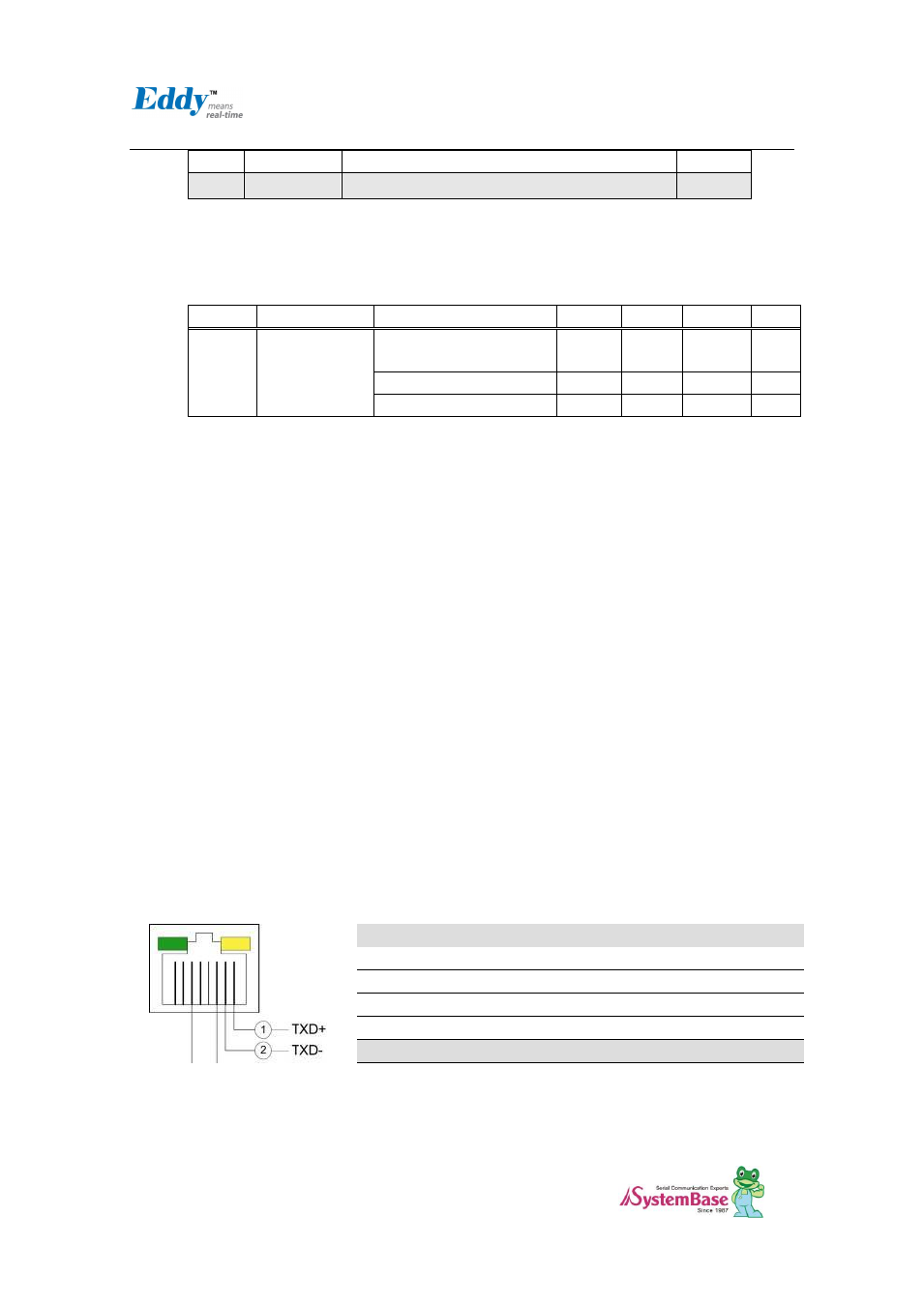

2.6.2.4. J10 : Ethernet
Since there is KSZ8041NL PHY in Eddy-S4M module, when integrating Ethernet, just connect
RJ45 in which transformer located
WARNING : When you use RJ45 which has transformer in its internal circuit, it is possible to
each product doesn’t have equal PIN spec. Therefore, you must confirm PIN number
Bellow is KSZ8041NL functions
• Fully compliant to IEEE 802.3u Standard
• Supports MDI/MDI-X auto crossover (Auto-MDI)
• MII interface support
• RMII interface support with external 50MHz system clock
• ESD rating (6kV)
• Built-in 1.8V regulator for core
• Available in 32-pin (5mm x 5mm) MLF
®
package
Pin
Signal
Description
1
TXD+ Physical transmit or receive signal (+ differential)
2
TXD- Physical transmit or receive signal (- differential)
3
RXD+ Physical transmit or receive signal (+ differential)
6
RXD- Physical transmit or receive signal (- differential)
LED
Description
