Reznor R8HE Unit Installation Manual - Manual (Page 27)

27
MODEL
NUMBER
R8HE / PPG3HE
UNIT
WEIGHT
SHIPPING
WEIGHT
CENTER OF GRAVITY UNIT DIMENSIONS (INCHES)
A B
HEIGHT WITH
BASE RAILS
HEIGHT WITHOUT
BASE RAILS
LENGTH WIDTH
SINGLE PHASE
MODELS
X24K060XA 380 410 26.5 26.5 35 31.3 55.8 47.5
X30K060XA 384 414 26.5 26.5 35 31.3 55.8 47.5
X36K080XA 391 417 26.5 26.5 35 31.3 55.8 47.5
X42K080XA 407 436 27.0 26.5 39 35.3 55.8 47.5
X48K096XA 455 482 27.5 26.5 43 39.3 55.8 47.5
X60K096XA 485 510 28.0 26.5 47 43.3 55.8 47.5
3-PHASE
MODELS
R8HE-X36C080X 391 417 26.5 26.5 35 31.3 55.8 47.5
R8HE-X36D080X 408 434 26.0 27.0 35 31.3 55.8 47.5
R8HE-X48C096X 455 482 27.5 26.5 43 39.3 55.8 47.5
R8HE-X48D096X 472 499 27.0 27.0 43 39.3 55.8 47.5
R8HE-X60C096X 485 510 28.0 26.5 47 43.3 55.8 47.5
R8HE-X60D096X 502 527 27.5 27.0 47 43.3 55.8 47.5

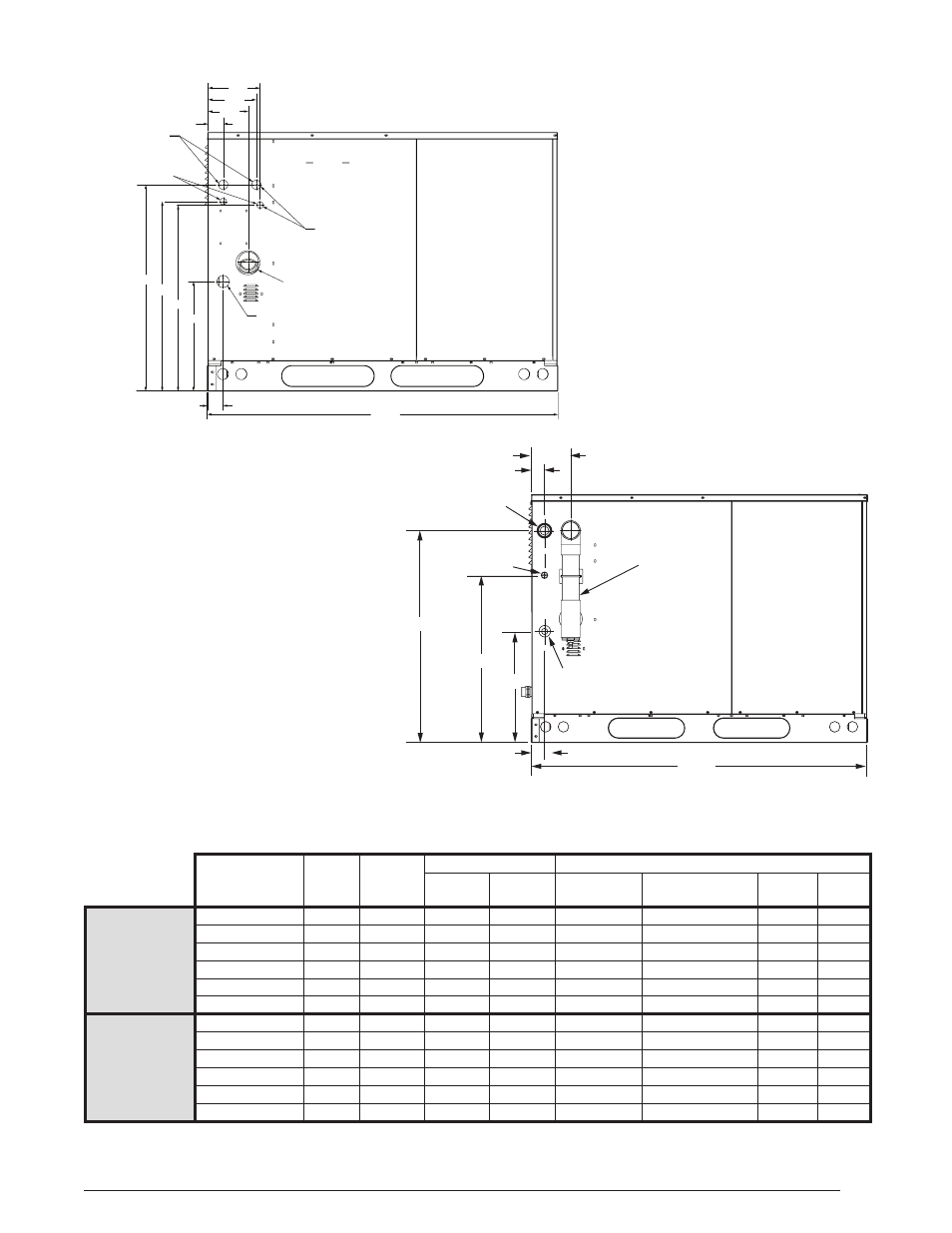

Table 7. Center of Gravity & Shipping Weights
47.50
ELECTRIC SUPPLY
ENTRY (1.25” DIA.)
LOW VOLTAGE
ENTRY (0.875” DIA.)
GAS
SUPPLY
ENTRY
14.82
25.65
28
2.03
2.03
BLOWER
ACCESS
5.40
CONDENSATE
DRAIN AND
VENT ASSEMBLY
(HORIZONTAL APPLICATION)
SIDE VIEW
3-PHASE MODELS
28
25.65
14.82
2.03
5.40
6.53
7.03
25.15
2.03
47.50
GAS SUPPLY ENTRY
LOW VOLTAGE
ENTRY (0.875” DIA.)
ELECTRIC SUPPLY
ENTRY (1.25” DIA.)
VENT ASSEMBLY
(DOWNFLOW APPLICATION)
BLOWER
ACCESS
3 TON, 3 PHASE
MODEL ONLY
SIDE VIEW
SINGLE PHASE MODELS
Figure 8. Continued
