Form I-RPB, P/N 131782 R12, Page 11

Oval Adapter Assy,

PN/ 103025

Venter Seal Plate,

P/N 43446

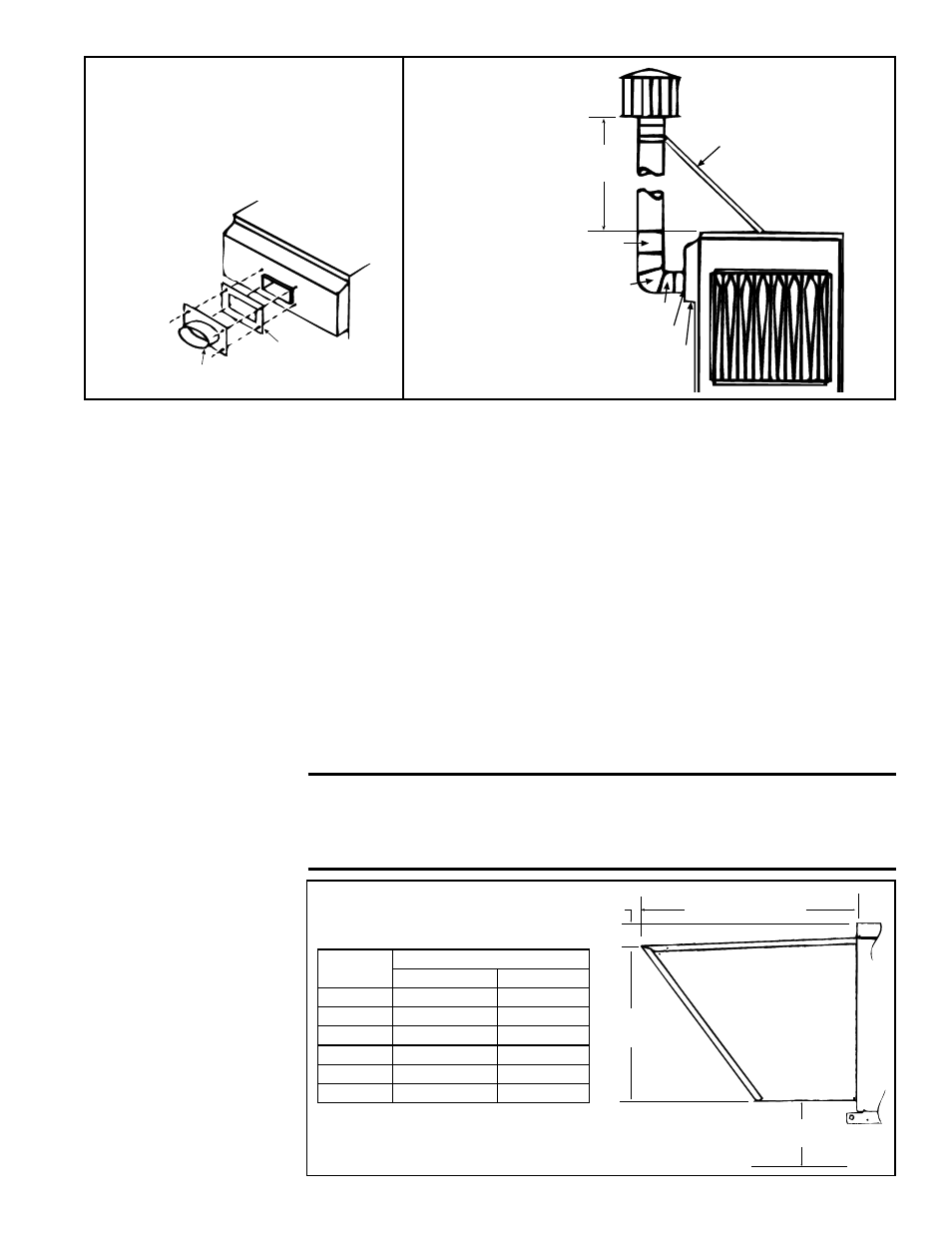

FIGURE 6A - Installation of Adapter

for Optional Vertical Flue Discharge

(Option CC3, P/N 45021)

Attach the venter seal plate and oval

adapter assembly with sheetmetal screws.

Use venter seal plate as drill template.

5” Vent Cap,

P/N 110052

5” dia Flue Pipe

(1.2M)

5” dia

90° Elbow

18” (457mm) Straight Pipe

Oval Adapter Assy

Combustion Air Intake

Support angles for flue pipe.

Recommended size is

1/2”x1/2”, 20 gauge

FIGURE 6B -

Installation of

the Vent Cap

(included in the

option pkg) and

the field-supplied

piping and

supports

6.3 Unit Inlet Air

Depending on how the unit was ordered, the blower cabinet can have a variety of

outside air and return air inlets. The cabinet end can be open requiring a field-installed

hood , Option AS2, (See Paragraph 6.3.1), or the cabinet end can have a duct flange

(see dimensions in Paragraph 4.1,

FIGURE 1). With either a hood or duct flange, the

inlet can have a damper. Dampers are available in a variety of configurations with a

variety of controls (AR Options). Options AR 6 and 7 have a 30% outside air hood and

a one-louver damper.
When ordered, a filter rack with a variety of filter options, is factory-installed in the

blower cabinet.
If the unit is ordered with an evaporative cooling module (Option AS 3, 4, 5, or 8), it is

factory-attached to the blower cabinet and is the point of entry for outside air.
Check the unit to be aware of the inlet air requirements of your installation.

6.3.1 Field-Installed

Outside Air Hood

Outside air hood (Option AS2) is a weatherized, screened hood designed to be field

assembled and installed around the horizontal inlet air opening of the blower cabinet.

The air hood includes factory-assembled louvers designed to help eliminate moisture

from the inlet air. Complete installation instructions are packaged with the air hood

option.

CAUTION: It is recommended that the inlet to the outside air

hood NOT be facing into the prevailing wind. Allow 14" (356mm)

minimum clearance from the bottom of the air hood to the mounting

surface.

Option AS2, 100% Outside Air Hood

Optional

100%

Outside

Air Hood

43-17/32” (1106mm)

4-5/8”

(117mm)

31-11/32”

(796mm)

14” (356mm)

minimum

NOTE: The width of the outside air hood

is the same as the width of the blower

cabinet.

FIGURE 7 - Dimensions

of Option AS2, Outside

Air Hood

RPB Size Width of Outside Air Hood

inches

mm

125

53-3/8

1356

150,175

34-1/8

867

200,225

39-5/8

1006

250,300

47-7/8

1216

350

53-3/8

1356

400

58-7/8

1495
