FE-100TX LED
6H122-08 User’s Guide 4-5

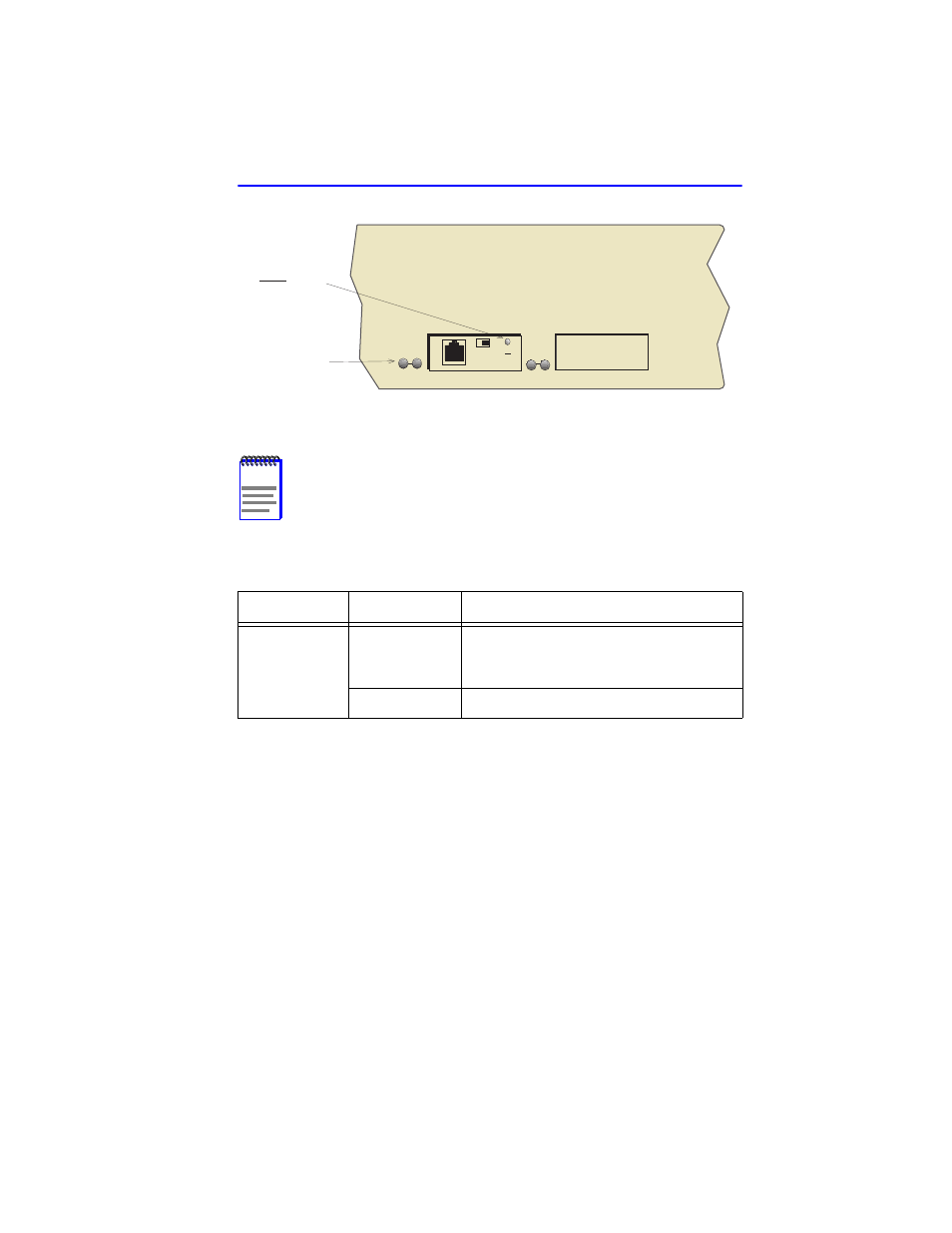

Figure 4-2 FE-100TX LED
Table 4-3 FE-100TX LED Indications
NOTE
A link exists if the associated port (port 7 or 8) Receive (RX)
LED is on. No link exists if the associated port (port 7 or 8)
Receive (RX) LED is off.
LED Color Description
10/100
Off
No link or no cable attached. FE-100TX is
forced or Auto-Negotiates to 10 Mbps
operation.
Green FE-100TX is operating at 100 Mbps.
Receive
(RX) LED
2 2
FE-100TX
10
100
x =
7 8
10
100 LED
