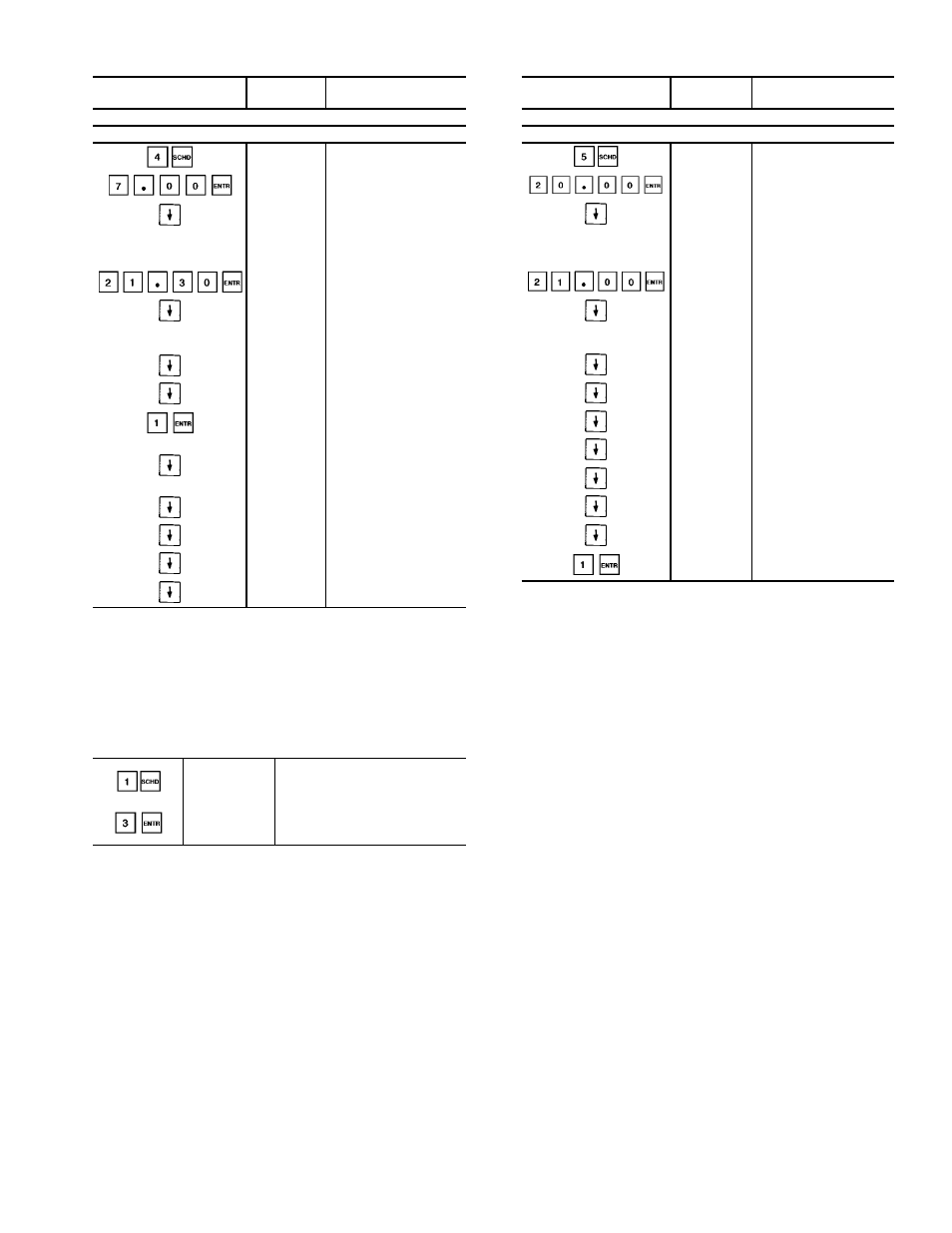

Example 24 — Using the Schedule Function (cont)

KEYBOARD

ENTRY

DISPLAY

RESPONSE

COMMENT

PROGRAMMING PERIOD 3:
For this example, Period 3 is used on Wednesday only.

OCC 00.00

Start of occupied time

OCC 7.00

Occupied time will start
at 7:00 am

UNO 00.00

Start of unoccupied
time (end of period 3).
For this example,
period 3 should end at
21:30 (9:30 pm)

UNO 21.30

Period 3 ends at
21:30 (9:30 pm)

MON NO

Check to be sure that
Monday and Tuesday
are flagged no for
period 3

TUE NO

WED NO

Wednesday is flagged
no. Change to yes

WED YES

Wednesday is now
flagged yes for
period 3

THU NO

Check to be sure that
all other days are
flagged no

FRI NO

SAT NO

SUN NO

HOL NO

Period 4 and 5 can be programmed in the same manner, flagging

Thursday and Friday yes for period 4 and Saturday yes for period 5.
For this example, periods 7 and 8 are not used; they should be pro-
grammed OCC 00.00, UNO 00.00.

NOTE: When a day is flagged yes for 2 overlapping periods, occu-
pied time will take precedence over unoccupied time. Occupied times
can overlap in the schedule with no consequence.

To extend an occupied mode beyond its normal termination for a

one-time schedule override, program as shown below:

OVRD 0

Override is set for 0; enter
the number of hours of
override desired

OVRD 3

Unit will now remain in
occupied mode for an
additional 3 hours

Example 24 — Using the Schedule Function (cont)

KEYBOARD

ENTRY

DISPLAY

RESPONSE

COMMENT

PROGRAMMING PERIOD 6:
For this example, Period 6 is used for holiday only.

OCC 00.00

Start of occupied time

OCC 20.00

Occupied time will start
at 20:00 (8:00 pm)

UNO 00.00

Start of unoccupied
time (end of period 6).
For this example,
period 6 should end at
21:00 (9:00 pm)

UNO 21.00

Period 6 ends at
21:00 (9:00 pm)

MON NO

Check to be sure that
Monday through
Sunday are flagged
no for period 6
