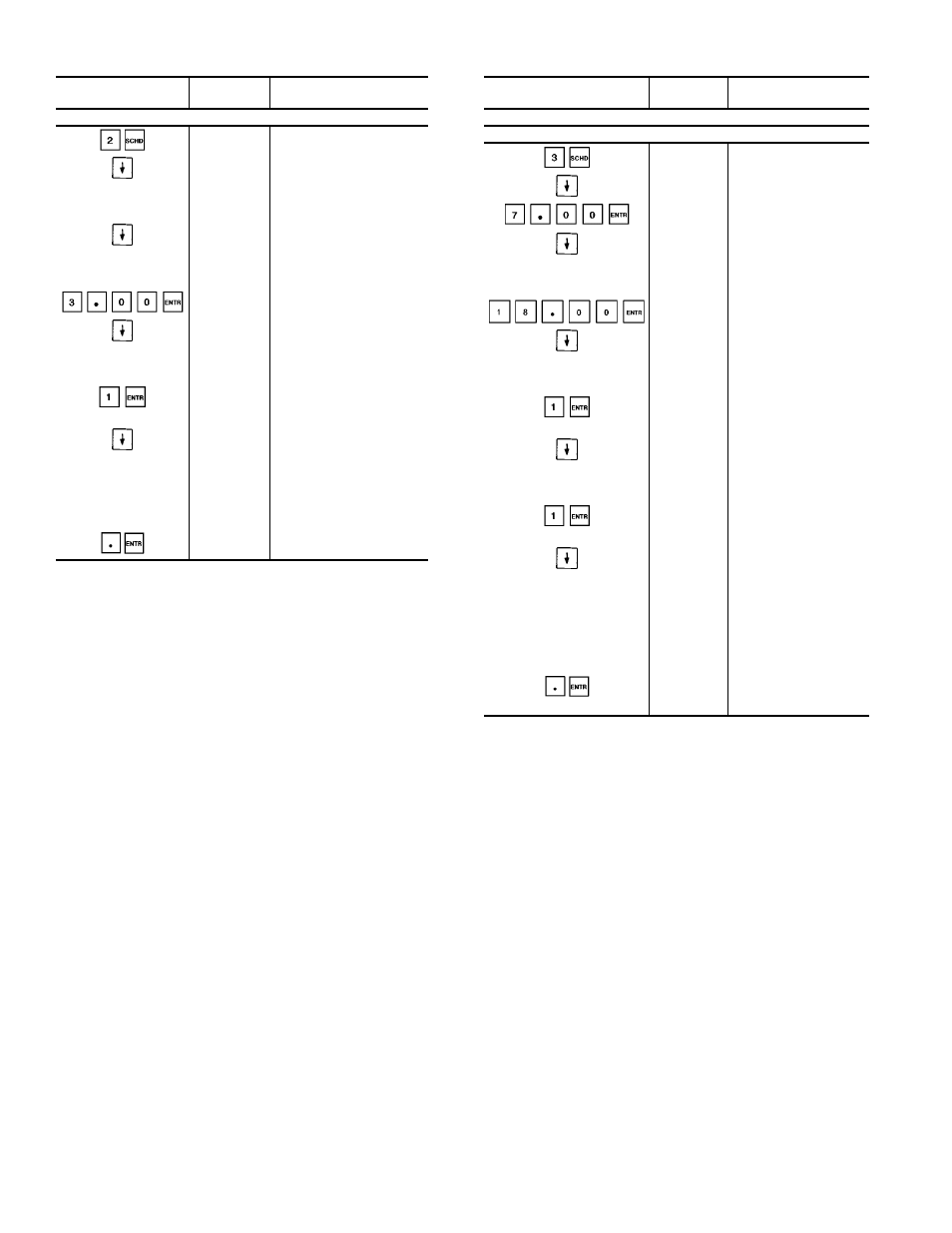

Example 24 — Using the Schedule Function
KEYBOARD
ENTRY
DISPLAY
RESPONSE
COMMENT
PROGRAMMING PERIOD 1:
PERIOD 1 Define schedule period 1
OCC 00.00 Start of occupied time.
For this example, first
period should start here
(at midnight) so no
entry is needed
UNO 00.00 Start of unoccupied time
(end of period). For this
example, period 1
should end at
3:00 am
UNO 3.00
Period 1 ends at
3:00 am
MON NO Monday is not flagged
for period 1. To put
period 1 into effect on
Monday, Monday must
be flagged yes
MON YES Monday is now flagged
for period 1 to be in
effect
TUE YES For this example, period 1
is to be in effect on
Monday only. All other
days must be checked
to be sure that they
are flagged no. If any
day is flagged yes,
change to no
TUE NO Tuesday is now flagged
no for period 1
Example 24 — Using the Schedule Function (cont)
KEYBOARD
ENTRY
DISPLAY
RESPONSE
COMMENT
PROGRAMMING PERIOD 2:
For this example, period 2 is used on Monday and Tuesday.
PERIOD 2
Define scheduling
period 2
OCC 00.00 Start of occupied time
OCC 7.00 Occupied time will
start at 7:00 am
UNO 00.00 Start of unoccupied
time (end of period)
for this example,
period 2 should end
at 18:00 (6:00 pm)
UNO 18.00
Period 2 ends at
18:00 (6:00 pm)
MON NO Monday is not flagged
for period 2. To put
period 2 into effect
on Monday, Monday
must be flagged yes
MON YES Monday is now flagged
for period 2 to be
in effect
TUE NO Tuesday is not flagged
for period 2. To put
period 2 into effect
on Tuesday, Tuesday
must be flagged yes
TUE YES Tuesday is now flagged
for period 2 to be
in effect
WED YES For this example,
period 2 is to be in
effect only on
Monday and Tuesday.
All other days must
be checked to be
sure that they are
flagged no. If a day
is flagged yes,
change to no
WED NO Wednesday is now
flagged no for
period 2
