Function select dial "dial, Fu nction – Futaba 3PKS User Manual

Page 80

Initially set functions

DL1 :Dual rate function
DL2 :ATL function
DL3 :(Not set)
DT1 :Steering trim
DT2 :Throttle trim
DT3 :(Not set)

Abbrevia-

tion used on

setup screen

Abbreviation
displayed on

opening screen

Function name, etc

D/R

(D/R)

Dual rate function

ATL

(ATL)

ATL function

EXP-S

(EXPS)

Steering EXP

EXP-F

(EXPF)

Throttle EXP (Forward side)

EXP-B

(EXPB)

Throttle EXP (Brake side)

EXP-3

(EXP3)

3rd Channel brake EXP

SP-TN

(SPTn)

Steering speed (Turn side)

SP-RN

(SPRn)

Steering speed (Return side)

AB.P

(AB.P)

A.B.S. function (Return amount)

ABS.D

(ABSD)

A.B.S. function (Delay)

CYCLE

(CYCL)

A.B.S. function (cycle speed)

ACC-F

(ACCF)

Throttle acceleration (Forward side)

ACC-B

(ACCB)

Throttle acceleration (Brake side)

ACC-3

(ACC3)

3rd Channel brake acceration (BRAKE fanction-ON)

THSP1

(THS1)

Throttle speed (ALL/LOW)

THSP2

(THS2)

Throttle speed (MID)

THSP3

(THS3)

Throttle speed (HIGH)

ST-TR

(TRMS)

Steering trim

TH-TR

(TRMT)

Throttle trim

CH3

(3CH)

Channel 3

SUBT1

(SBT1)

Sub trim (CH1)

SUBT2

(SBT2)

Sub trim (CH2)

SUBT3

(SBT3)

Sub trim (CH3)

D/R2

(D/R2)

2nd dual rate function

IDLUP

(IDLE)

Idle up function

TLT13

(TL13)

Tilt mixing (1>3)

TLT31

(TL31)

Tilt mixing (3>1)

PM1-A

(PM1A)

Program mixing 1 (RGHT/BRAK/DOWN sides)

PM1-B

(PM1B)

Program mixing 1 (LEFT/FWRD/UP sides)

PM2-A

(PM2A)

Program mixing 2 (RGHT/BRAK/DOWN sides)

PM2-B

(PM2B)

Program mixing 2 (LEFT/FWRD/UP sides)

BK-RT

(BKRT)

Brake mixing (3ch brake rate)

BK-DL

(BKDL)

Brake mixing (delay)

B-ABP

(BABP)

3rd Channel A.B.S -Return amount (BRAKE fanction-ON)

B-ABD

(BABD)

3rd Channel A.B.S -Delay(BRAKE fanction-ON)

OFF

Not used

Settable functions (DL1/DL2/DL3, DT1/DT2/DT3)

DL1

DL2

DL3

DT1

DT2

DT3

nction

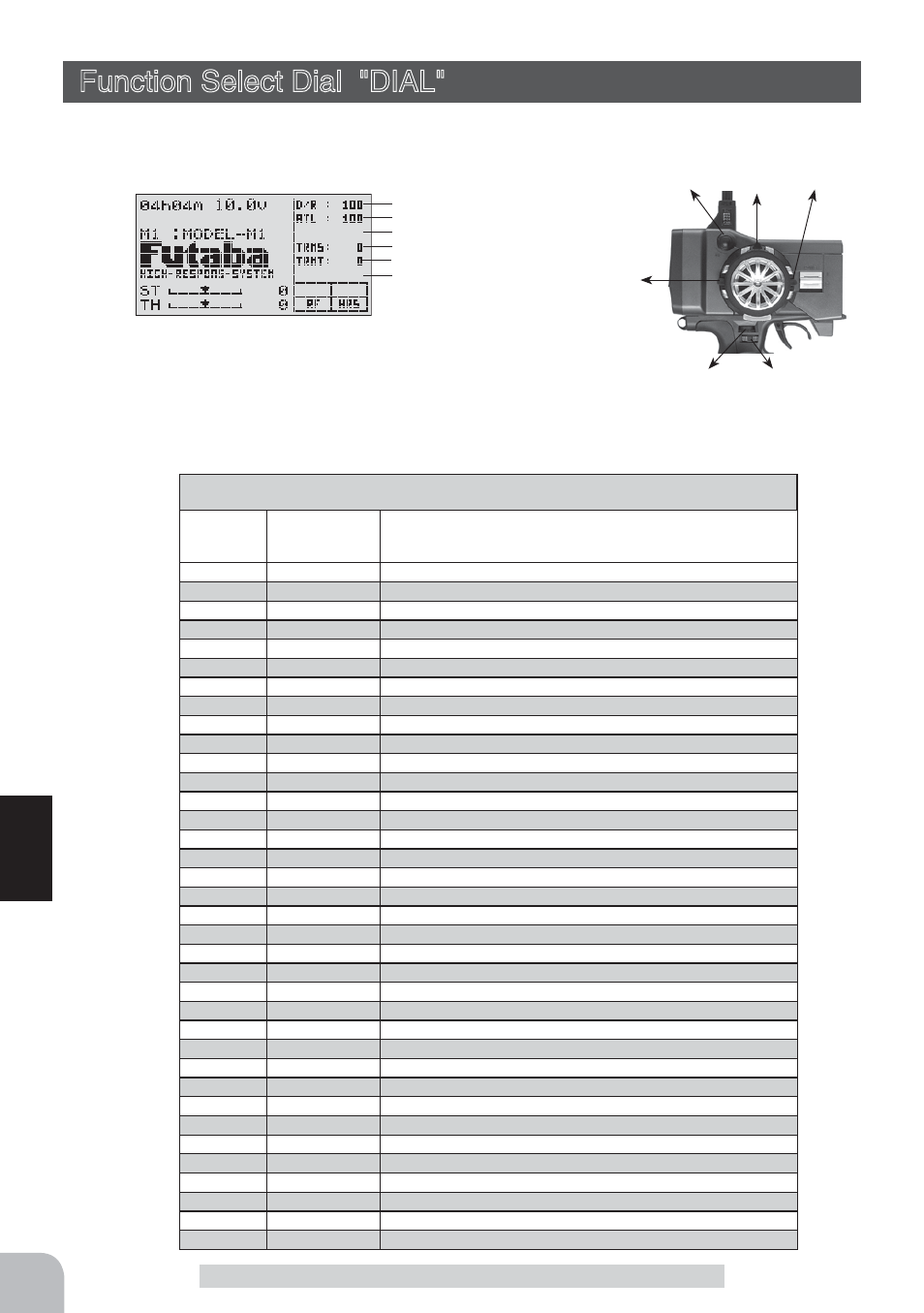

Function Select Dial "DIAL"

This function allows selection of the function performed by the digital dial (DL1/DL2/
DL3) and digital trimmers (DT1/DT2/DT3), step amount adjustment, and operating di-
rection reversal.

- The table below lists the functions that can be assigned to each dial

and digital trimmer. The assigned function is also displayed on the
opening screen together with the current adjustment value. They are
displayed in DT1, DT2, DT3, DL1, DL2, and DL3 order, from top to bottom.

- The step amount can be adjusted. The table below shows the relationship between set value and step

amount.

- The operation direction can be reversed. (NOR/REV)
