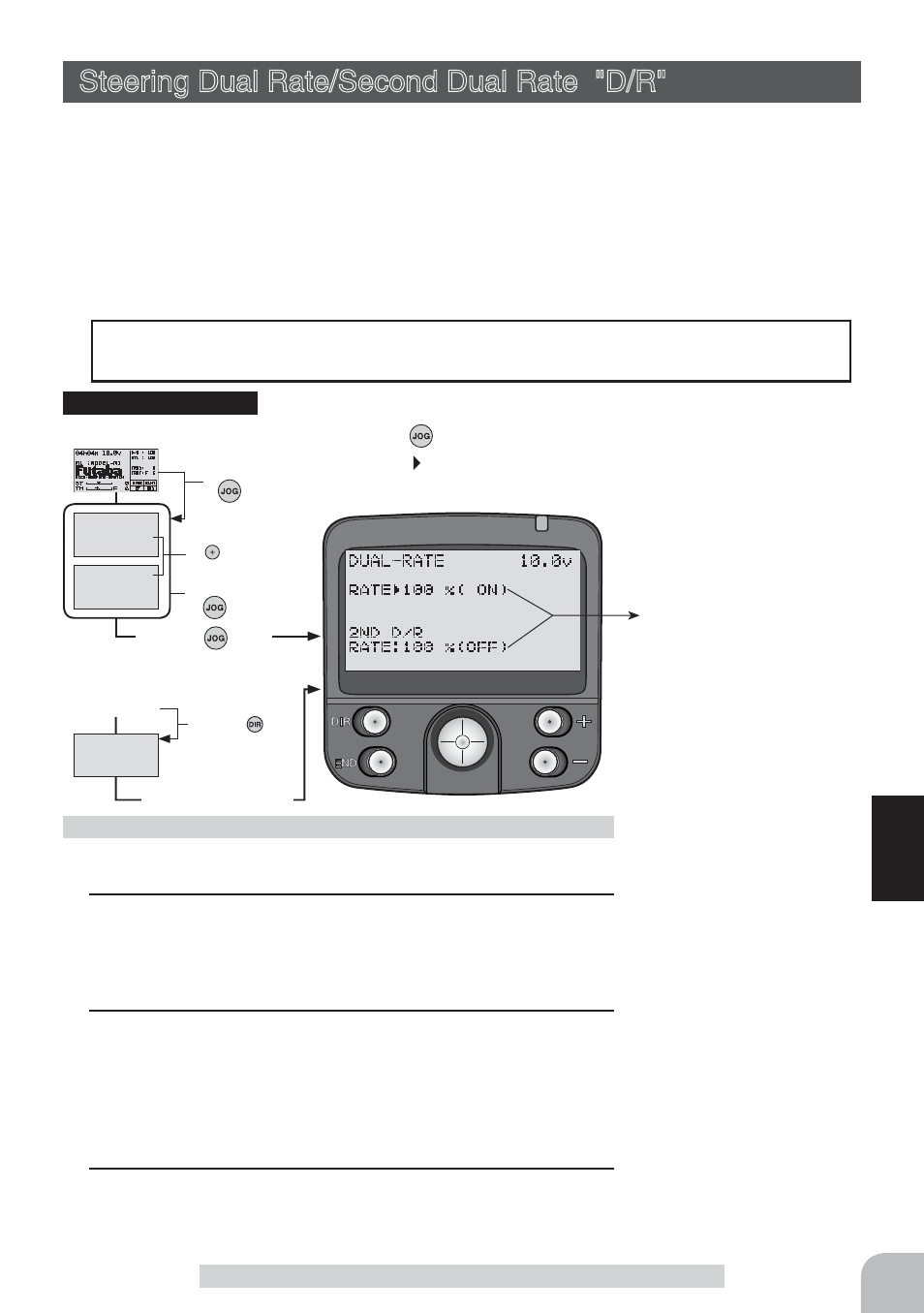

Steering Dual Rate/Second Dual Rate "D/R"
When using the second dual rate, the changeover switch must be selected with the func-
tion select switch function. (P.79)
When using the 2nd dual rate function, use the function select
switch function (p.79) to assign the switch in advance.
1
(Dual rate adjustment)
Select the setting item “RATE” by (JOG) button up or down op-
eration. Adjust the servo travel with the (+) and (-) buttons.
This dual rate servo travel is linked to the grip dial.
2
(2nd dual rate adjustment)
Select the setting item “2ND D/R RATE” by (JOG) button up or
down operation and adjust the servo travel with the (+) and (-)
buttons.
When the switch is switched, the ON/OFF display at the right-hand side of the rate
display changes. The “ON” display indicates the currently operating servo travel.
3
When ending setting, return to the initial screen by pressing the
(END) button twice (for direct selection, press the (END) button
once).
Dual rate adjustment
Steering Dual Rate/Second Dual Rate "D/R"
(Steering system)
- Dual rate
The steering left and right servo travels are adjusted simultaneously. When you want to
increase the servo travel, adjust the + side. When you want to decrease the servo travel,
adjust the – side. This setting is linked to transmitter grip dial DL1. When DL1 is as-
signed another function, dual rate can be adjusted with this screen.
- Second dual rate
This function is convenient when facing a fence due to a crash, etc. Dual rate and second
dual rate servo travel switching is performed by switch.
ON/OFF display. Linked with 2nd
dual rate switch.
Setup Item
RATE
:Rate setting (D/R)
2ND D/R
RATE
:Rate setting (2nd D/R)
Setup item selection
- Select by (JOG) button up or
down operation.
Adjustment buttons
- Use the (+) and (-) buttons to
make adjustments.
- Press the (+) and (-) buttons
simultaneously (approx. 1 sec)
to return to the initial screen.
D/R rate (RATE)
0~100%
Initial value: 100
2ND D/R rate (2ND D/R RATE)
0~100%
Initial value: 100
