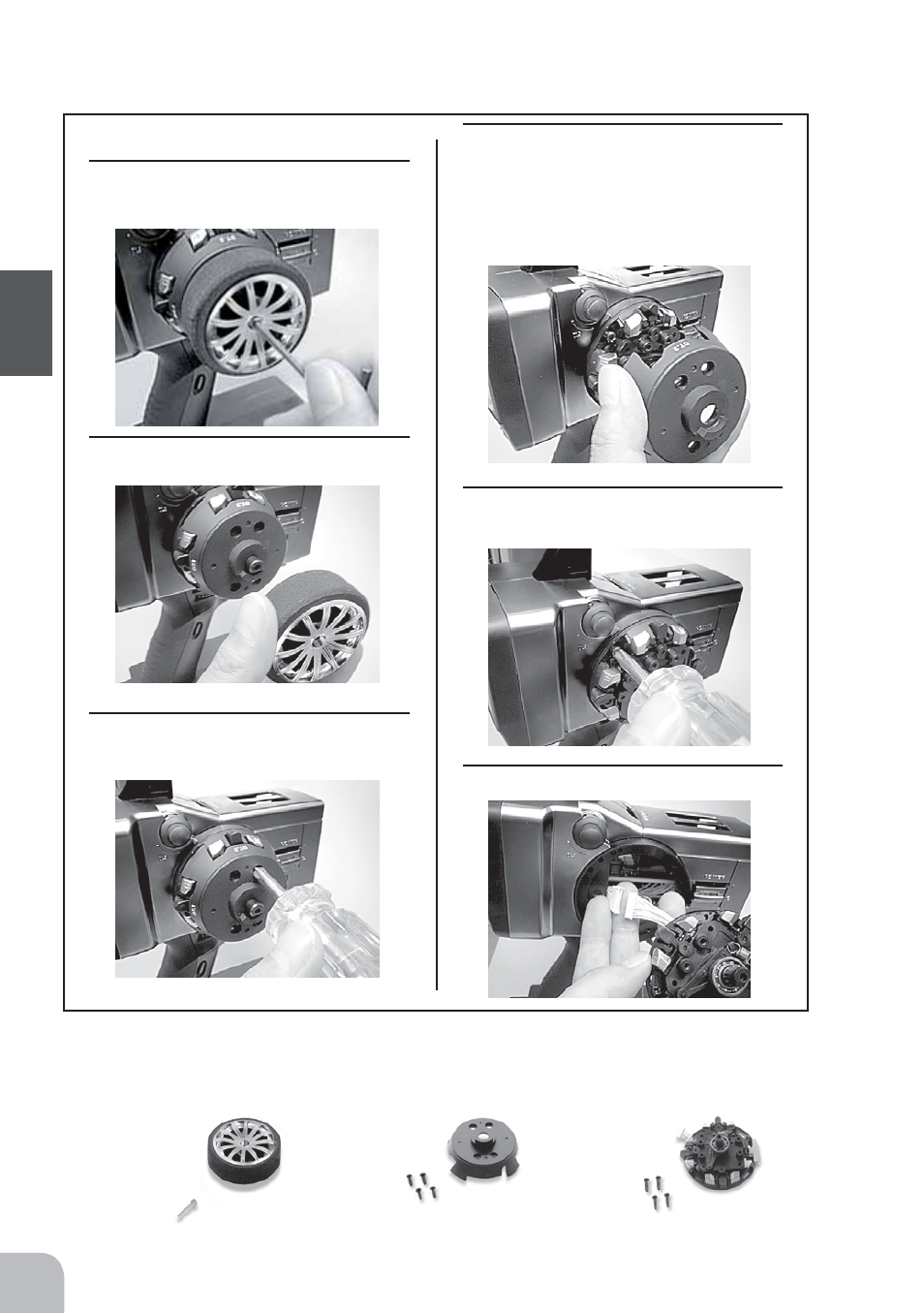

Removing the steering wheel unit
• Obtain a 2.5mm hex wrench and philips
screwdriver.
1
Hold the wheel and remove the
screw.
2
Pull off the wheel.
3
Remove the 4 steering wheel unit
cover screws.
4
Remove the steering wheel unit.
5
Remove the 4 steering wheel screws.
6
Disconnect the connector.
• During this work, handle the unit carefully so that the shaft and other parts mounted to the internal
steering wheel unit do not fall out.
• The length of the screws used at each part differs as shown in the photos below. When reassembling
the steering wheel unit, always use the original screws
Steering wheel mounting screw (1) Cover mounting screws (4) Unit mounting screws (4)
• While pushing the end of the steer-
ing wheel shaft (so that the shaft
will not come off together with the
cover), remove the cover.
