47
F
u
nction

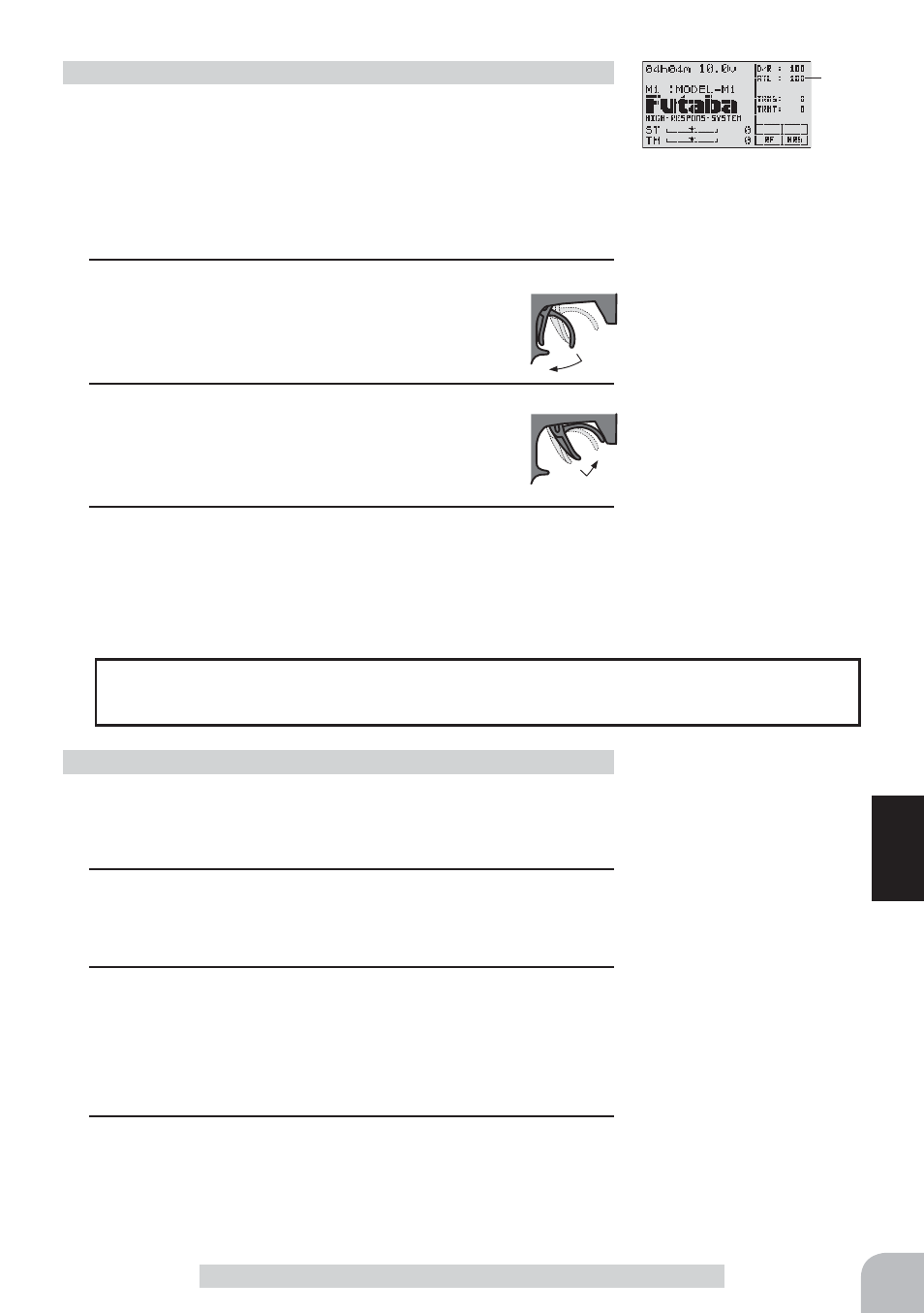

End Point Adjuster "EPA"
100%
(Preparation)
- Before setting the throttle steering angle, set the throttle ATL
dial (initial setup: BT2) to the maximum steering angle position
100%.
- Select the setting item "TH-FWD" by (JOG) button up or
down operation and make the following adjustments:
1
Throttle (forward side) adjustment
Turn the throttle trigger fully to the high side and
use the (+) or (-) buttons to adjust the throttle angle.
However, when using an FET amp, set to 100%.
2
Throttle (brake side/reverse side) adjustment
Turn the throttle trigger fully to the brake side and
use the (+) or (-) buttons to adjust the throttle angle.
However, when using an ECS, set to 100%.
3
When adjusting the throttle angle of another channel imme-
diately after this, see the adjustment method for that channel.
When ending setting, return to the initial screen by pressing
the (END) button twice (for direct selection, press the (END)
button once).
Throttle (EPA) adjustment
(Preparation)
- Select the setting item "3C-UP" by (JOG) button up or down
operation and make the following adjustments:
1
3rd channel servo (up side) adjustment
Set the 3rd channel dial fully to the up side (+ side) and use
the (+) or (-) buttons to adjust the steering angle.
2
3rd channel servo (down side) adjustment
Select the setting item "3C-DWN" by (JOG) button up or
down operation and set the 3rd channel dial fully to the down
side (-) and use the (+) or (-) buttons to adjust the steering
angle.
3
When adjusting the steering angle of another channel imme-
diately after this, see the adjustment method for that channel.
When ending setting, return to the initial screen by pressing
the (END) button twice (for direct selection, press the (END)
button once).
3rd channel servo (EPA) adjustment
When " CUT OFF " , which prohibits trigger brake side operation in the boat mode (p.72),
was set, throttle " TH-BRK " (brake side) cannot be adjusted.
Adjust button
- Use the (+) and (-) buttons to
make adjustments.
- Return to the initial value "100"
by pressing the (+) and (-) but-
tons simultaneously for about 1
second.
Throttle EPA
TH-FWD :0~120
TH-BRK :0~120
Initial value : 100
Adjust button
Adjust with the (+) and (-) but-
tons.
- Return to the initial value "100"
by pressing the (+) and (-) but-
tons simultaneously for about 1
second.
Steering EPA
3C-UP :0~120
3C-DWN :0~120
Initial value :100
Direction selection
- Select by (JOG) button up or
down operation.
