16
B
e
fo
re
Using

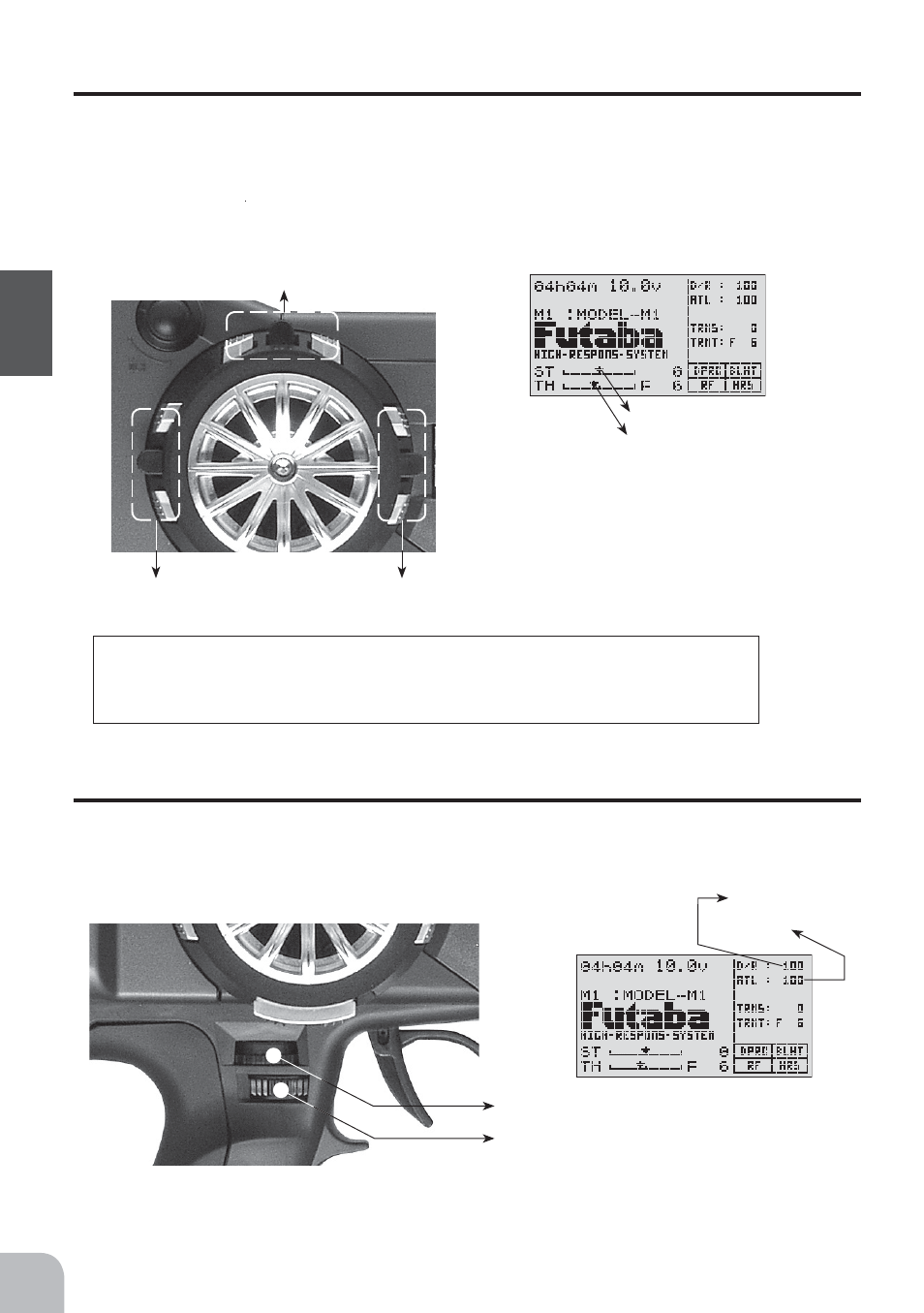

Trim Operation
Digital Trim Operation
(Initial settings: DT1: Steering trim, DT2: Throttle trim, DT3: -------)
Digital trims can be used in 2 ways:
Operating by the lever: Push the lever to the left or right (up or down) Operating by push
button switch: Press the push button switch in the desired direction. The current position
is displayed on the LCD screen in the bottom three rows of the list.However, this opera-
tion cannot be performed when the trim/dial lock (p.22) function is set.
• Each step is indicated by a tone.
• When the trim exceeds the maximum trim adjustment
range, the beepwill change and the servo will not move
any farther. Return to the neutral position (center) by
pressing both the push button switches simultaneously
for about one second.
• Trim lever adjustments have no effect on the maximum
servo travel.This prevents the linkages from binding
when adjustments are made.
DT2 DT3
DT1
Steering trim display
Throttle trim display
Grip Dial Operation
(Initial setting: DL1; Steering D/R, DL2; ATL)
Operate the dials by turning them. The current set value is displayed on the LCD screen.
However, this operation cannot be performed when the trim/dial lock (p.22) function is set.
• Each step is indicated by a tone.
• When the trim exceeds the maximum trim
adjustment range, the tone will change pitch
and the lever will not move any farther.
ATL displaydisplay
Steering D/R display
Steering D/R DL1
ATL DL2
With the center trim feature, trim adjustments have no effect on the maxi-
mum servo travel. This prevents the linkages from binding when adjust-
ments are made.
