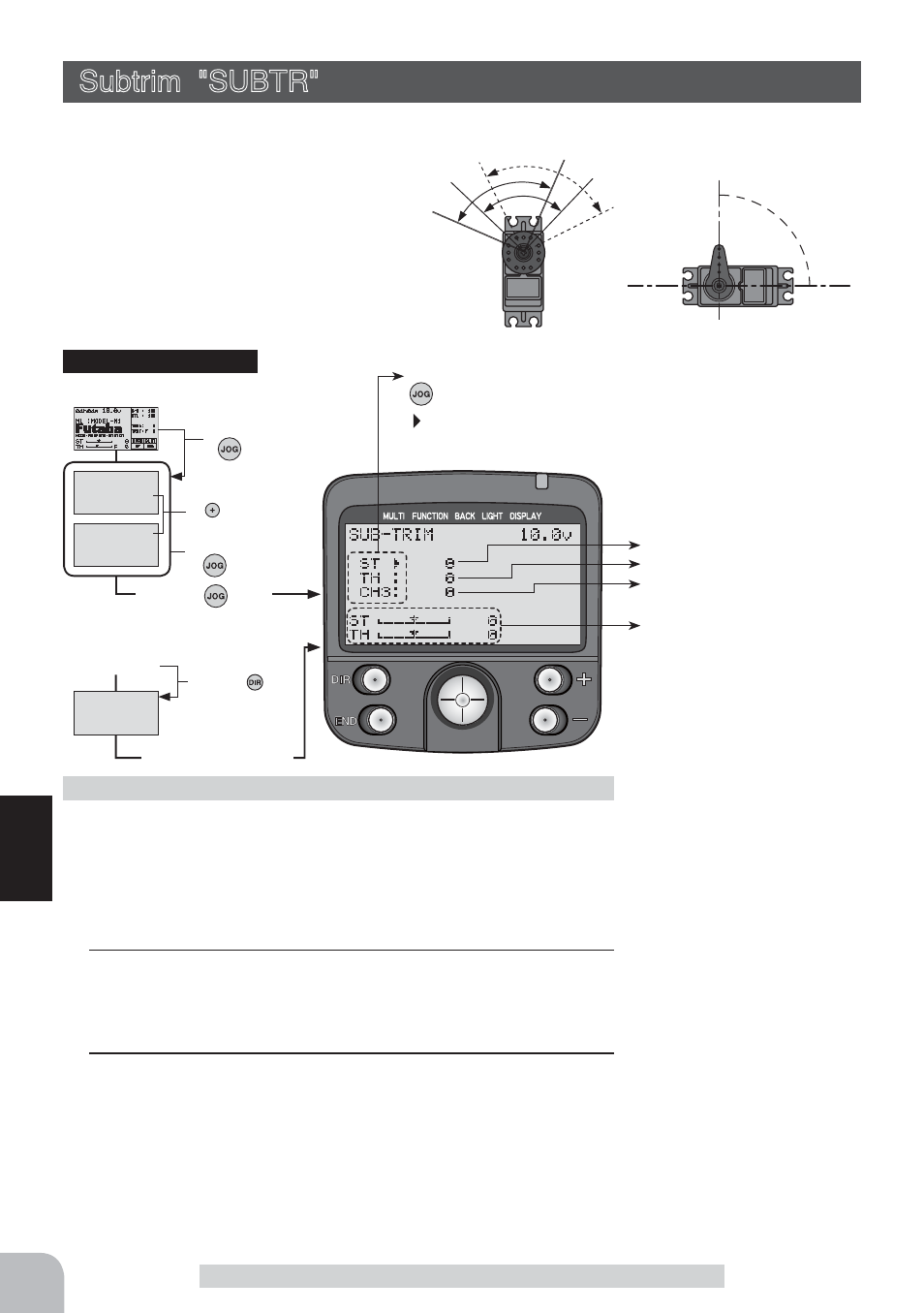

Subtrim "SUBTR"
Use this function to adjust the neutral position of the steering, throttle and channel 3 ser-
vos.
(Preparation)
- Set the steering and throttle digital trims to the neutral "0" posi-
tion. Set CH3 to the center "0" position.
- Select the channel to be set by (JOG) button up or down op-
eration.
1
(Subtrim adjustment)
Use the (+) or (-) button to adjust the center.
(Each channel can be set similarly.)
2
When ending setting, return to the initial screen by pressing
the (END) button twice (for direct selection, press the (END)
button once).
Brake side operation stop method
Set the steering and throttle
digital trims to the neutral "0" po-
sition. Set CH3 to the center "0"
position.
Use to adjust the neutral position
*Subtrim adjusts the entire range of
the servo in the set direction.
Subtrim "SUBTR" (All channel)
Channel
ST
:Steering
TH :Throttle
CH3 :Channel3
Adjust button
- Adjust with the (+) and (-) but-
tons.
- Return to the initial value "0" by
pressing the (+) and (-) buttons
simultaneously for about 1 sec-
ond.
Channel selection
- Select by (JOG) button up or
down operation.
Subtrim
ST :L100~R100
TH :B100~F100
CH3
:-100~+100
Initial value : 0
