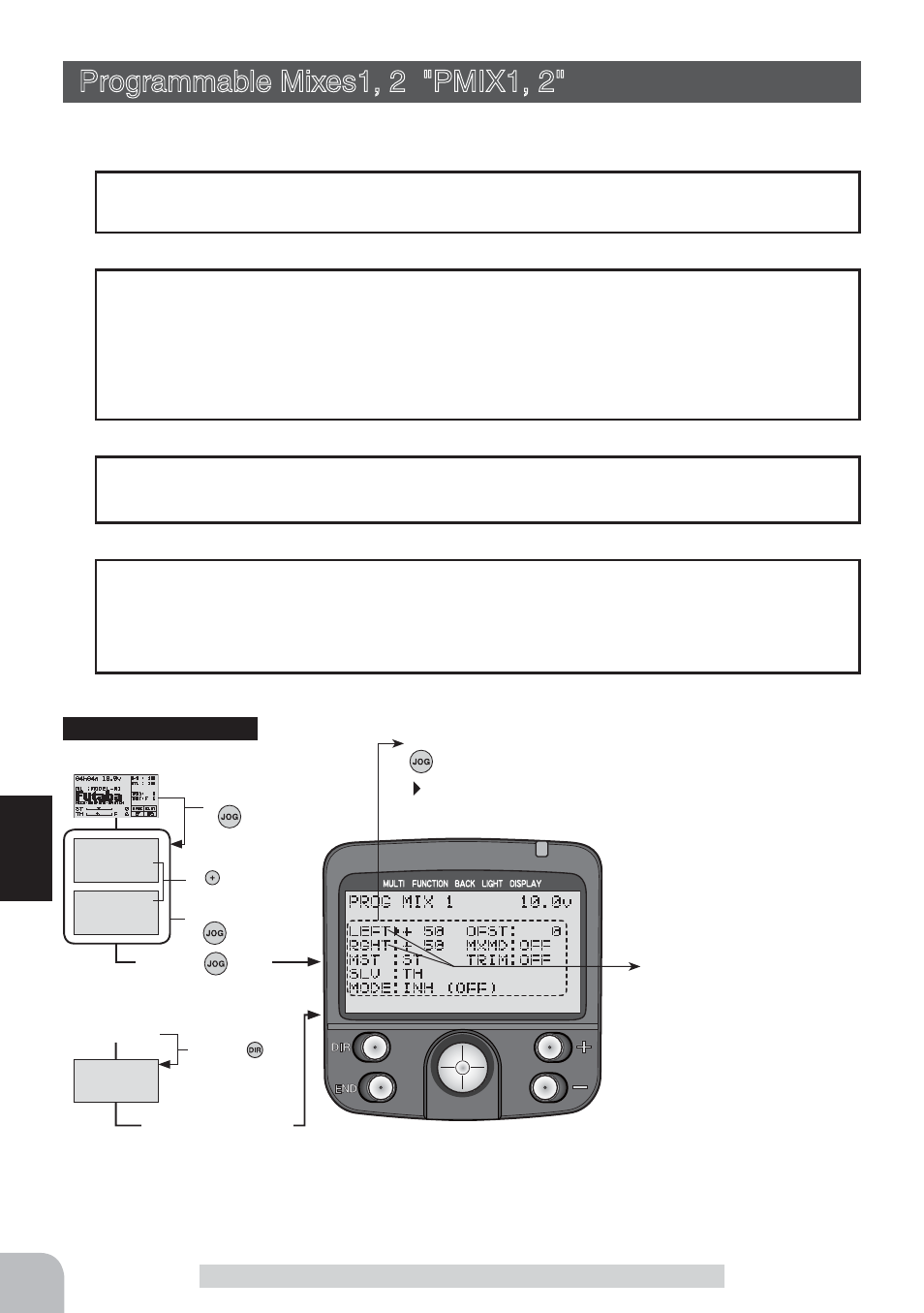

Programmable Mixes1, 2 "PMIX1, 2"
These setup items are different
depend on the master channel.
Upper side : LEFT/FWRD/UP
Lower side : RGHT/BRAK/DOWN
These functions allow you to apply mixing between the steering, throttle, and channel 3
channels.
Two programmable mixing systems can be used. The programmable mixing 1 and pro-
grammable mixing 2 set-up screens are independent.
-When the steering or throttle channel is the master channel (channel that applies mix-
ing), trim data can be added. (Trim mode)
- The mixing mode selection. (Master mixing mode)
- The master channel mixing center point (point at which the direction changes) can be
offset. (Offset function)
Additional Functions
The movement of the master channel side will be added to the movement of the
slave channel side.
Movement of the slave channel side
When "CUT OFF", which prohibits trigger brake side operation, was set in the boat
mode (p.72), since brake side operation is shut off, when the master channel (MST) is
set to throttle, only "FWRD" side mixing is activated. "BRAK" side mixing is not acti-
vated.
When "TRG-BRK" was set to "CUT OFF" by boat mode function
Programmable Mixes1, 2 "PMIX1, 2" (All channel)
Setup items
LEFT
:Mixing rate (Left side)
RGHT :Mixing rate (Right side)
MST :Master channel
SLV :Slave channel
MODE :Function ON/OFF
OFST :Offset
MXMD :Mix mode
TRIM : Trim mode
Adjust button
- Adjust with the (+) and (-) but-
tons.
- Return to the initial value "100"
by pressing the (+) and (-) but-
tons simultaneously for about 1
second.
