Spartan-3E Starter Kit Board User Guide

www.xilinx.com

67

UG230 (v1.0) March 9, 2006

R

Chapter 9

Digital to Analog Converter (DAC)

The Spartan-3E Starter Kit board includes an SPI-compatible, four-channel, serial Digital-
to-Analog Converter (DAC). The DAC device is a Linear Technology LTC2624 quad DAC
with 12-bit unsigned resolution. The four outputs from the DAC appear on the J5 header,
which uses the Digilent 6-pin

Peripheral Module

format. The DAC and the header are

located immediately above the Ethernet RJ-45 connector, as shown in

Figure 9-1

.

SPI Communication

As shown in

Figure 9-2

, the FPGA uses a Serial Peripheral Interface (SPI) to communicate

digital values to each of the four DAC channels. The SPI bus is a full-duplex, synchronous,
character-oriented channel employing a simple four-wire interface. A bus master—the
FPGA in this example—drives the bus clock signal (SPI_SCK) and transmits serial data
(SPI_MOSI) to the selected bus slave—the DAC in this example. At the same time, the bus
slave provides serial data (SPI_MISO) back to the bus master.

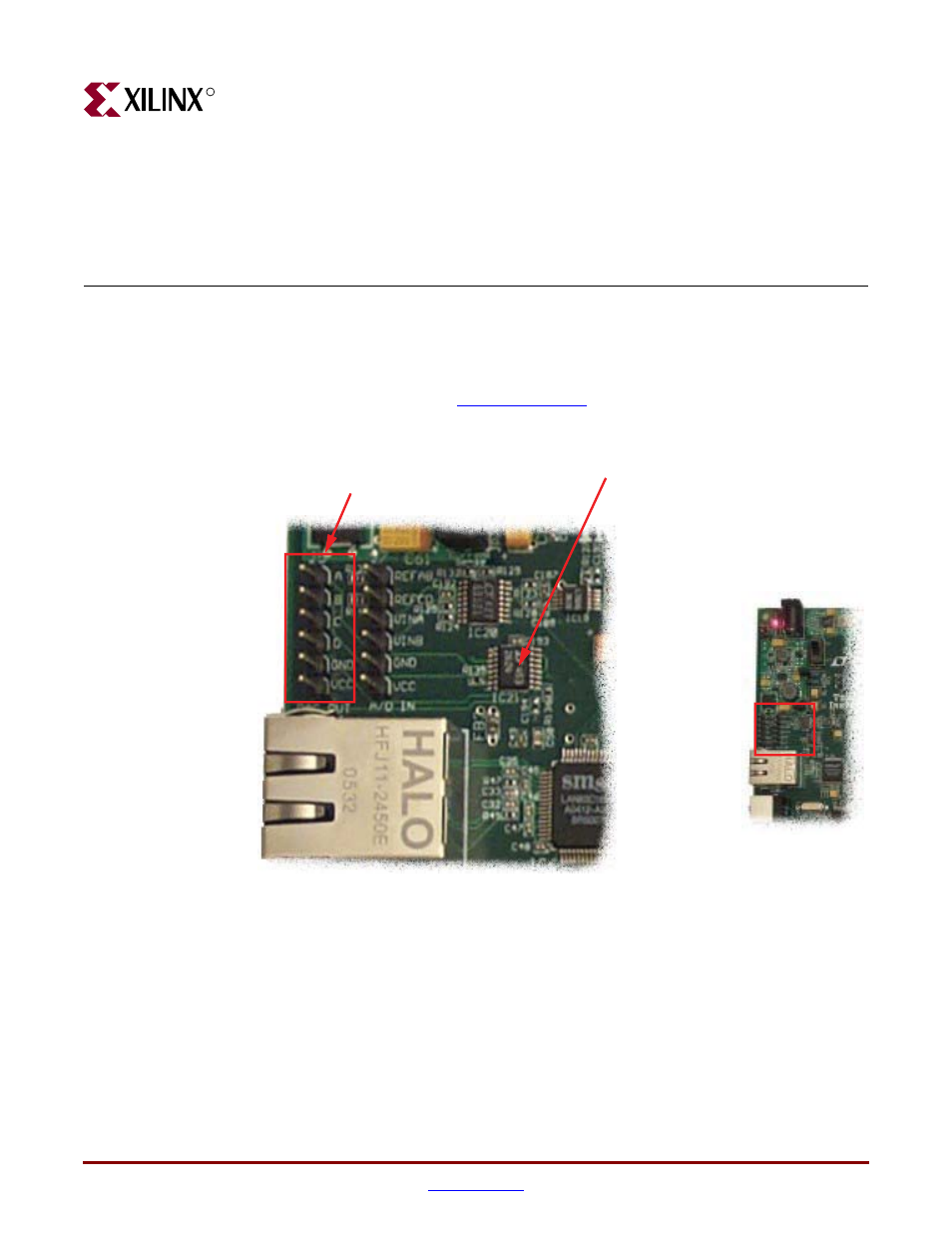

Figure 9-1:

Digital-to-Analog Converter and Associated Header

6-pin DAC Header (J5)

Linear Tech LTC2624 Quad DAC

SPI_MOSI: (T4)
SPI_MISO: (N10)
SPI_SCK: (U16)
DAC_CS: (N8)
DAC_CLR: (P8)

UG230_c9_01_030906
