The iMPACT software indicates if programming was successful or not. If programming
was successful and the Load FPGA option was left unchecked, push the PROG_B push-
button switch shown in
Figure 4-2, page 26 to force the FPGA to reconfigure from the
newly programmed Platform Flash PROM. If the FPGA successfully configures, the DONE
LED, also shown in
Figure 4-2 , lights up.

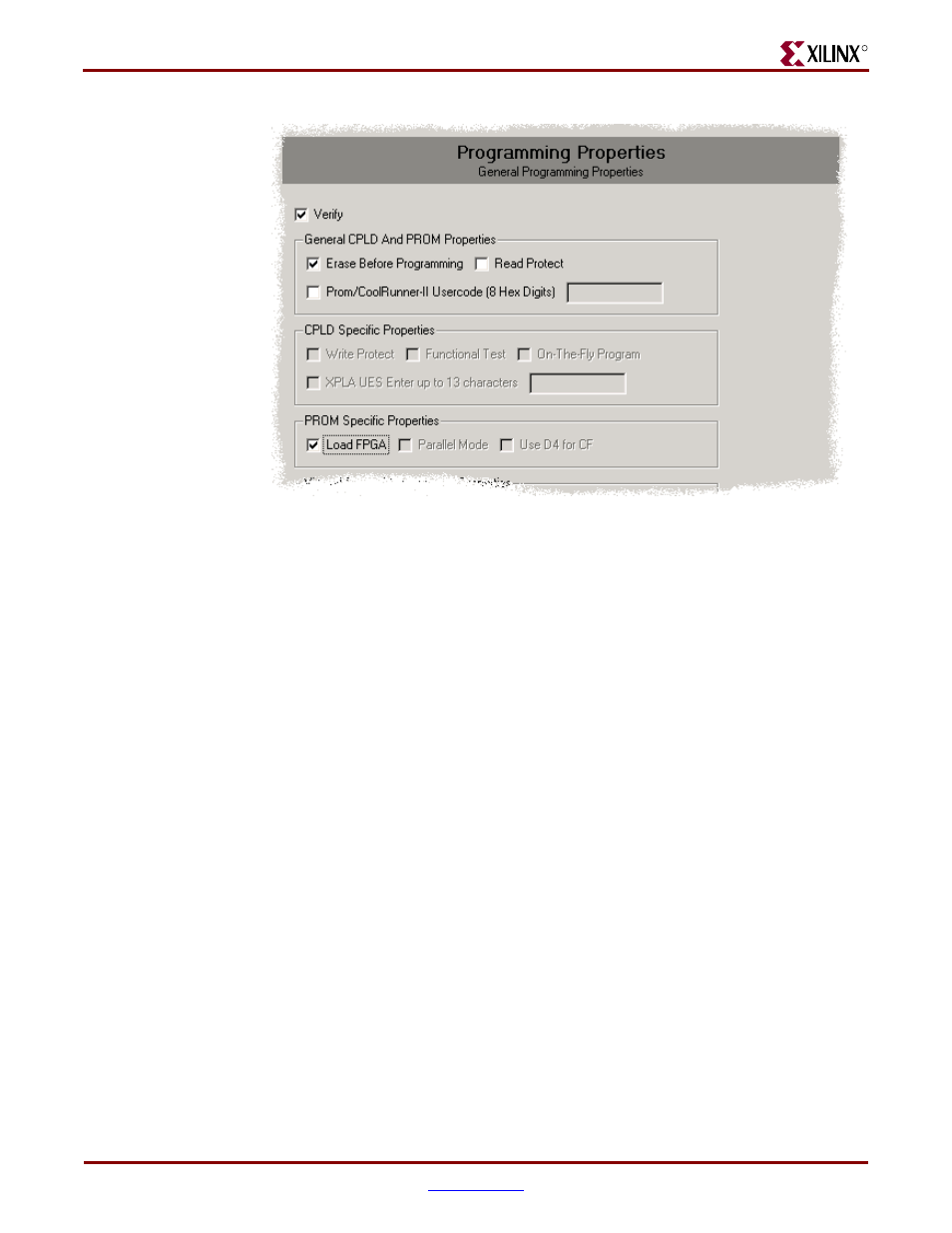

Figure 4-26: PROM Programming Options
UG230_c4_27_022806
