Installation and wiring – Toshiba Programmable Controller PROSEC T3 User Manual
Page 74
Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".
4. Installation and Wiring

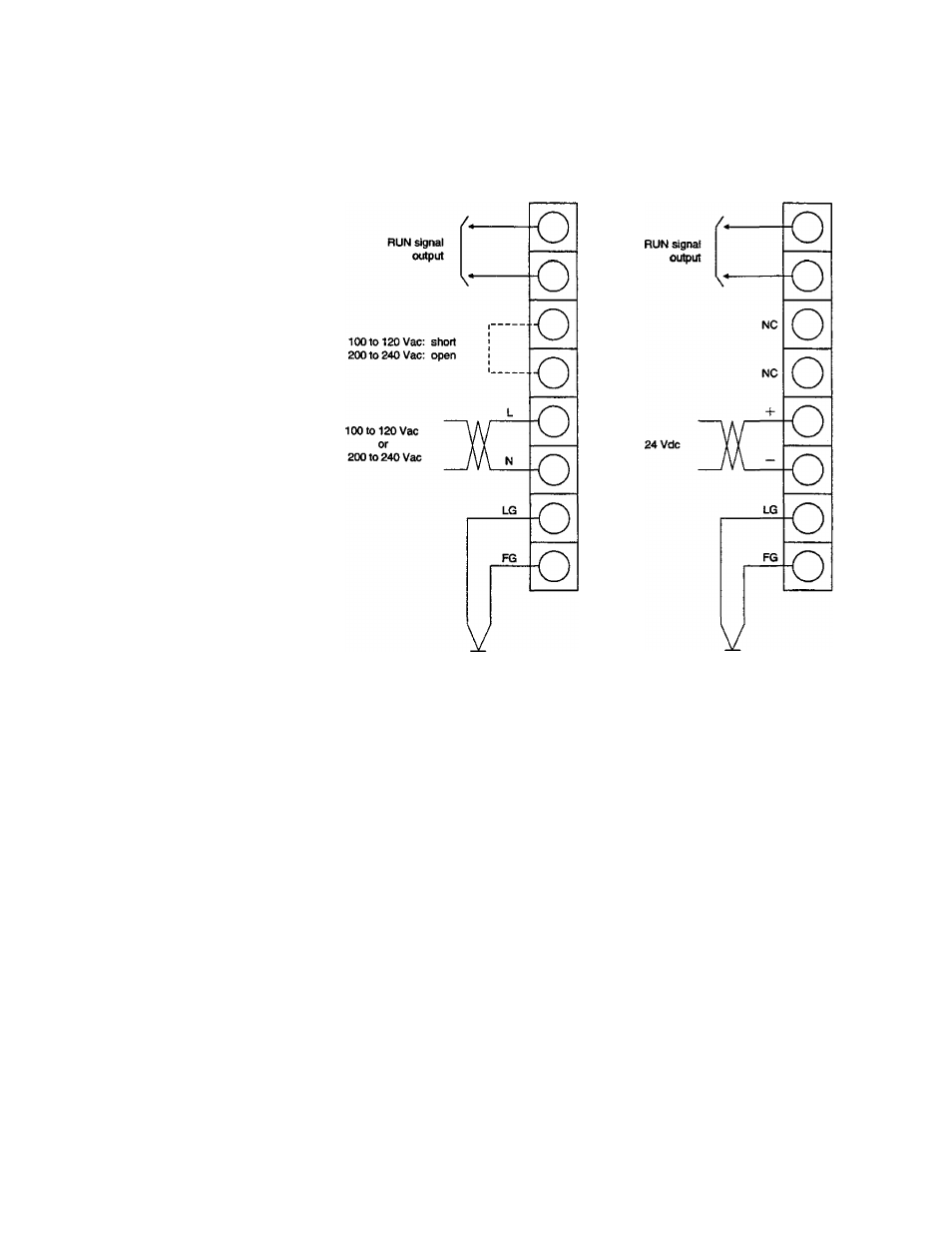

Wiring of the power supply module
AC power supply
(PS361)
DC power supply
(PS332)
CAUTION
(1) The size of the terminal screw is M3.5. Use an
appropriate crimp-style terminal with a width of 7 mm
(0.27 In) or less for the M3.5 screw.
(2) The terminal block can be removed. Turn OFF the
power before removing the terminal block for safety.
(3) The recommended cable size for the power supply
module is 1.25 mm^
66
PBOSECT3
