2. Specification
16-point isolated relay
output
Type
Category
Output type
No. of output points
Insulating method
Rated load voltage
Range of load voltage
Max. load current
Contact ON resistance
Leakage current at OFF
Min. load current
Delay
OFF - ON
ON OFF
Output signal display
Module status display
External connection
Common connection
Internal current
consumption
External
power
for relay
Rated voltage
Rated current
Voltage range
Mechanical life
Electrical contact life
Insulation resistance
Withstand voltage
Built-in fuse
Weight

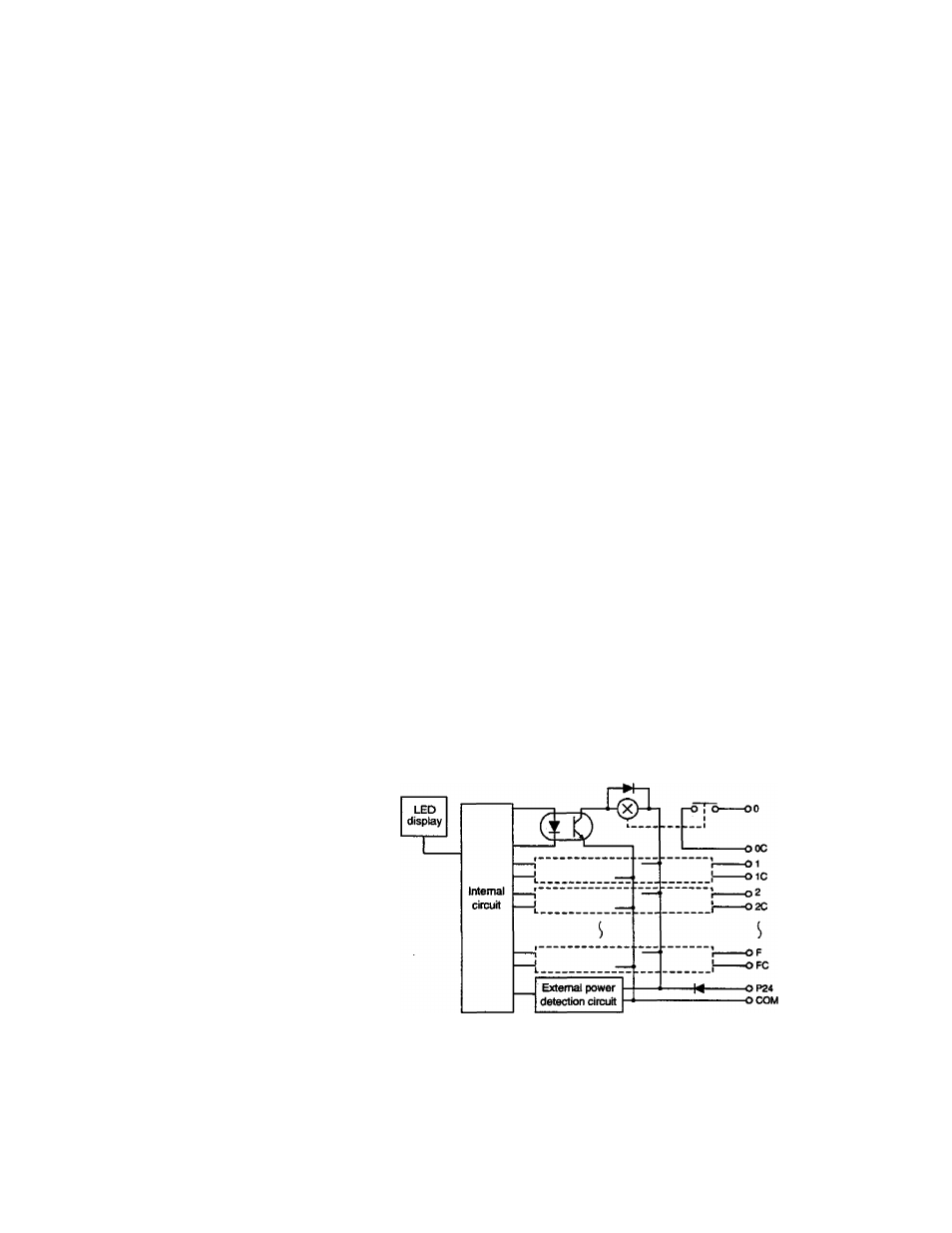

Internal circuit
R0363S
Electromechanical relay output
NO-contact
16 points, 1-word output (Y 1 W)
Photo-coupler
240Vac/24Vdc
Up to 264 Vac/125 Vdc
2 A/point
50 mQ or less (initial value)
None
5 Vdc, 10 mA (50 mW or more)
10 ms or less
10 ms or less
LED di^lay for all points, lit at ON, internal logic side
^normal external power supply display LED (F),
lit at abnormal state
38-pin removable terminal block, M3.5
16-point isolated contact
5 Vdc, 100 mA or less
24 Vdc
145 mA (24 Vdc, at all points ON)
21.6 Vdc to 26.4 Vdc
20 million times or more
See the next page
10 MQ or more (500 Vdc)
1500 Vac, 1 minute (between the points, between
internal and external circuits)
None
450g
46
PROSEC T3
