1. System Configuration
1.3
Power supply module The following table shows that two types of power supply modules
are available, depending on the power supply voltage. These
modules can be used for both the basic unit and the expansion unit.
The power supply module is mounted in the extreme left of the rack.
However, the expansion rack that is connected to the standard
expansion IF may not need the power supply module. For details,
see 1.9 Examining the power supply capaci^.
Type Rated voltage Frequency
PS361 100-120 Vac/200-240 Vac (selectable) 50/60 Hz
PS332 24 Vdc

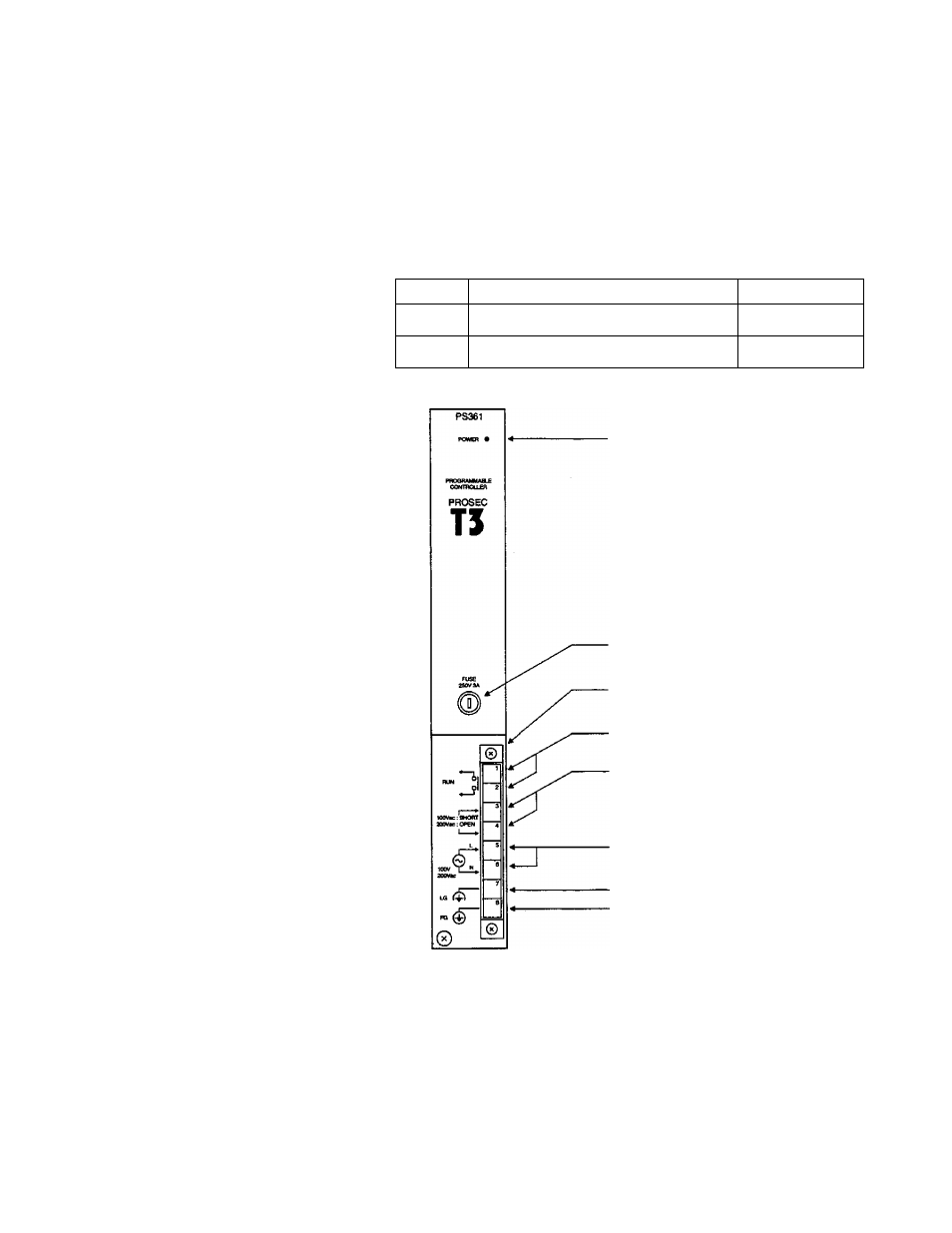

POWER LED
Fuse
\
Tenninal block eject screw
(on top at bottom)
Run signal output terminals
Voltage switch terminals
(100 to 120 Vac... ^ort\
1200 to 240 Vac... open
)
Power su|:^ly input terminais
Line filter ground terminal
Frame ground terminal
Module fixing screw
