2. Specification
2.3
I/O module
specifications
32-point DC input
Type
Category
input type
Number of input points
insulating method
Rated input voltage
Range of input voltage
Rated input current
Input impedance
Opera
tion
voltage
Delay
Min. ON voltage
Max. OFF voltage
OFF-ON
ON — OFF
Input signal display
External connection
No. of commons
No. of input points
per common
Polarity of common
Derating condition
Internal cunent
consumption
Insulation resistance
Withstand voltage
Weight

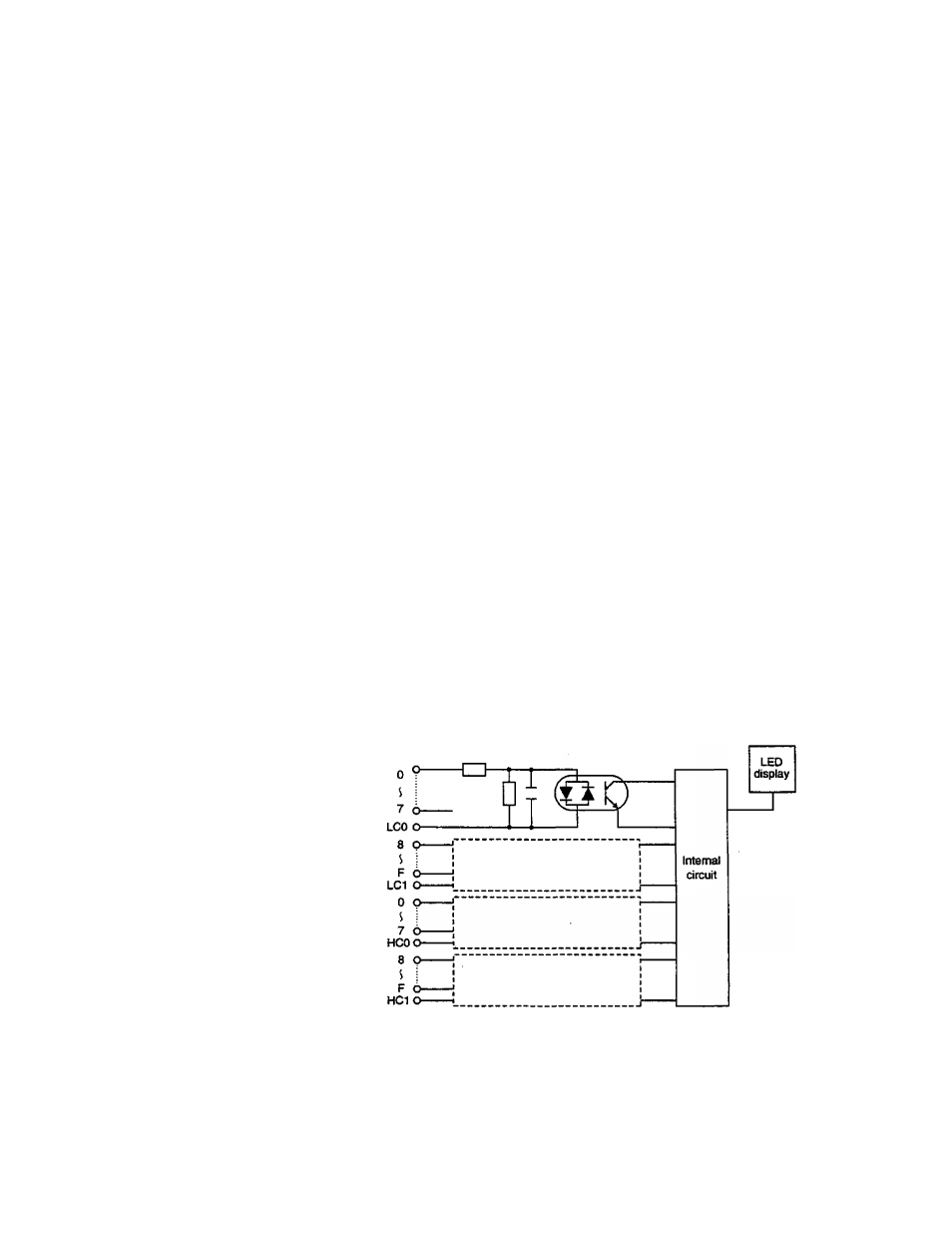

Internal circuit
DI334
DI334H
DC input
Current sinking/sourdng
32 points. 2-word input (X 2 W)
Photo-coupler
12to24Vdc
10 to 26.4 Vdc
10 mA (at 24 Vdc)
2.4 KQ (at 24 Vdc)
9.6V
3.5V
10 ms or less
15 ms or less
1 ms or less
1.5 ms or less
LED display for all points, lit at ON, internal logic side
38-pin removable tenninal block, M3.5
4 (insulated between commons)
8 points/common
No Polarity
See NOTE on the next pate
5 Vdc, 100 mA or less
10 MQ or more (500 Vdc)
1500 Vac, 1 minute (between commons, between
internal and external circuits)
420g
28
