2. Specification
32-point AC output
Type
Category
No. of output points
Insulating method
Rated load voltage
Range of load voltage
Max. load current
Voltage drop at ON
Leakage current at OFF
Min. load current
Max. inrush current
Delay
OFF —ON
ON — OFF
Output signal display
Module status display
External connection
No. of commons
No. of output points
per common
Derating condition
Internal current
consumption
Insulation resistance
Withstand voltage
Built-in fuse
Surge suppressor
Weight

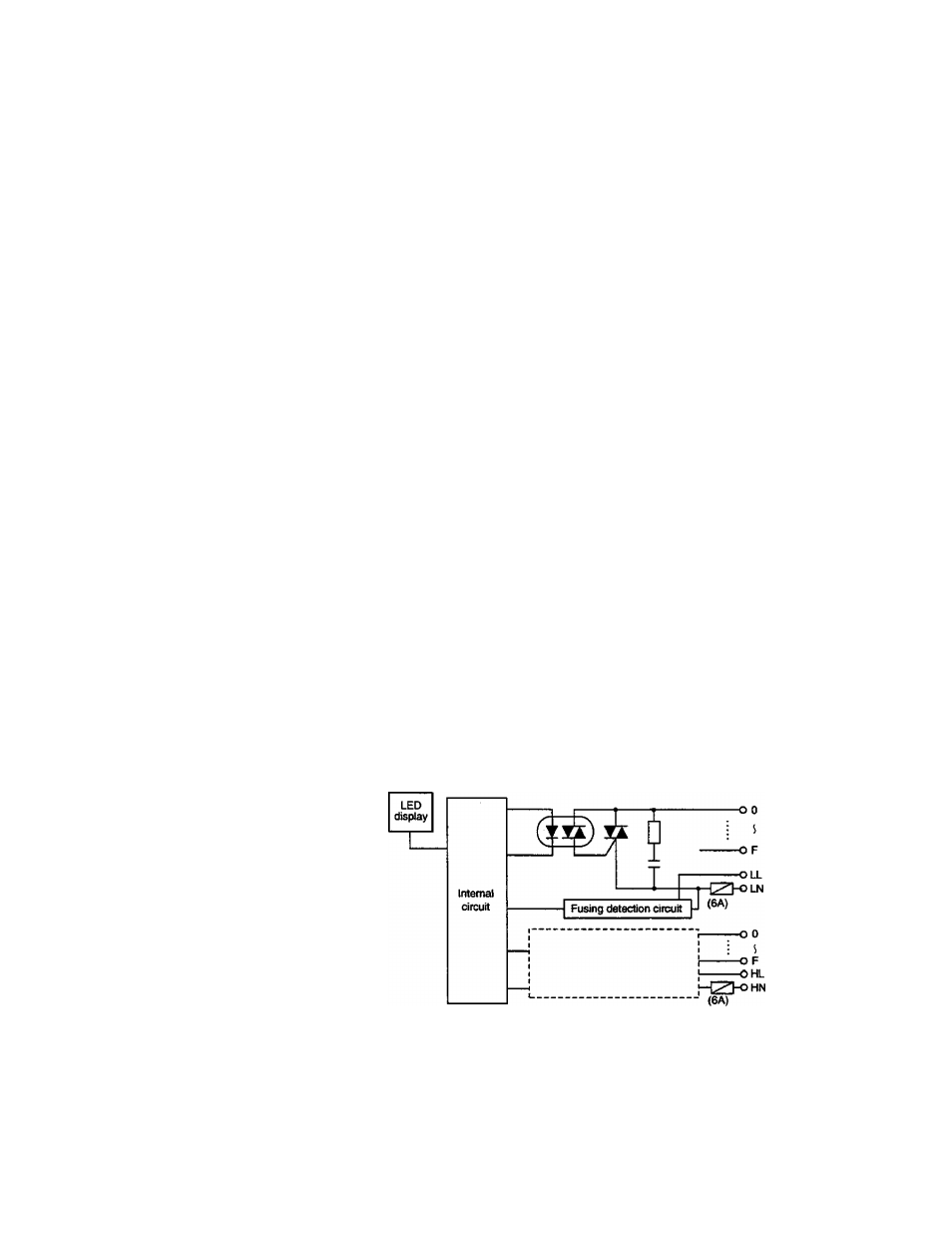

Internal circuit
AC364
Triac output
32 points, 2-word output (Y 2 W)
Photo-coupler
100 to 240 Vac (50/60 Hz)
24 to 264 Vac (47 to 63 Hz)
0.5 A/point, 3.2 A/common, 5 A/modute
1.5 V or less
0.8 mA or less (at 100 Vac, 50 Hz)
1.6 mA or less (at 200 Vac, 50 Hz)
100 mA (24 Vac), 50 mA (100 to 240 Vac)
20 A/20 ms (points and common)
1 ms or less
1 ms+1^cycle or less
LED display for all points, lit at ON, internal logic side
Fusing display LED (FL, FH), lit at fusing
38-pin removable terminal block, M3.5
2 (insulated between commons)
16 points per common
None
5 Vdc, 800 mA or less
10 MQ or less (500 Vdc)
1500 Vac, 1 minute (between commons, between
internal and external circuits)
6 A/commonX2
CR snu№er circuit
540g
