2. Specification
16-point AC output
Type
Category
No. of output points
Insulating rpethod
Rated load voltage
Range of load voltage
Max. load current
Voltage drop at ON
Leakage current at OFF
Min. load current
Max. innjsh current
Delay
OFF — ON
ON OFF
Output signal display
Module status di^lay
External connection
No. of commons
No. of output points
per common
Derating condition
Internal current
consumption
insulation resistance
Withstand voltage
Built-in fuse
Surge suppressor
Weight

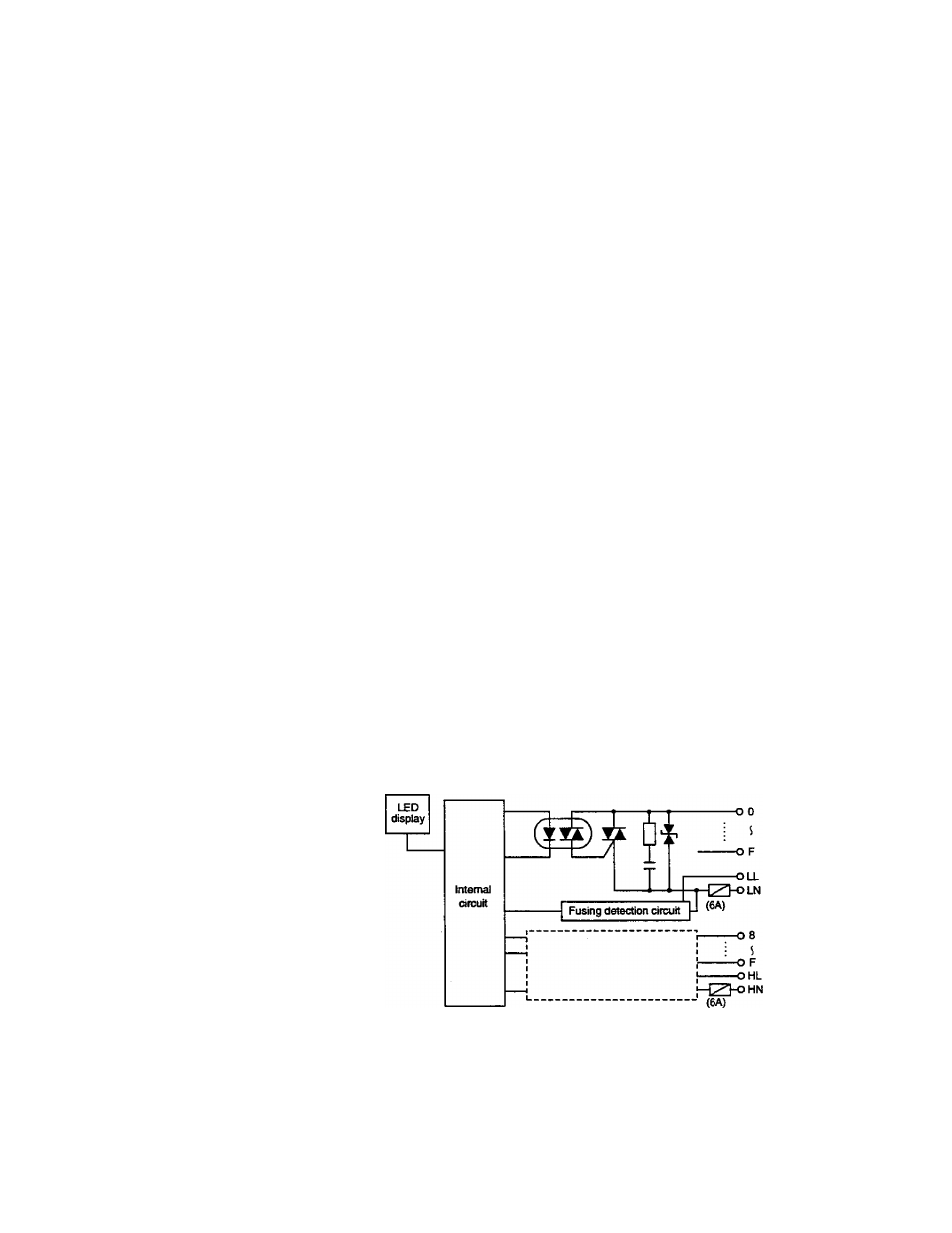

Internal circuit
AC363
Triac output
16 points, 1-word output (Y 1 W)
Photo-coupler
100 to 240 Vac (50/60 Hz)
24 to 264 Vac (47 to 63 Hz)
2 A/points, 5 A/common
1.5 V or less
1.0 mA or less (at 100 Vac, 50 Hz)
2.4 mA or less (at 200 Vac, 60 Hz)
100 mA (24 Vac), 50 mA (100 to 240 Vac)
20 A/20 ms (point), 40 A/20 ms (common)
1 ms or less
1 ms+1/2cycle or less
LED di^lay for all points, iit at ON, interna) logic side
Fusing display LED (FL, FH), lit at fusing
20-pln removable terminal block, M3.5
2 (insulated between commons)
8 points per common
See NOTE on die next page
5 Vdc, 530 mA or less
l O M Q o r less (500 Vdc)
1500 Vac, 1 minute (between commons between
interna) and external circuits)
6 A/common X2
CR snubber circuit, varistor
500g
40
PROSEC T3
