Point dc output, Specification – Toshiba Programmable Controller PROSEC T3 User Manual
Page 46
Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".
2. Specification
64-point DC output
Type
Category
Output type
No. of output points
Insulating method
Rated input voltage
Range of load voltage
Max. load current
Voltage drop at ON
Leakage current at OFF
Delay
OFF - ON
ON — OFF
Output signal display
Module status display
Externa! connection
No. of commons
No. of output points
per common
Common polarity
Derating condition
Intemai
current
consumption
insulation resistance
Withstand voltage
Built-in fuse
Surge suppressor
Weight

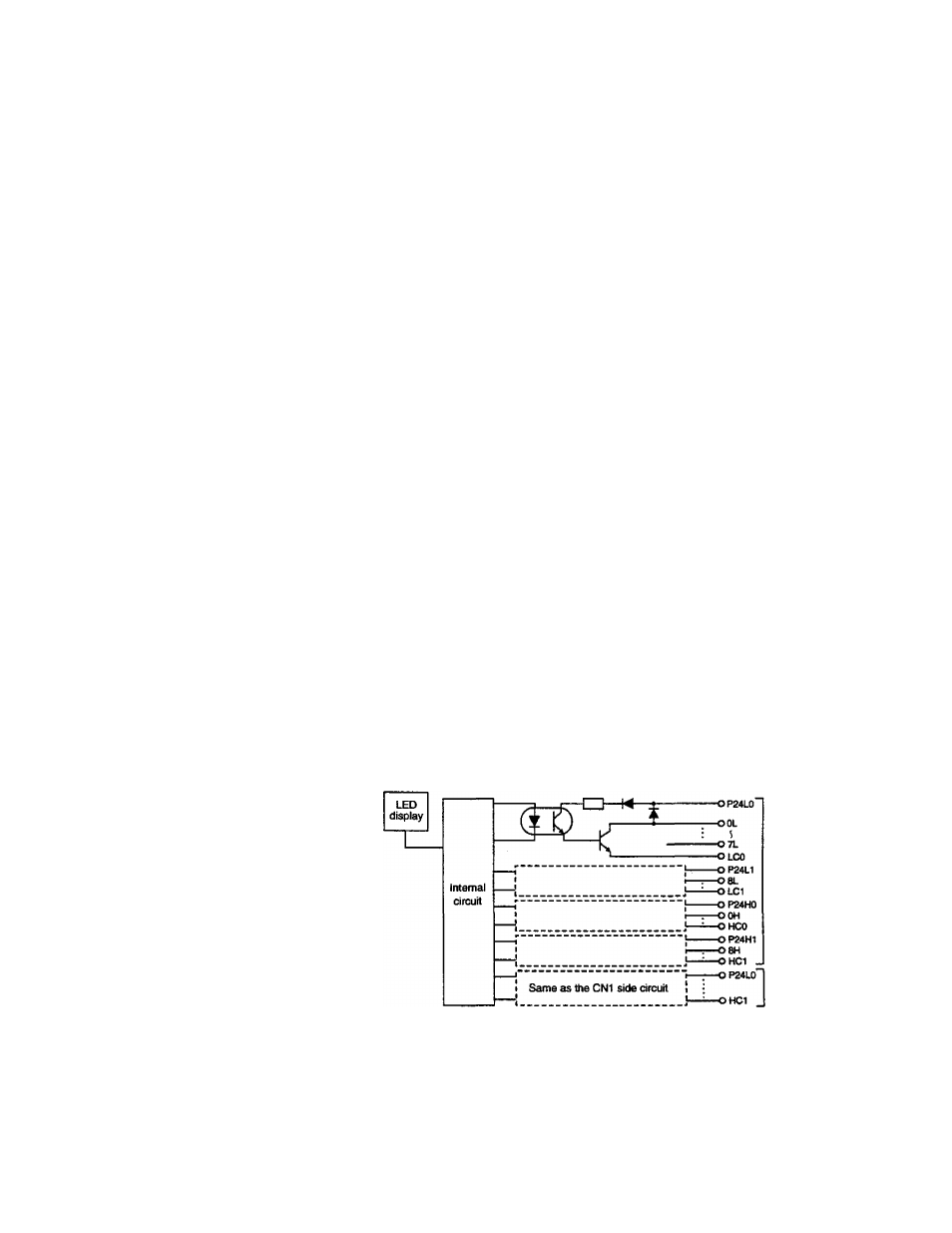

Intemai circuit
D0335
Transistor output
Current sinking
64 points, 4-word output (Y 4 W)
Photo-coupler
5 Vdc/12 to 24 Vdc
4.5 to 9.5 Vdc/9-6 to 26.4 Vdc
0.1 A/point (9.6 to 26.4 Vdc)
0.05 A/point (4.5 to 9.5 Vdc)
0.4 V or less
0.1 mA or less (at 24 Vdc)
1 ms or less
1 ms or less
LED display for ali points, lit at ON, intemai logic side
None
40-pin connectorX2
8 (insulated between commons)
8 points per common
negative (-) polarity
None
5 Vdc, 400 mA or less
10 MO or less (500 Vdc)
1500 Vac, 1 minute
(between intemai and external circuits)
None
Diode
550g (including connectors)
CN1
CN2
38
PROSEC T3
