2. Specification
32-point relay output Type
Category
Output
No. of output points
Insulating method
Rated toad voltage
Range of load voltage
Max. load current
Contact ON resistance
Leakage current at OFF
Min. load current
Delay
OFF ON
ON — OFF
Output signal display
Module status display
External connection
No. of commons
No. of output points
per common
Internal current
consumption
External
power
for relay
Rated voltage
Rated current
Voltage range
Mechanical life
Electrical contact life
insulation resistance
Withstand voltage
Built-in fuse
Weight

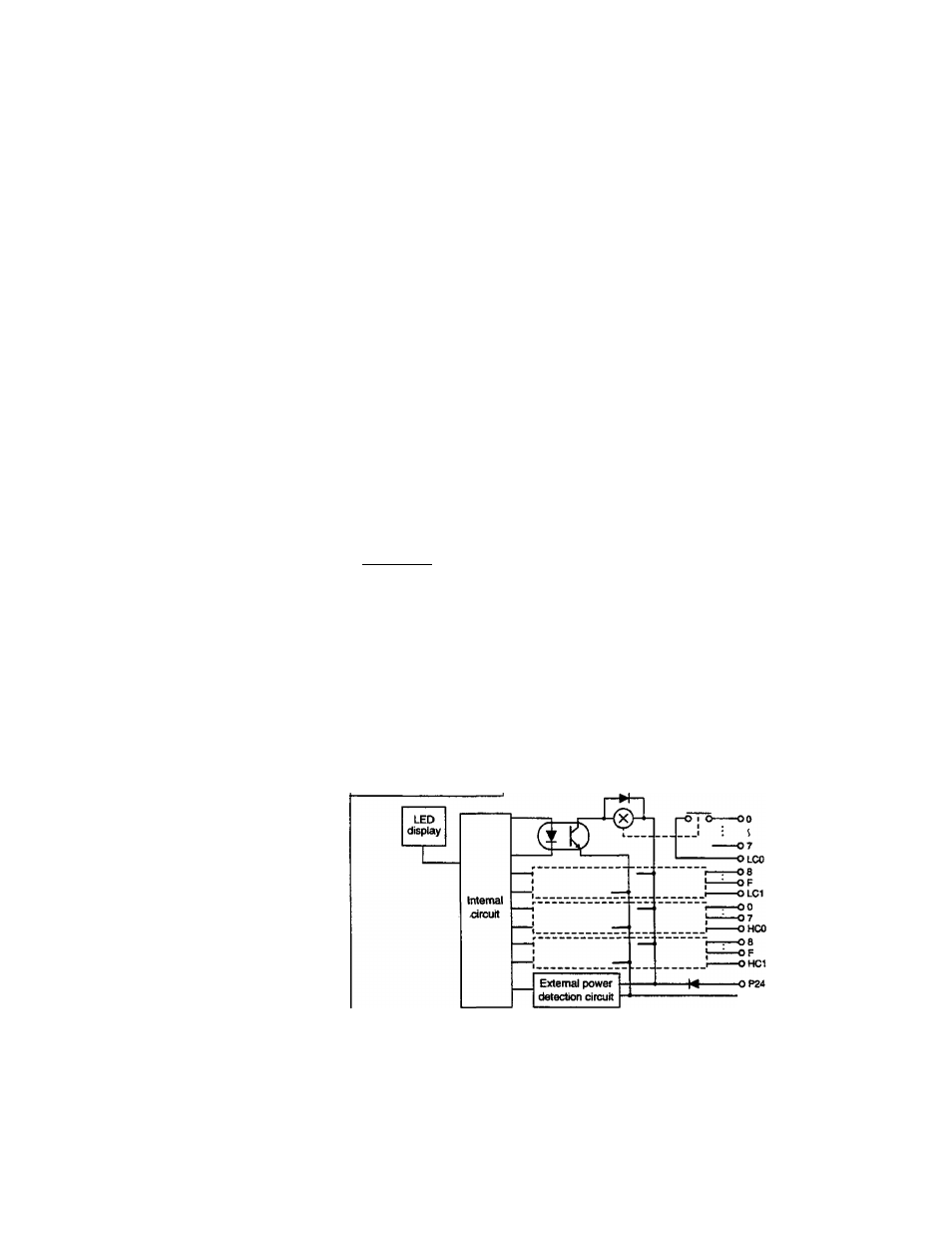

Internal drcuit
R0364
Electromechanical relay output
NO-contact
32 points, 2-word output (Y 2 W)
Photo-coupler
240 Vac/24 Vdc
Up to 264 Vac/125 Vdc
2 A/point (resistive load), 5 A/common
50 mQ or less (initial value)
None
5 Vdc, 10 mA (50 mW or more)
10 ms or less
10 ms or less
LED display for all points, lit at ON, internal logic side
^normal external power suF^ly display LED (F),
tit at abnormal state
38-pin removable terminal block, M3.5
4 (insulated between commons)
8 points per common
5 Vdc, 170 mA or less
24 Vdc
300 mA (24 Vdc, at all points ON)
21.6 to 26.4 Vdc
20 million times or more
See the next page
10 MQ or more (500 Vdc)
1500 Vac, 1 minute (between commons, between
internal and external circuits) _____
None
51 Og
OCOM
44
