2. Specification
32-point AC input
Type
Category
Number of input points
insulating method
Rated input voltage
Range of input voltage
Frequency
Rated input current
input impedance
Opera
tion
voltage
Delay
Min. ON voltage
Max, OFF voltage
OFF - ON
ON — OFF
Input signal display
External connection
No. of commons
No. of input points
per common
Derating condition
Internal current
consumption
insulation resistance
Withstand voltage
Weight

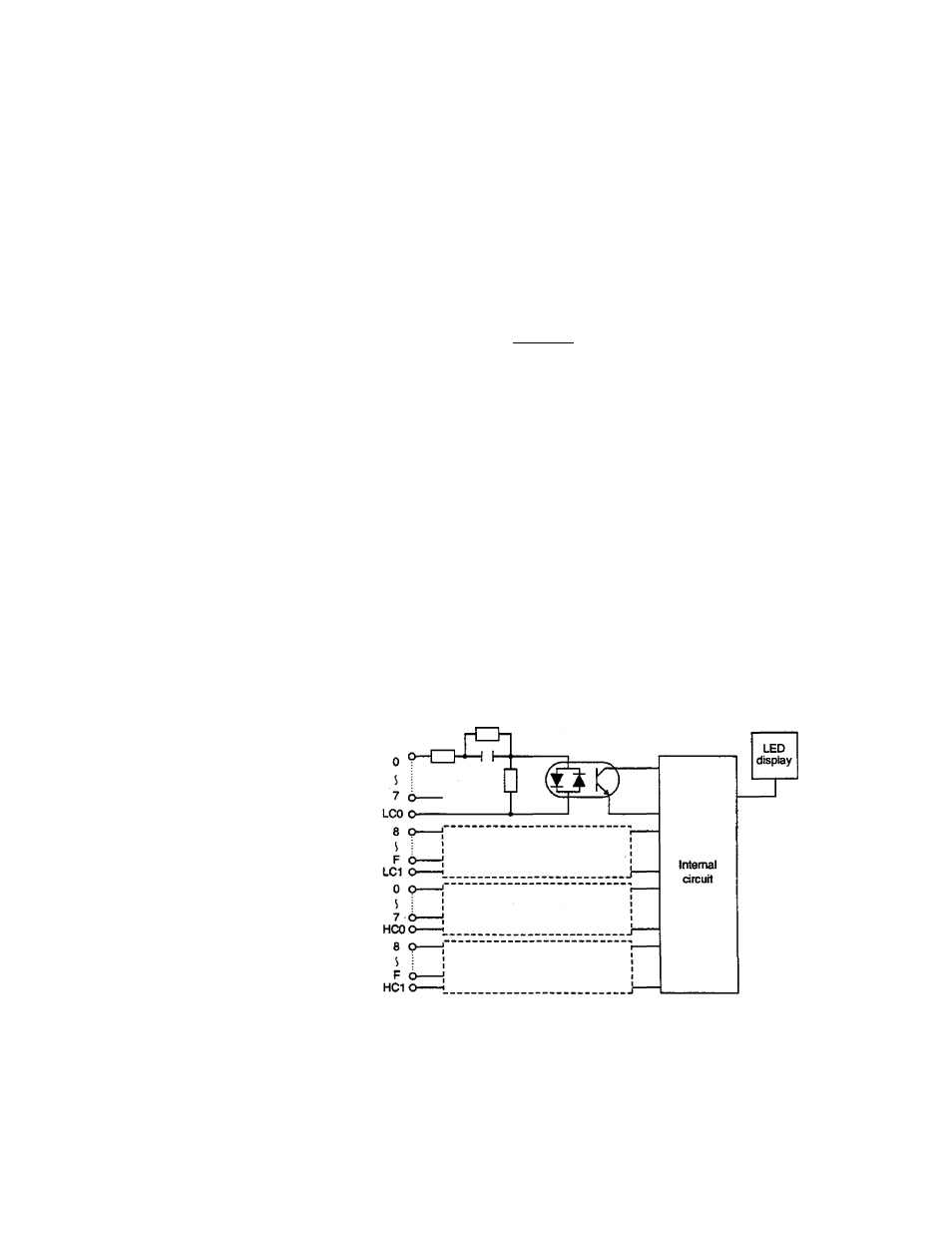

Internal circuit
IN354
IN364
AC input
32 points, 2-word input (X 2 W)
Photo-coupler
100 to 120 Vac
85 to 132 Vac
200 to 240 Vac
170 to 264 Vac
50/60Hz(47to63Hz)
10mA(at100Vac,50Hz)
10 KQ (50Hz),
8 KQ (60Hz)
70 Vac
25 Vac
10 mA (at 200 Vac, 50Hz)
22 kD (50 Hz),
18 kQ (60 Hz)
140 Vac
50 Vac
15 ms or less
15 ms or less
LED display for all points, lit at ON, internal logic side
38-pin removable terminal block, M3.5
4 (insulated between commons)
8 points per common
None
5 Vdc, 120 mA or less
10 M Q or more (500 Vdc)
1500 Vac, 1 minute (between commons, between
internal and external droiits)
480g
