2. Specification

32-point DC input

(cont'd)

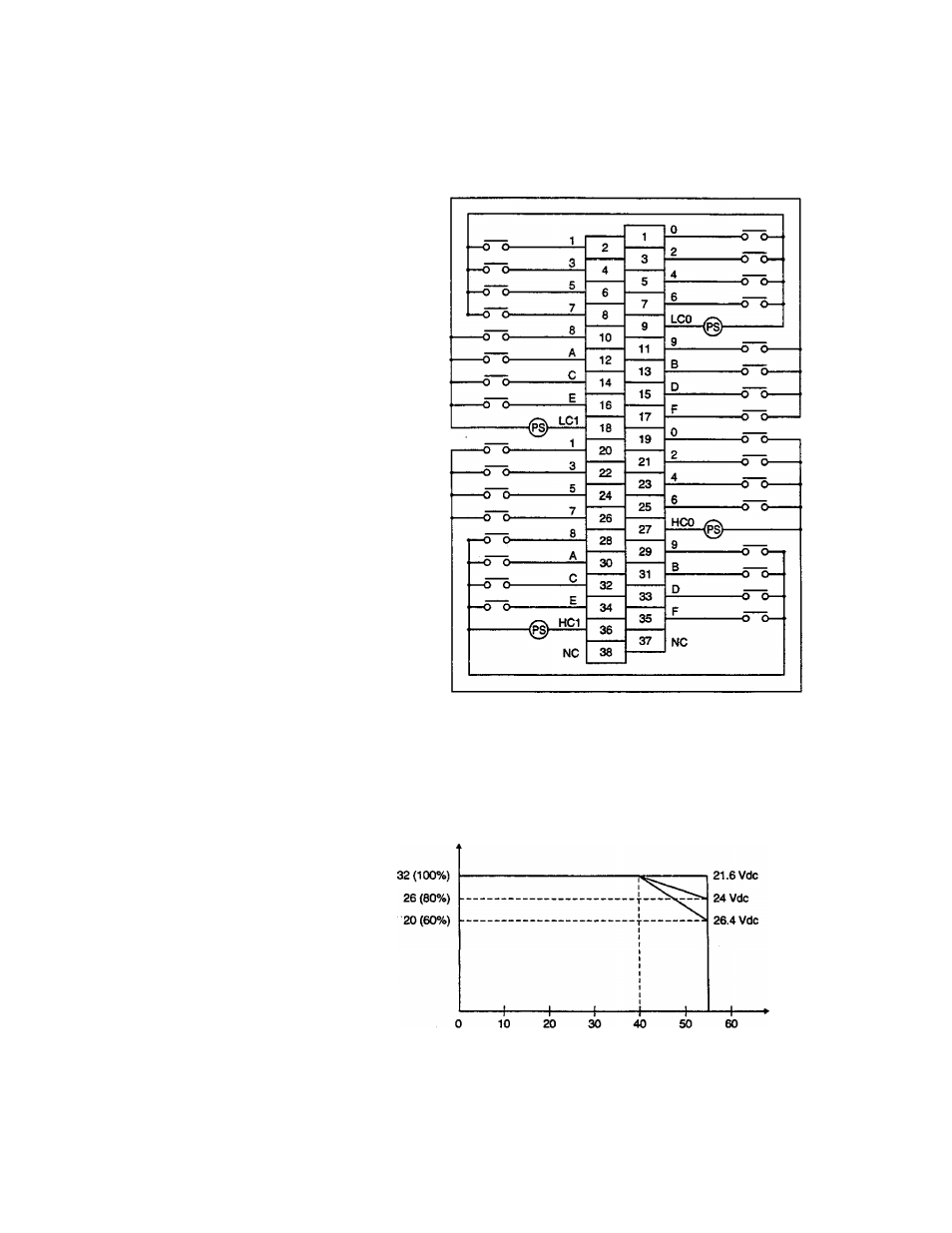

Terminal connections

—^S)— Input power "Hh" 12 to 24 VdC

supply

|^|j

NOTE

The number of simultaneous

input points will be

restricted according to the ambient temperature and

input voltage, as described in the figure below.

Number of simultaneous ON input points

Amt»ent temperature

(C)
