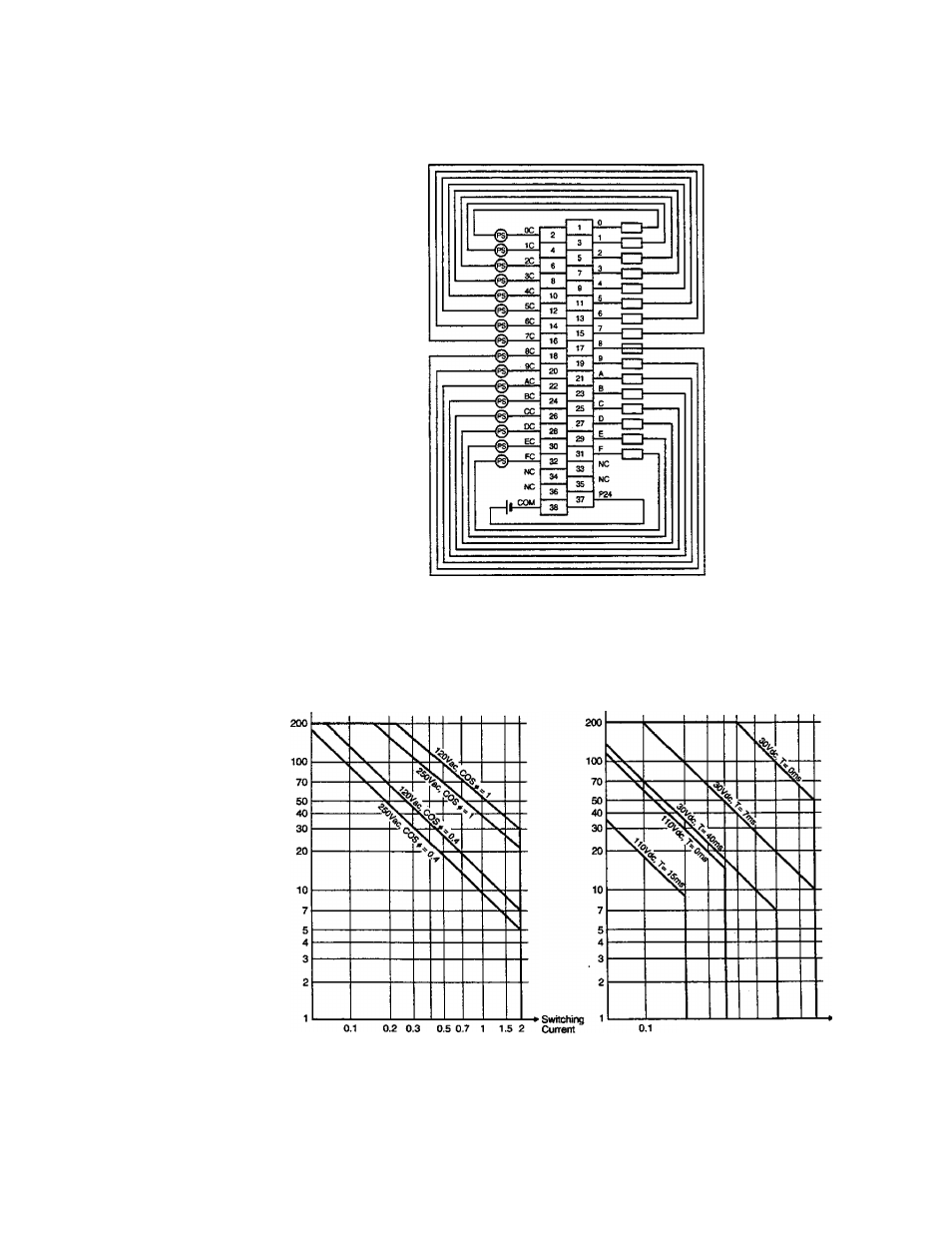

2. Specification

16-point isolated

relay output

(cont'd)

Terminal connections

Load power suppty

240Vac/24VdC

-J|_ 24Vdc for retay

' driving

NOTE The following figures indicates life curves of the output

relay. The data are based on 1800 switching times/hour.

For more frequently operation, the life of the output relay

will become shorter.

Switching life

(10,000 tiines)

AC load

Switching life

(10,000 times)

DC load

0,2 0.3

0.5 0.7

Swit^ng

1.5 2 Current
