1 connector 7, 2 connector 1, 3 connector 5 – AERCO Modulex E8 Controller (and BCM) For Modulex EXT Boilers User Manual
Page 74: 4 connector 8 => pt 1000 sensor, 5 connector 3, 6 connector 9, E8 controller and bcm for modulex ext
E8 Controller and BCM for Modulex EXT
Installation, Operation & Maintenance Manual
CHAPTER 7: E8 CONNECTOR TERMINAL ASSIGNMENTS
Page
74 of 108
AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913
OMM-0093_0A
PRI: 06/24/2013
Phone: 800-526-0288
GF-136-C

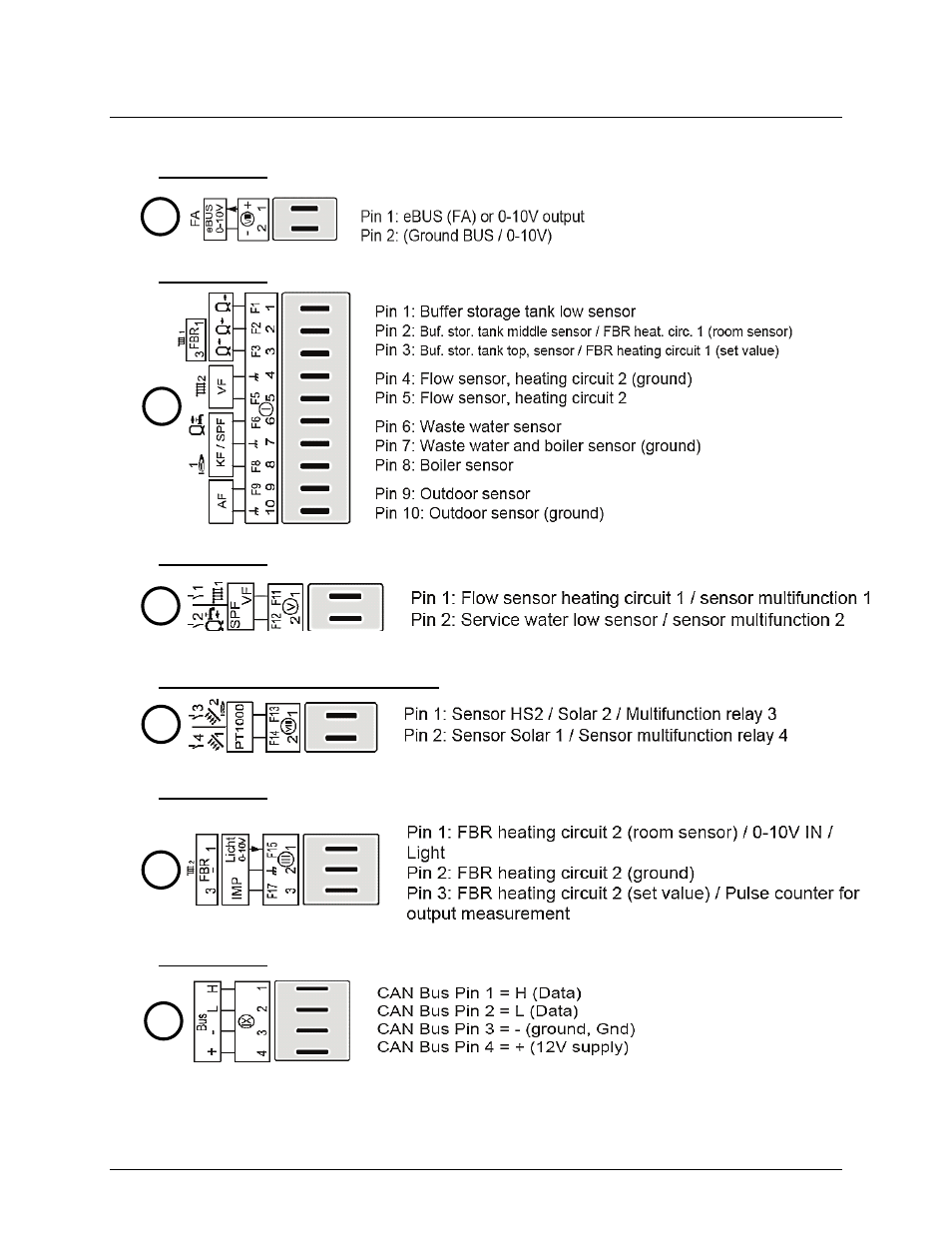

Sensor Terminal Assignments (Continued)
7.1.1 Connector 7
7.1.2 Connector 1
7.1.3 Connector 5
7.1.4 Connector 8 => PT 1000 Sensor
7.1.5 Connector 3
7.1.6 Connector 9
7
1
5
8
3
9
