Duet CO
2
Module OEM Implementation Manual
Page 98 Confidential Welch Allyn OEM Technologies
Configure\ Display\Waveform Fill - The Waveform Fill feature can be enabled by checking the
Waveform Fill menu item.
Configure\CO2 Module\Flow Rate - The CO
2
Module’s aspiration rate can be configured with
the Flow Rate menu item. The units are in milliliters per minute.

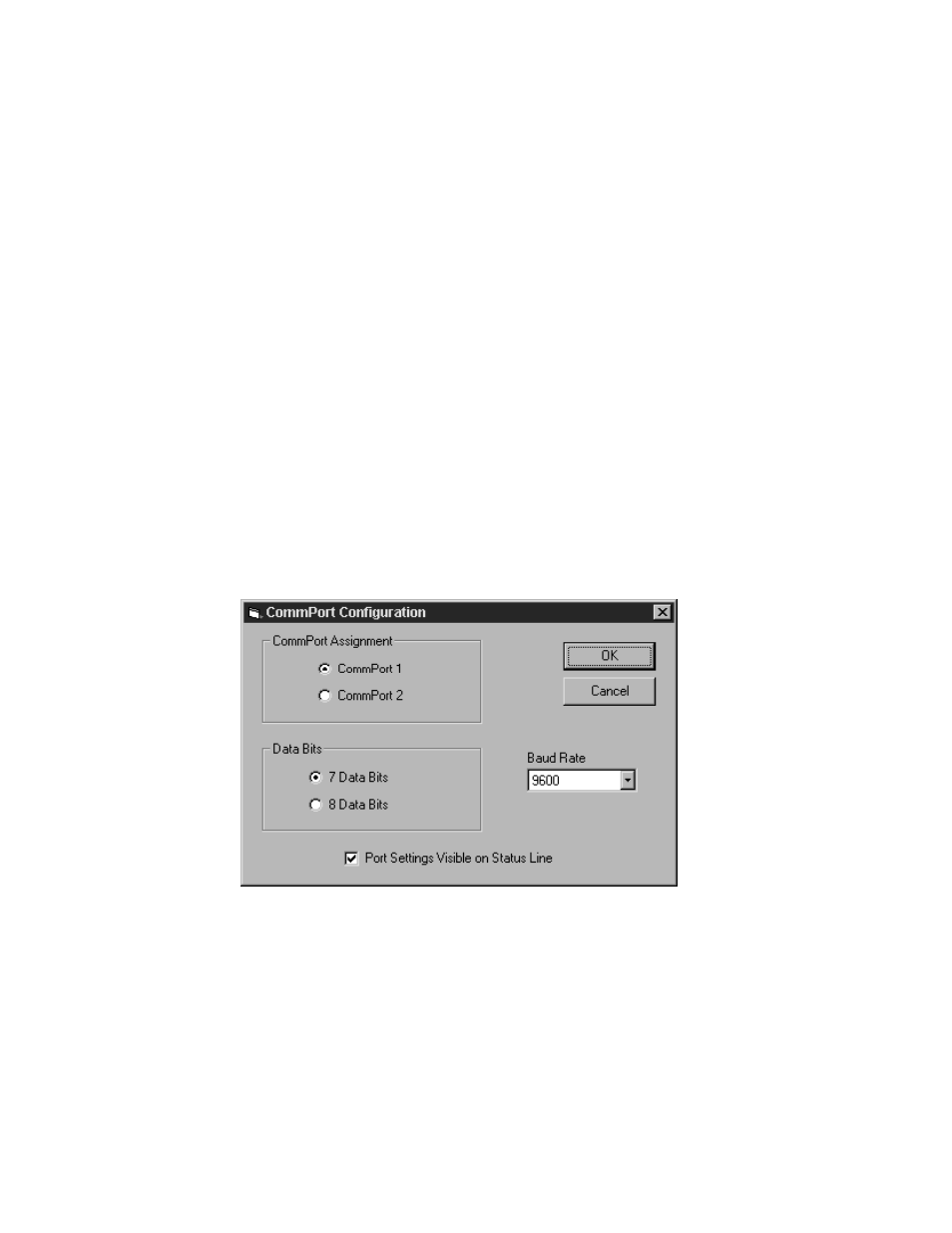

Configure\CO2 Module\CommPort - This menu item opens the following communications port
configuration screen.
Note: The CO
2
Module supplied with the Evaluation System will be pre configured to match the
PC software’s default settings (Data Bits and Baud Rate), which are shown above. The
CommPort Assignment must be set to match the PC’s CommPort connected to the CO
2
Module
during initial setup.
The Help\About menu item displays the software title and version, copyright and a disclaimer.
The Help\Content menu item displays help information.
