Targeting the pedestals
97
5. Select the relevant target from the list and touch OK.
The Fusion pedestal will drive itself across the target while optically scanning
the floor to determine the datum target position. When the pedestal stops
moving, a dialog appears, either confirming that targeting was completed
successfully or that targeting failed.
6. Touch OK to clear the alert dialog and if targeting failed, repeat steps 1
through 5.
SP-2000 pedestal
1. Select the camera to be targeted on the touch screen or the control panel.
2. Touch Opts and use Rotate Wheels and Straighten Wheels with the XY/
Height joystick on the control panel to position the pedestal so that it is over
the target as shown in Fig. 66.
NOTE: Make sure that the pedestal stops in the position shown in Fig. 65 when
it finishes targeting. The correct end position is different for 3-line and
L-shaped targets. If the pedestal stops before reaching the correct end
position (even if the pop-up window indicates targeting was successful),
repeat steps 1 through 5.

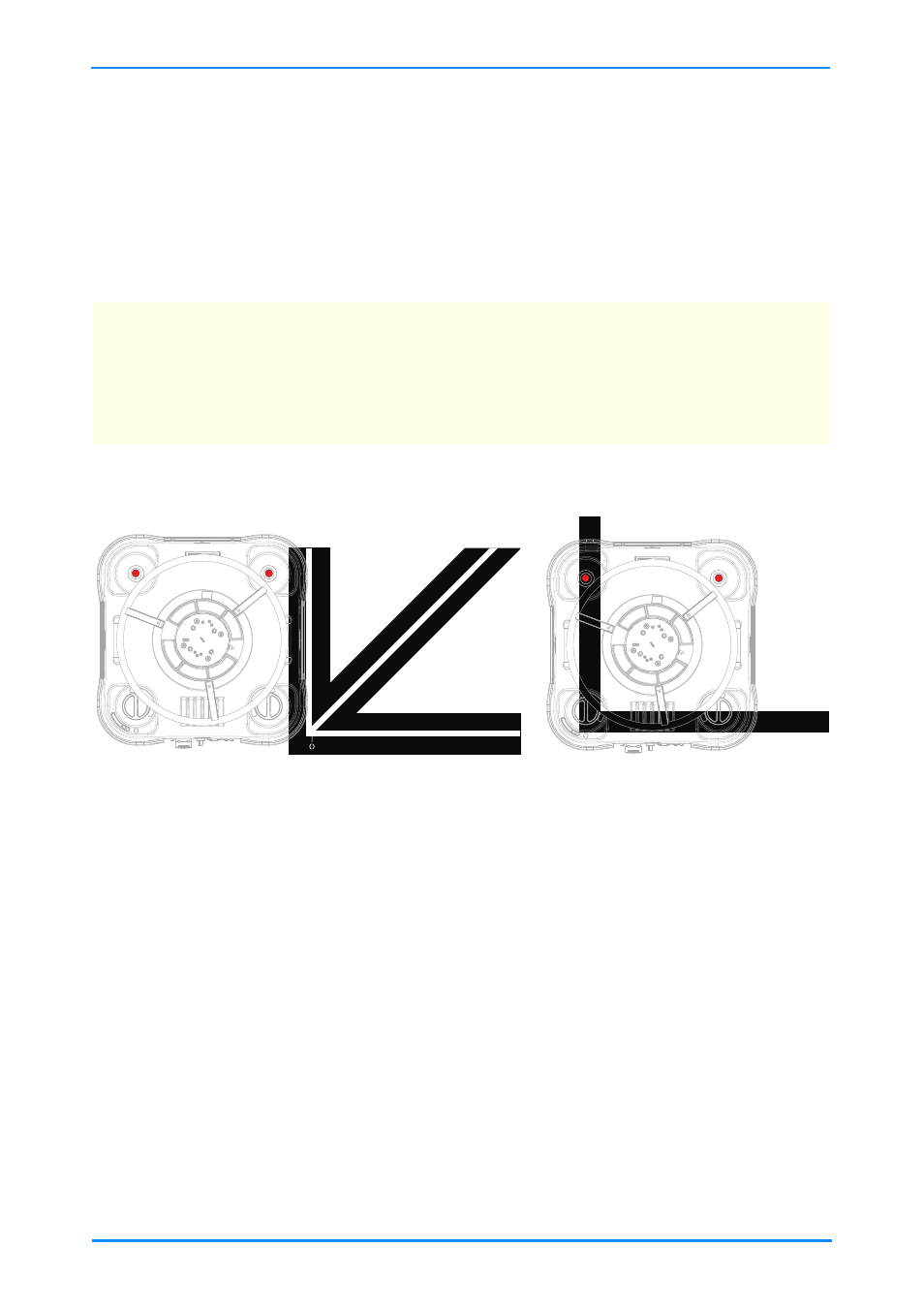

Fig. 65 Fusion pedestal correct positioning after targeting
Pedestal with 3-line
target - Finishing position
Pedestal with L-shaped
target - Finishing position
