CCU Interfaces
55
Canon BU-45, BU-46, BU-50 CCU controls
Auto shooting mode Touch Auto Shooting Mode to select auto or manual
shooting mode. In Auto shooting mode, the controls for
Iris setting, Shutter speed and Camera gain are disabled.
Aux 1, 2, 3, 4 Touch Aux 1, Aux 2, Aux 3, Aux 4 to enable or disable the
respective auxiliary outputs at the camera. Refer to the
camera documentation for instructions on using these
outputs to control external devices.

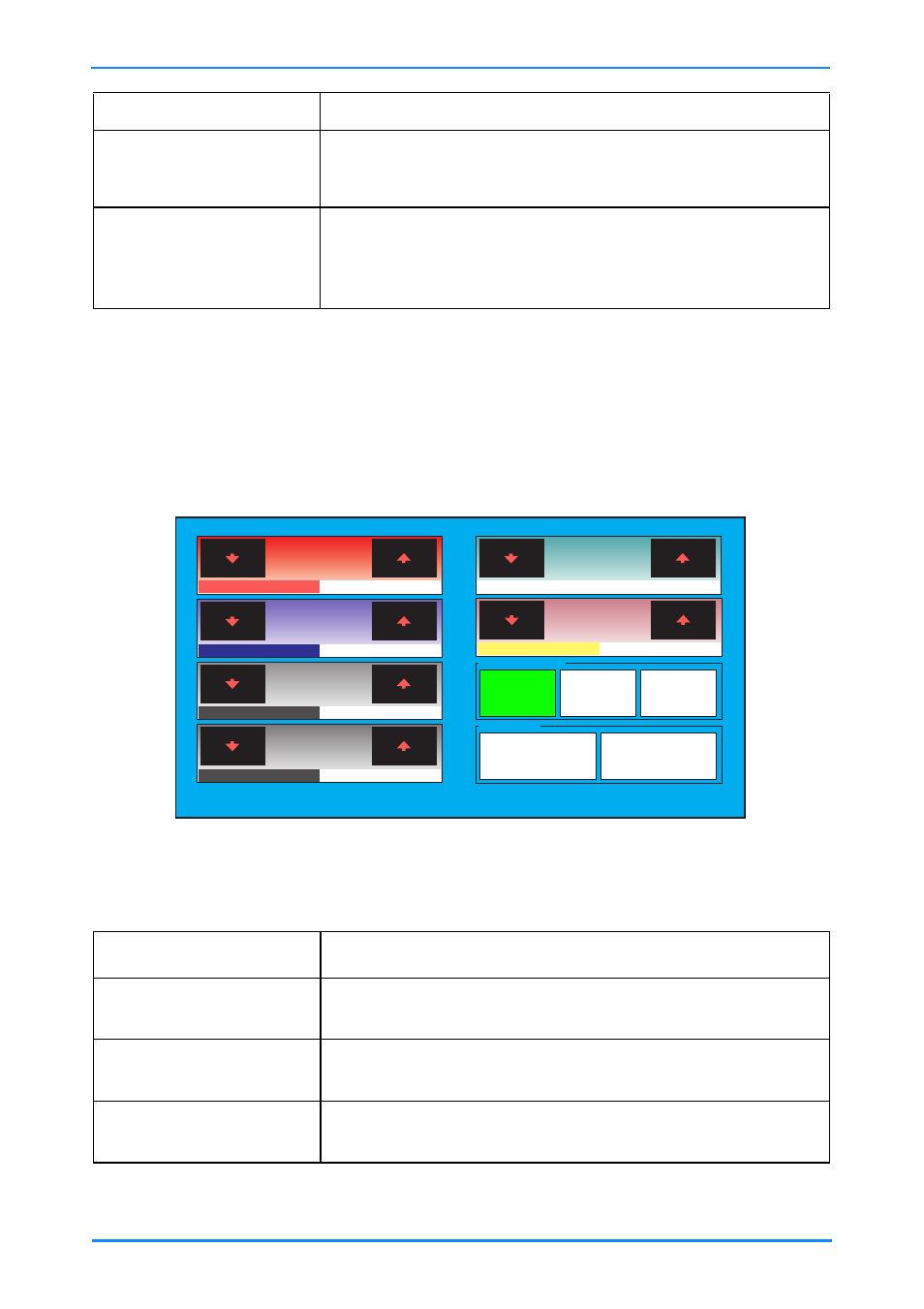

Fig. 22 Canon BU-45, BU-46, BU-50 CCU controls
Menu Button Description
Red gain Touch the up/down arrow to adjust the gain of the
camera’s red channel.
Blue gain Touch the up/down arrow to adjust the gain of the
camera’s blue channel.
M ped Touch the up/down arrow to adjust the camera’s master
pedestal level.
Menu Button Description
Red Gain Camera Gain
Blue Gain Genlock Phase
M Ped
Iris
50 0
50 50
50
50
ND Off ND 1/6 ND 1/32
1/60 or 1/50 1/100
Neutral Density Filter
Shutter Speed
