Admin Preferences
Version 3.5 83

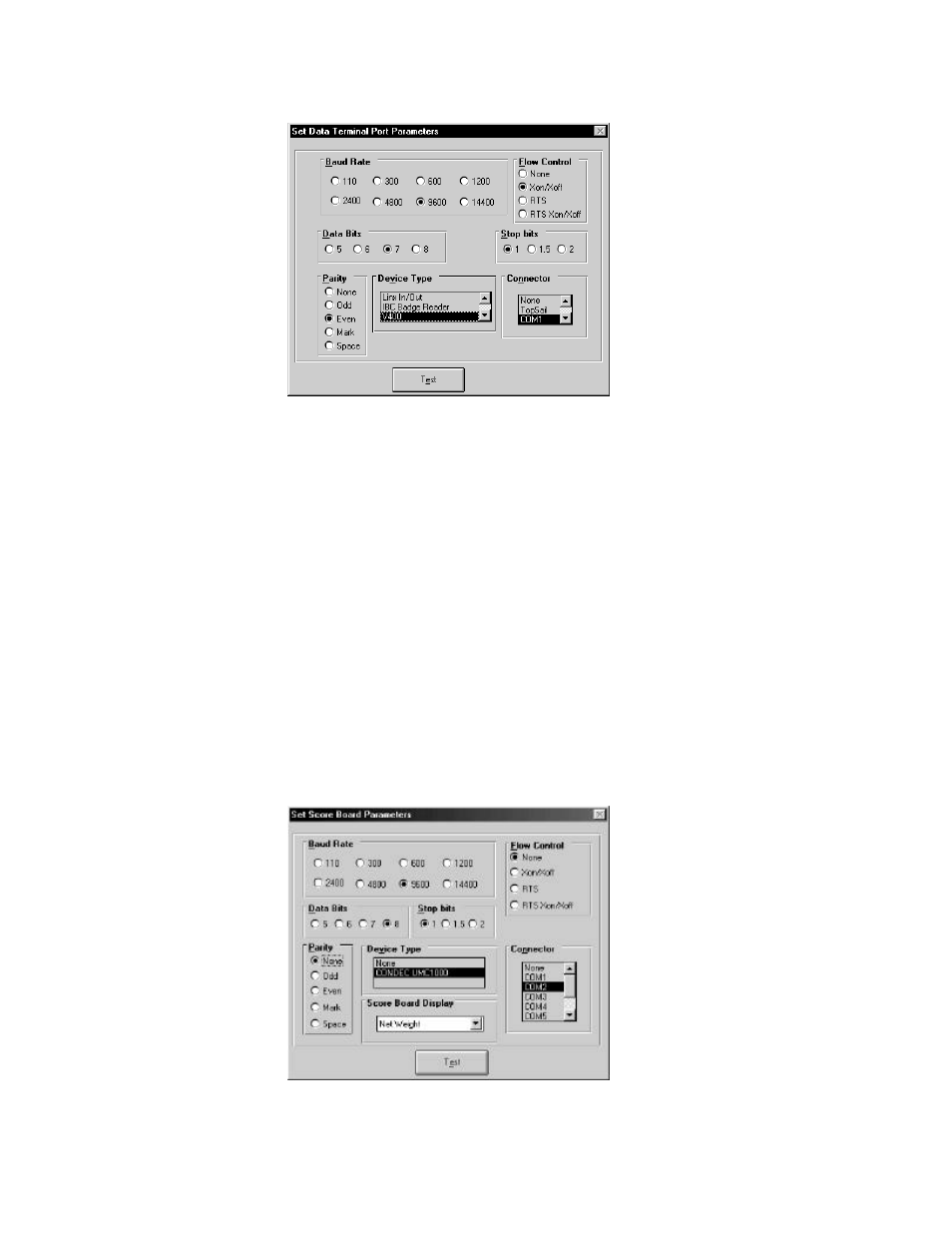

Figure 62. Set Data Terminal Port Parameters
The data terminal you are interfacing with the computer should be listed under Connection .
To send data to the device and view what is being sent back to the computer, click the Test button.
When testing is complete, click the Done button.
Score Board Port
Use the Score Board Port to send the Net Weight or Charge of a transaction to a Condec UMC1000 score
board. This port can also be used to open a cash drawer with a serial interface.
Score Board Interface
To send scale data to a score board display, select Admin | Preferences | Score Board Port from the main
menu. The Set Score Board Parameters table appears.
Figure 63. Set Score Board Parameters
