GENERAL INSTALLATION
The CW-250 SYSTEM for 1-inch glazing
is designed to accomodate glass or
panels with thickness ranging from
.969 to 1.031 inches. 1/4" spandrel
glass or panels may be .219 to .281
inches in thickness.
All Oldcastle BuildingEnvelope Performance Tests are
based on the use of glass as the infill glazing material. If materials
other than glass are to be installed in this system, it is the responsibility
of the owner, architect, and installer to verify compatibility of the glazing
materials to be used.

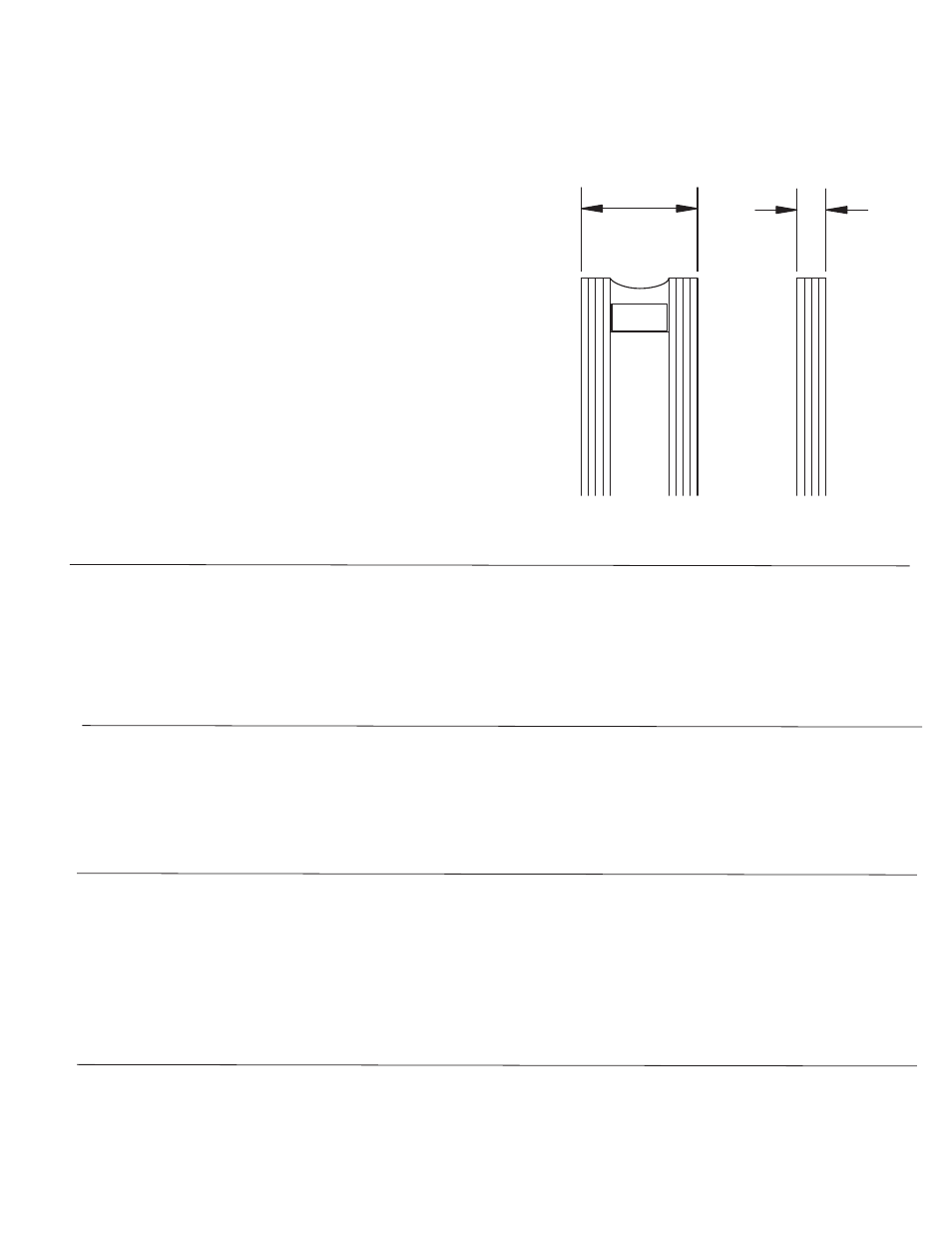

.969-1.031 .219-.281
For Thermal Expansion considerations, pressure plates are designed for a maximum length of 15'-3", and are available
from Oldcastle BuildingEnvelope in 12'-3". Butt joints are used between pressure plates in long runs. See Typical Pressure
plate installation on sheet 18. Please note that long face caps may span across a pressure plate butt joint.
Accessory parts required for the CW-250 SYSTEM are indicated on sheet 69, cross-referenced to
their Order Numbers, with available quantities and description.
