Oldcastle BuildingEnvelope CW-250 - Manual (Page 51)

GLAZING INSTRUCTIONS
51 February 2012
C W - 2 5 0 C U R T A I N W A L L I N S T A L L A T I O N M A N U A L
Web Address: www.oldcastlebe.com
Phone: 1-866-OLDCASTLE (653-2278)
CW250-FP-19

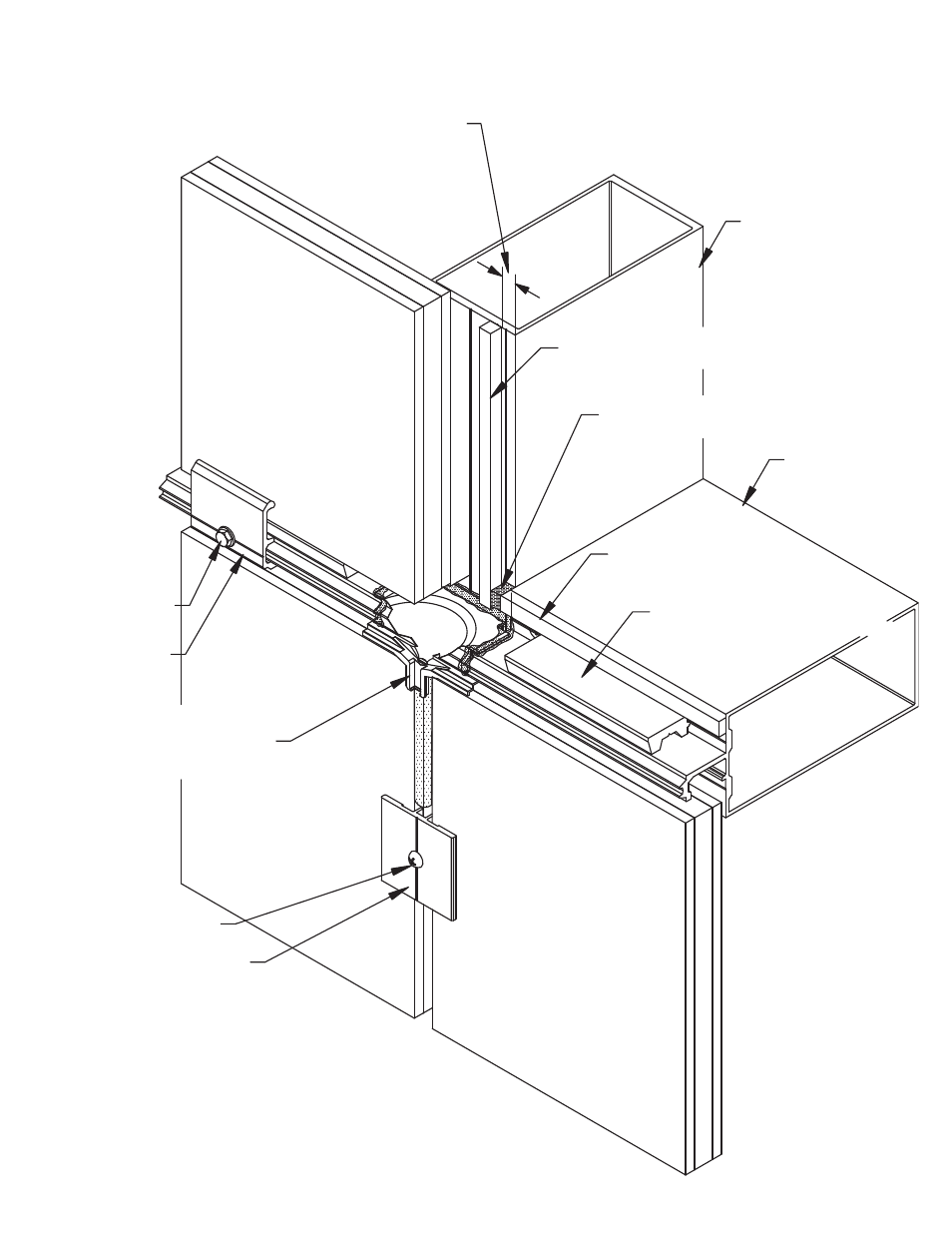

TEMP. GLAZING RETAINER
FS-214
(1) PER RETAINER
CW-9 SETTING BLOCK
REFERENCE SHEET 73
FOR LOAD CHART/LOCATION
FS-322
(1) PER RETAINER
CW250-FP-4
TEMP. GLAZING
RETAINER
V2110 FOAM SPACER
(5/16" X 5/16" DSA TAPE)
CW-1636 FOAM GASKET
(5/16" X 3/8" SSA)
CW-1
CW-7
FILL VOID WHEN APPLYING
STRUCTURAL SILICONE SEAL
NOTE: WIDTH OF STRUCTURAL SILICONE JOINT
AND PLACEMENT OF V2110 TO BE DETERMINED
BY PROJECT REQUIREMENTS.
CW250-FP-164 BRIDGE
REF. SHEETS 48 THRU 50
FOR INSTALLATION.
